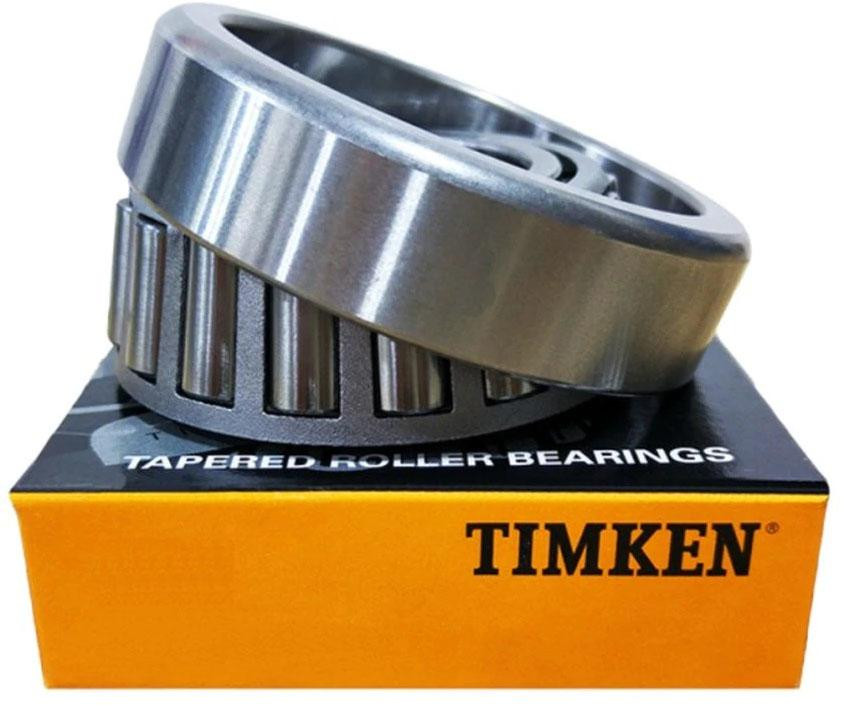

Timken® Taper Set SET23

Click this link for an interactive, multi-vehicle, bearing & seal application database

Click this link for the all encompassing Timken interactive dimensional database

Timken offers multiple hands-on videos created to assist you in the installation & disassembly of multiple Timken products.

Make sure you apply the correct torque and measure the "bench end play" before completing any taper bearing installation.

For more detailed bearing nomenclature with regards to prefixes & suffixes, refer to pages iv ~ xi in the attached Timken 699 catalog .pdf

For detailed information regarding factory pre-set "bench end plays" on assemblies, please feel free to call or email for availability.

Unmachined "green" spacer rings, if available, may be purchased to create custom assemblies, please feel free to call or email for availability.

Timken Taper Catalog 699

Timken Complete Dimensional Catalog

Timken Bearing Damage Explanation & Causes

Timken stronger by design

Bearing components Multiple component assembly

Bearing tolerance Standard (-2)

Set contents LM104949-E (x2) / LM104911 (x2) / Spacer (Cone not sold separately)

Shown in catalog No
