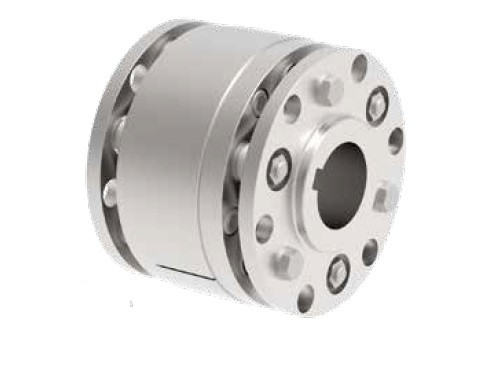

SXCS228-6 Series Lovejoy® Close Coupled Disc Coupling Mounting Ring SXCS228-6-MOUNTING RING

Timken

$1,001.66

(No reviews yet) Write a Review

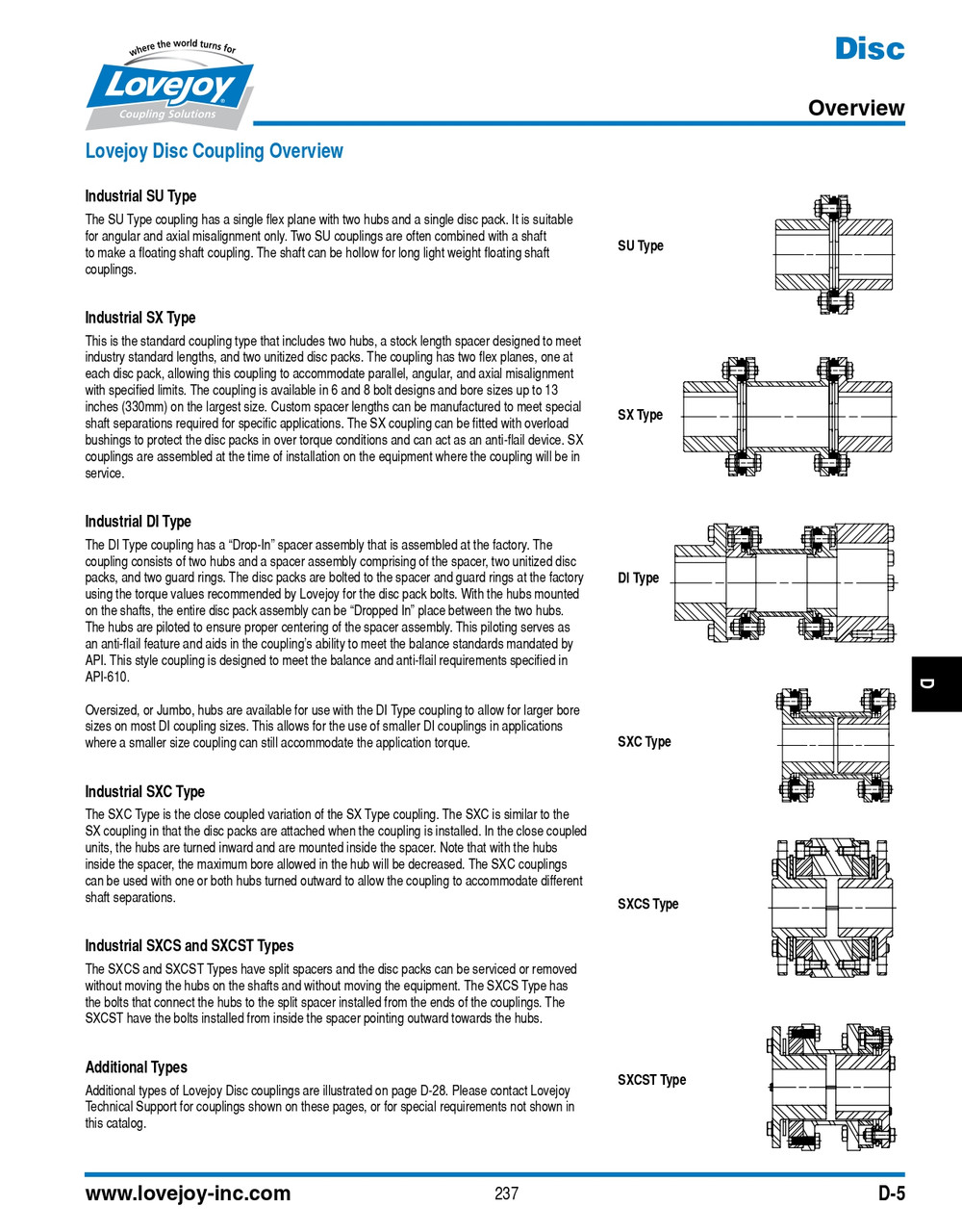

The SXC Type is the close coupled variation of the SX Type coupling.

The SXC is similar to the SX coupling in that the disc packs are attached when the coupling is installed.

In the close coupled units, the hubs are turned inward and are mounted inside the spacer.

Note that with the hubs inside the spacer, the maximum bore allowed in the hub will be decreased.

The SXC couplings can be used with one or both hubs turned outward to allow the coupling to accommodate different shaft separations.

Note: The SXC Type uses the same disc pack kits and spacers as the SX Type.

Timken Lovejoy Master Catalog

SXCS Disc Coupling Installation Guide

Series SXCS228-6

Coupling type Disc coupler
