Super Power Wedge® 5 Rib Banded V-Belt R3V375-5

Overview
Reviews

Product Description

Super Power-Wedge® band (formerly Wedge-Band®) is the banded version of the hard-working Super Power-Wedge® v-belt.

The specially compounded wrapped construction is ideal for clutching operations.

Super Power-Wedge® band is oil and heat resistant, static dissipating, and reduces the ability for a belt to turn over or jump off the drive.

Two or more Super Power-Wedge® belts are permanently joined together at the top with a reinforced tie-band.

Banded belts are ideally suited for pulsating or heavily shock loaded drives and drives with long center distances to minimize belt whip and rollover.

Super Power-Wedge® band belts combine the long life and superior performance of the Super Power-Wedge® v-belt with the stability of a banded belt.

The narrow wedge design saves space and reduces weight.

Banded belts assure that each rib is sharing the load equally to achieve the full horsepower capacity of the drive.

The reinforced band across the top greatly enhances stability by minimizing belt whip and turnover.

Smooth clutching

Space and weight saver

Oversized polyester cord provides added belt strength and stability

Cord is chemically treated for resistance to belt stretch

Tie-band is highly engineered to permanently bond multiple belts together enabling the belts to function as a single unit with even load distribution and wear

Vibration is dampened

Heavy shock loads are absorbed

For complete part number, add a hyphen followed by the number of ribs required, for example: R5V670-3

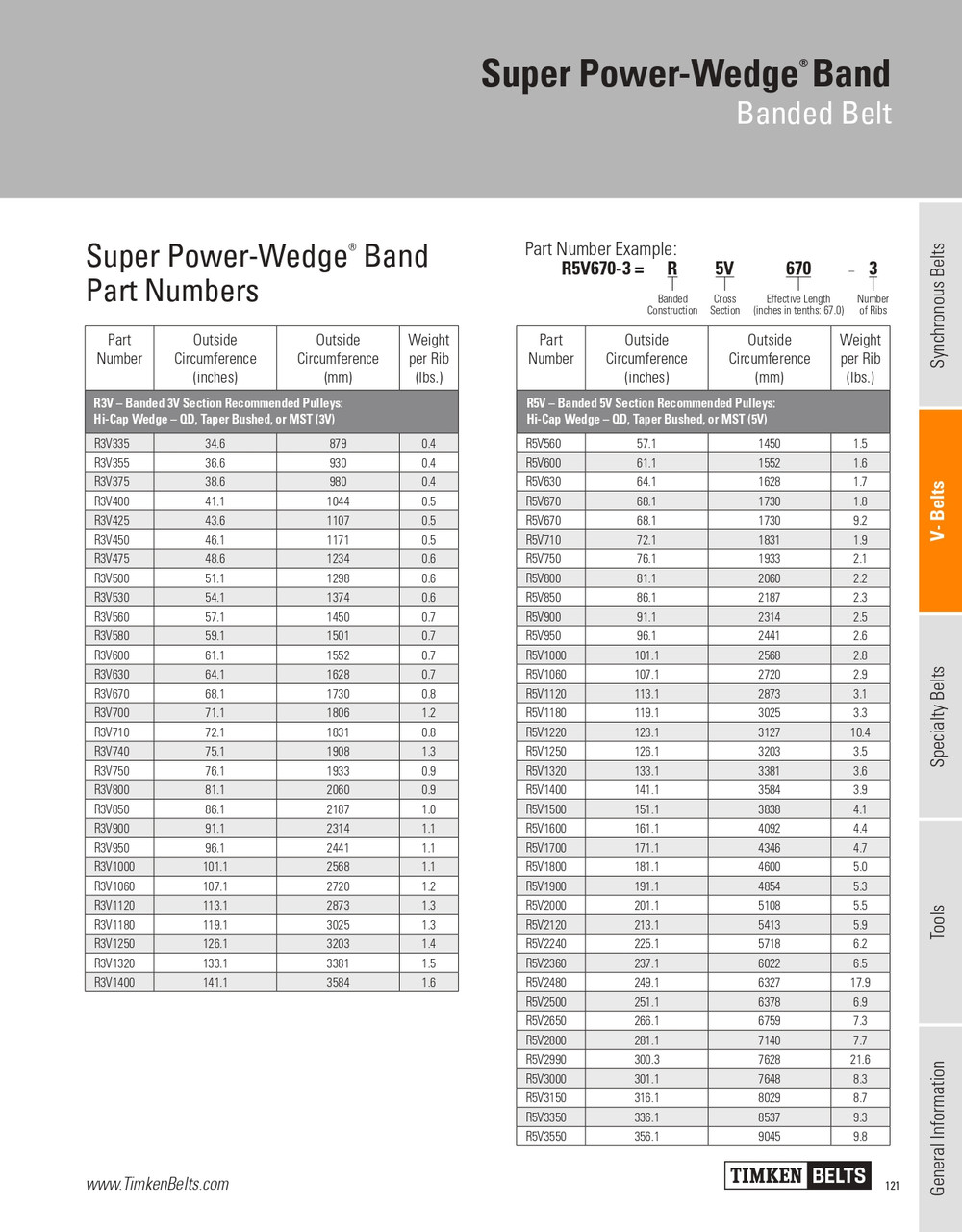

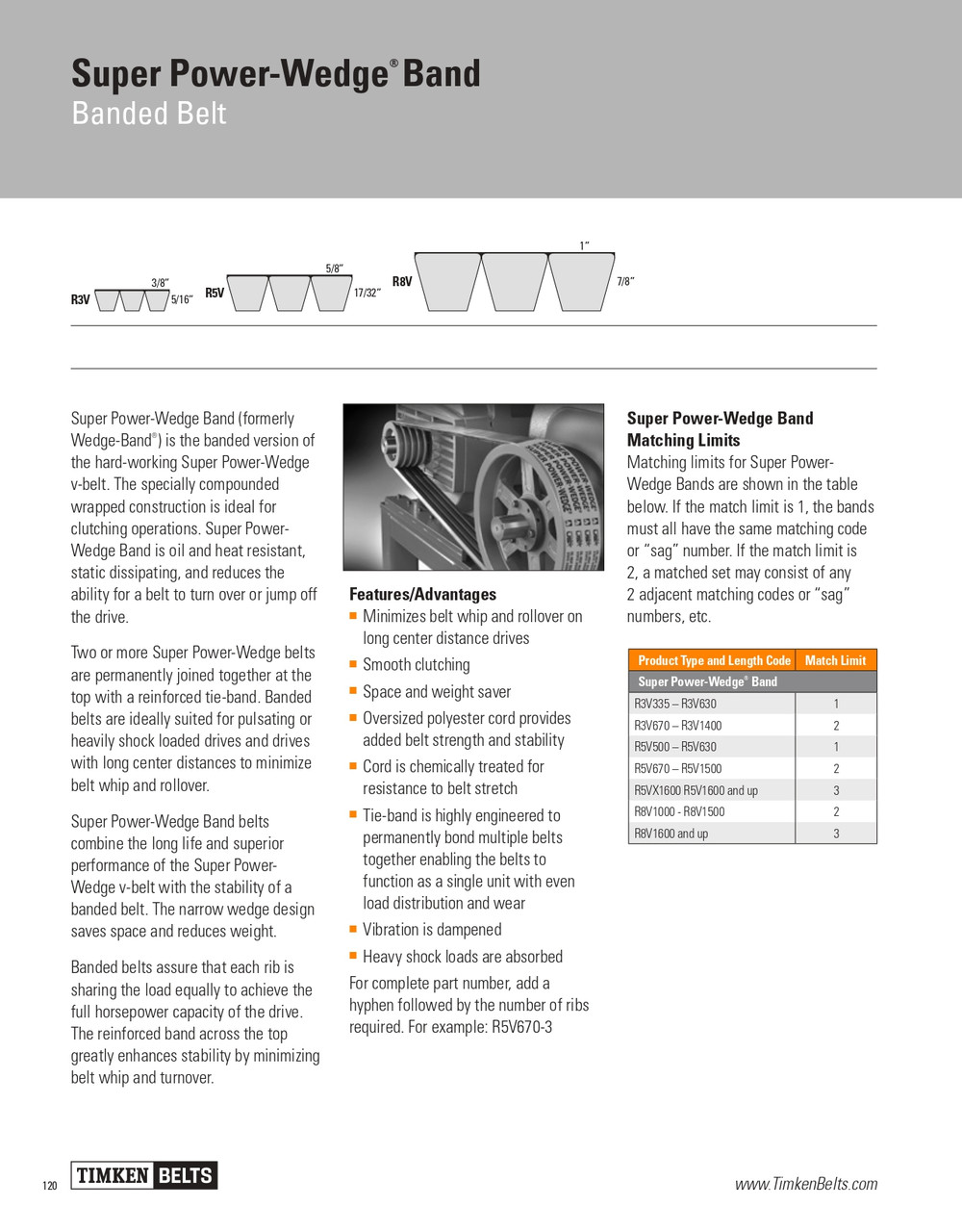

Timken Belts Catalog
