Super II® V-Belt A35R

Overview
Reviews

Product Description

The Problem Solver! Super II v-belts are the solution to the constant and costly problem of replacing ordinary v-belts on troublesome drives.

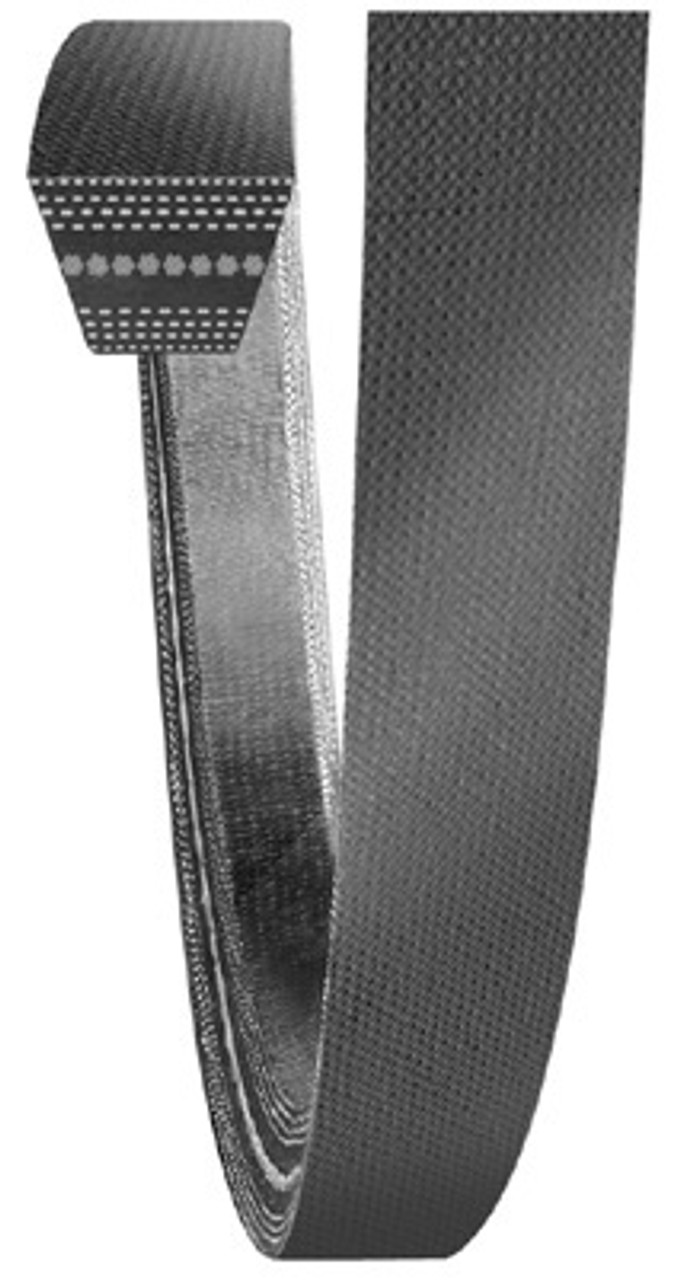

Classical laminated raw edge v-belt made of Ethylene Propylene Diene Monomer (EPDM) with Central Neutral Axis (CNA) cord placement that creates a flexible, stable and efficient v-belt.

Specially formulated fiber-loaded EPDM rubber compounds, engineered fabrics and high-modulus polyester cord offer greater strength, longer life, better heat dissipation and higher efficiencies than best-in-class wrapped v-belts.

EPDM is durable, heat resistant, static conductive and resistant to hardening and glazing.

The unique CNA (central neutral axis) cord placement positions the strength of the belt lower on the pulleys to maintain stability and prevent roll-over.

The raw edge construction results in more efficient power transmission and reduced energy loss.

Multiple fabric plies, top and bottom, relieve stress on the load-carrying center cord for added flexibility.

The quantity of fabric plies varies per cross section, with an equal number of plies above and below the cord.

High performance alternative to wrapped v-belts

Unique design for long belt life

Grip with controlled slippage

Low maintenance and downtime

More energy efficient than wrapped v-belts

Static conductive

Resistant to hardening and glazing

Broad operating temperature range (-50°F to +250°F).

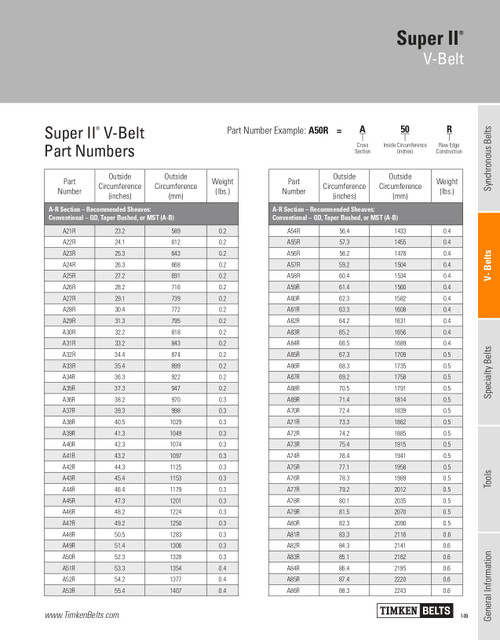

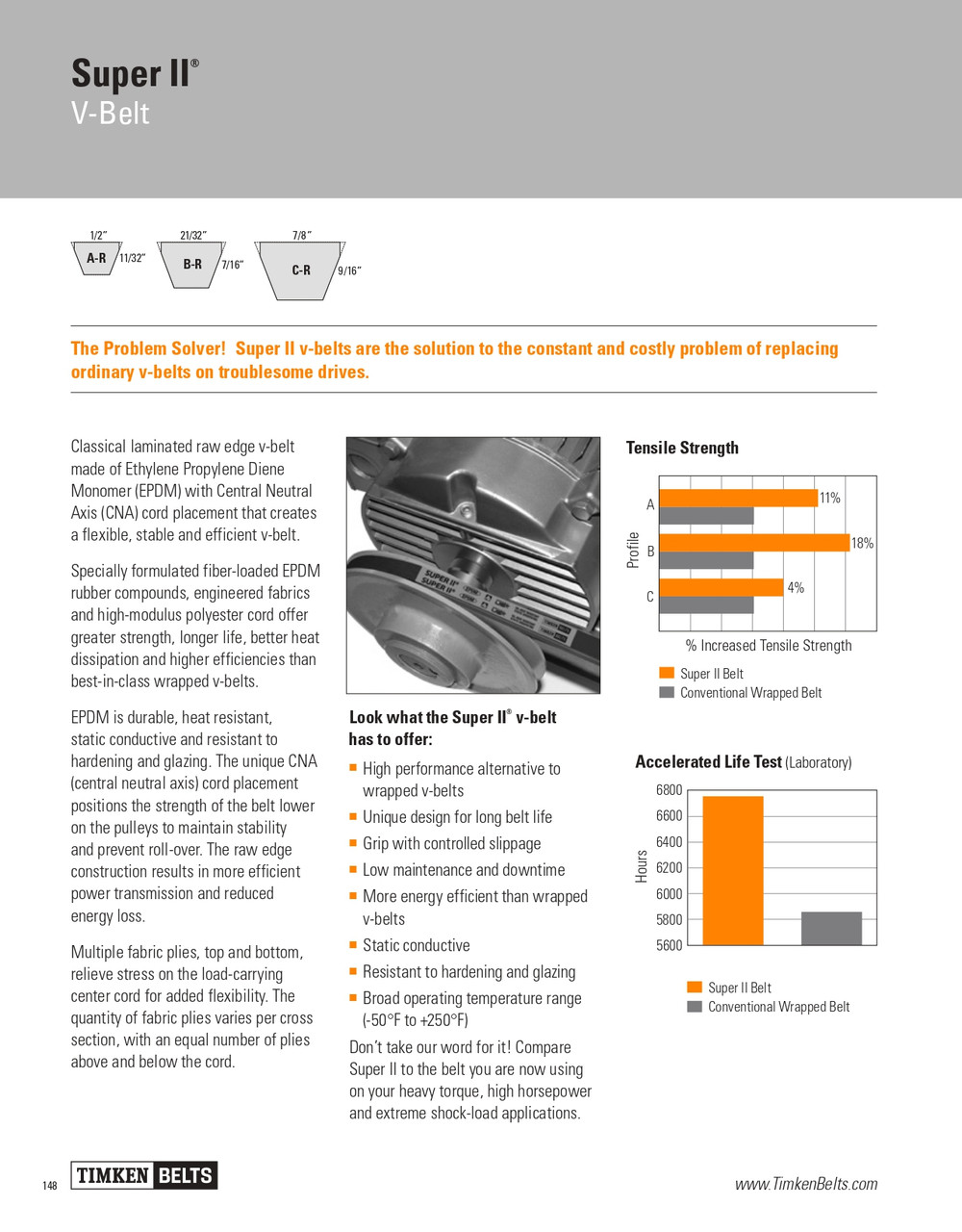

Timken Belts Catalog
