Straight Link Plate Roller Chain Spring Clip Connector Link DRV-C60-1 SC CO LINK

PLAIN FINISH CARBON STEEL CHAIN

Cut-to-length chain sizes are available upon special order

Chain sizes 35 ~ 60H are supplied with spring clip connector links whereas size 80 and larger are supplied with cottered connector links in the box

Multiple-strand widths are available in most sizes

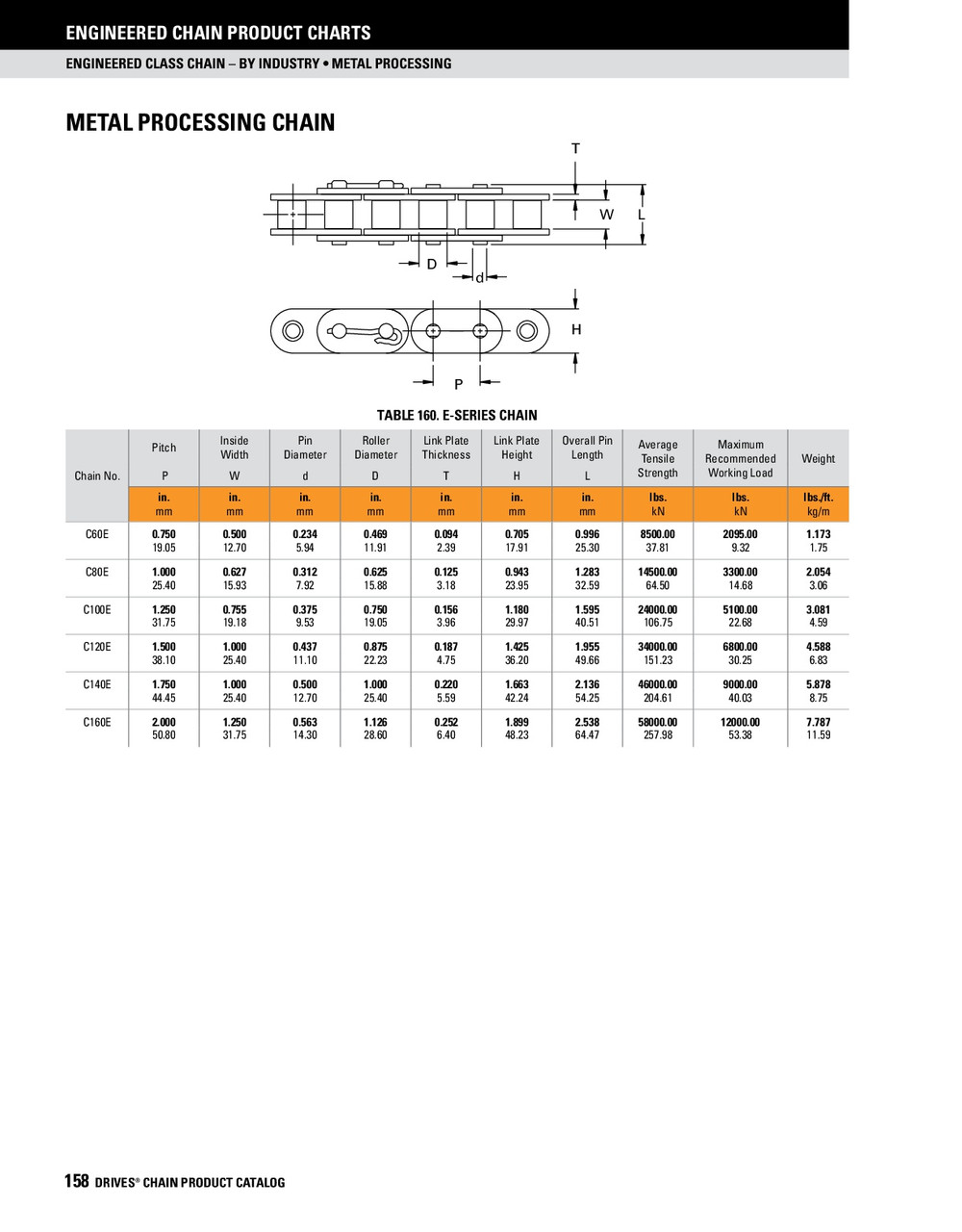

E-SERIES CHAIN

E series incorporates the same, full side plate construction design, used on conventional double pitch conveyor chains

Use where increased strength and durability are required without installing a heavy, wider series chain

Available in riveted style

Cut-to-length chain available

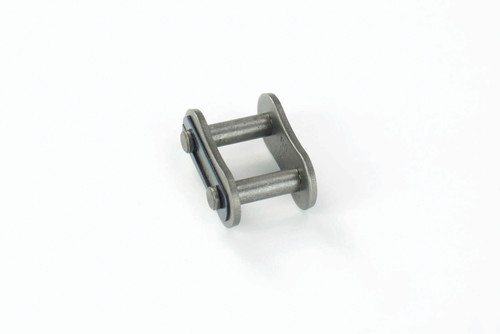

CONNECTING LINKS

Standard connecting links are used when roller chain is operating under normal conditions

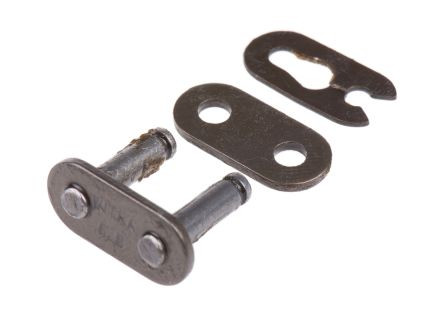

Spring-clip style connecting links are used for sizes 60H and smaller denoted by "S/C CO LINK"

Sizes 80 ~ 180H typically use a single special hardened "Sheppards" hook cotter pin denoted by "CT CO LINK SH"

Traditionl dual split cottered key connector links are also available in select chain sizes denoted by "SPL END CK"

Coated T-pins are used on chain sizes 200, 240 and 264 denoted by "CT CO LINK"

For severe applications, press fit connecting links are suggested denoted by "PF CO LINK"

Timken Drives General Catalog

Follow this link to access Timken's "Drives" customized roller chain attachment software.

Former "Drives" identification number 35565

Chain classification ANSI 60E

Chain strands 1

Quantity 1 link

Link type Spring clip connecting link

Material Carbon steel
