  • Stainless Plain Bore Plate Sprocket SS60A25
  • Stainless Plain Bore Plate Sprocket SS60A25
  • Stainless Plain Bore Plate Sprocket SS60A25

    • Stainless Plain Bore Plate Sprocket SS60A25

    Ringball

    $158.46
    (No reviews yet) Write a Review
    SKU:
    RBL SS60A25
    UPC:
    UPC 623647468615
    Weight:
    3.70 LBS
    Chain series:
    60
    Tooth count:
    25
    Pilot diameter:
    23/32"
    Hardened tooth:
    No
    Material:
    304 Stainless steel
    Hub type:
    A
    Standards:
    ANSI/ASME
    Adding to cart… category.add_cart_announcement

    Product Description

  • Type B sprockets are the most commonly requested design, whether they be finished or minimum plain bore.
  • The plain bore shaft sizes are for those desiring their own machining options, whereas the finished bore is for those requiring an immediate drop in solution.
  • Finished bore sprockets require the user to provide the correct keystock for their application.
  • Step & rectangular keystocks are available if your existing shaft's keyway does not match the sprockets "industry standard" pre-cut keyway dimensions which are shown above in the specifications.
  • Finished bore hubs come with two set screws at 90° angles and one of them being centered over the keyseat.
  • Finished bore sprockets keyways are cut consistently in alignment with the center line of a sprockets tooth for those users with timing requirements.

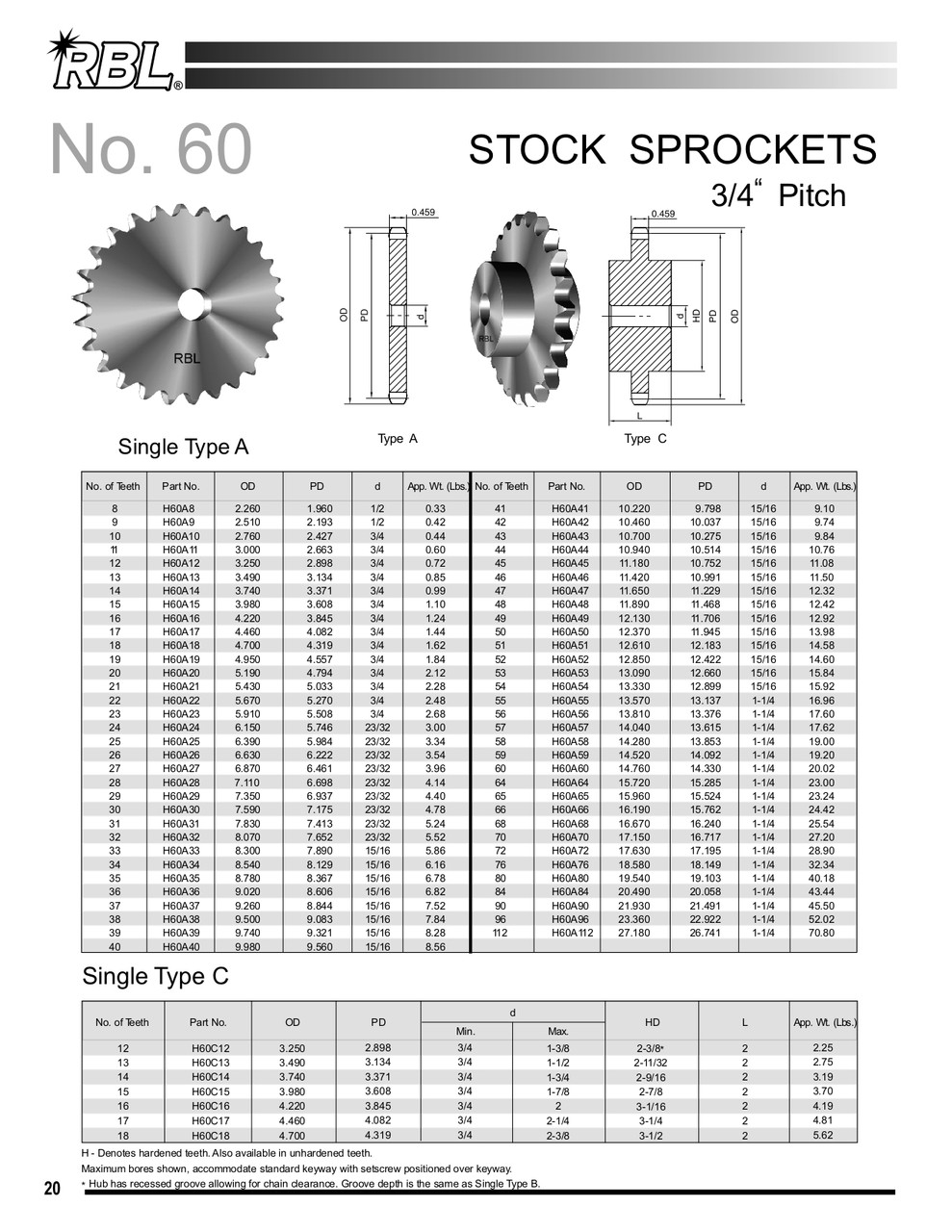

    adobepdficon.pngRingball Sprocket Catalog



    • Product Videos

    Custom Field

    Chain series 60
    Tooth count 25
    Pilot diameter 23/32"
    Hardened tooth No
    Material 304 Stainless steel
    Hub type A
    Standards ANSI/ASME
