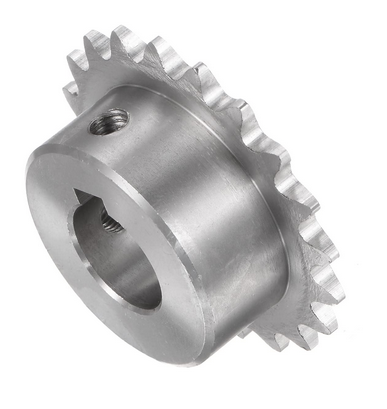

  • Stainless Finished Bore Sprocket SS50B23 X 3/4"
  • Stainless Finished Bore Sprocket SS50B23 X 3/4"
  • Stainless Finished Bore Sprocket SS50B23 X 3/4"

    • Stainless Finished Bore Sprocket SS50B23 X 3/4"

    Ringball

    $155.65
    (No reviews yet) Write a Review
    SKU:
    RBL SS50B23 X 3/4"
    UPC:
    UPC 623647468585
    Weight:
    2.55 LBS
    Chain series:
    50
    Tooth count:
    23
    Shaft diameter:
    3/4"
    Hardened tooth:
    No
    Keyway:
    3/16 x 3/32"
    Set screws:
    2 @ 90°
    Material:
    304 Stainless steel
    Hub type:
    B
    Standards:
    ANSI/ASME
    Adding to cart… category.add_cart_announcement

    Product Description

  • Type B sprockets are the most commonly requested design, whether they be finished or minimum plain bore.
  • The plain bore shaft sizes are for those desiring their own machining options, whereas the finished bore is for those requiring an immediate drop in solution.
  • Finished bore sprockets require the user to provide the correct keystock for their application.
  • Step & rectangular keystocks are available if your existing shaft's keyway does not match the sprockets "industry standard" pre-cut keyway dimensions which are shown above in the specifications.
  • Finished bore hubs come with two set screws at 90° angles and one of them being centered over the keyseat.
  • Finished bore sprockets keyways are cut consistently in alignment with the center line of a sprockets tooth for those users with timing requirements.

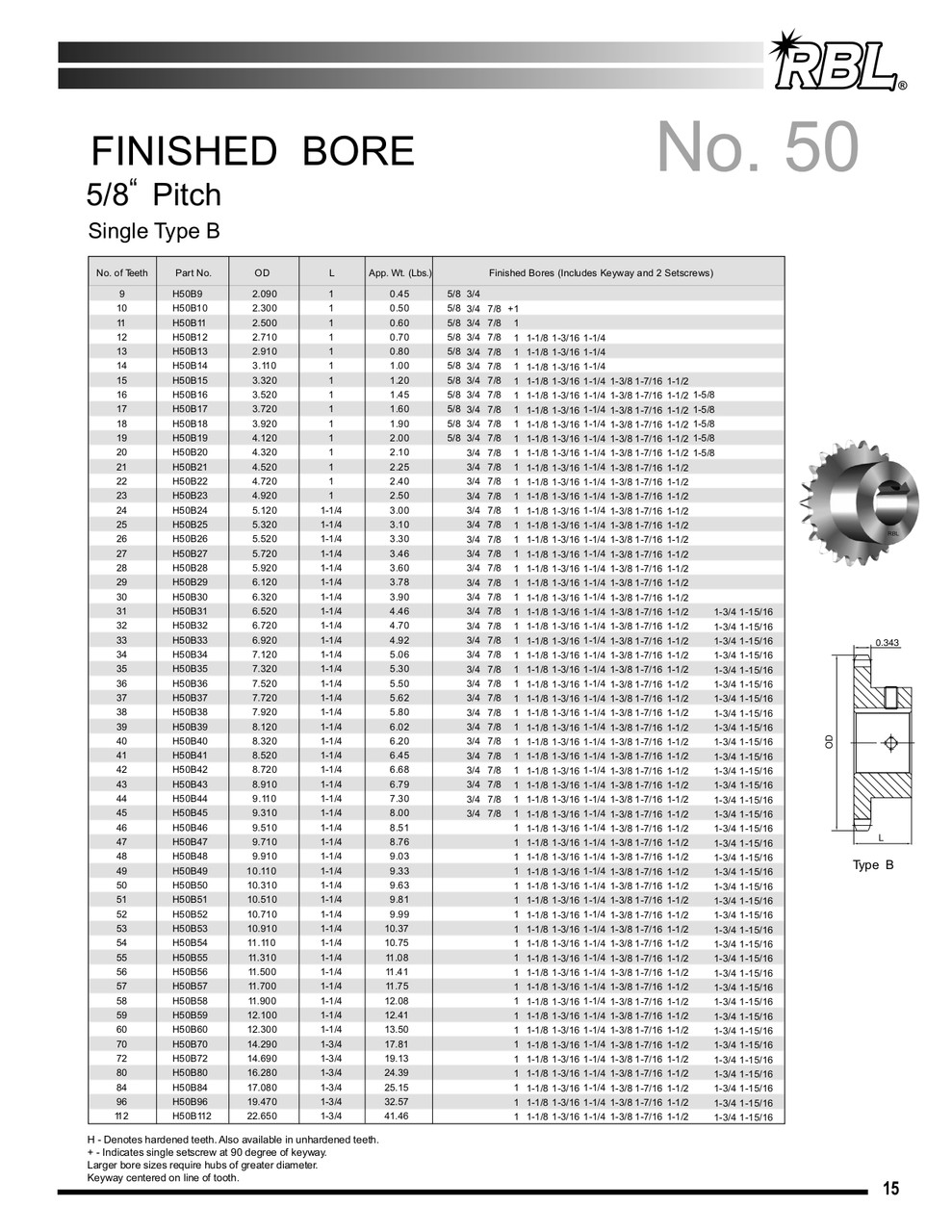

    adobepdficon.pngRingball Sprocket Catalog



    • Product Videos

    Custom Field

    Chain series 50
    Tooth count 23
    Shaft diameter 3/4"
    Hardened tooth No
    Keyway 3/16 x 3/32"
    Set screws 2 @ 90°
    Material 304 Stainless steel
    Hub type B
    Standards ANSI/ASME
