  • SlideLOK® Fig. 7402 Coupling 3"
  • SlideLOK® Fig. 7402 Coupling 3"
  • SlideLOK® Fig. 7402 Coupling 3"
  • SlideLOK® Fig. 7402 Coupling 3"

    • SlideLOK® Fig. 7402 Coupling 3"

    Gruvlok

    $0.00
    (No reviews yet) Write a Review
    SKU:
    GRV FIG7402X3
    Weight:
    0.00 LBS
    Bolts equipped:
    SAE J429, grade 5, zinc electroplated (standard)
    Heavy hex nuts:
    SAE A563, grade A, zinc electroplated (standard)
    Housing material:
    Ductile iron conforming to ASTM A 536, grade 65-45-12.

    Product Description

  • Gaskets types:
  • Grade “EP” EPDM (Green and Red color code) -40°F to 250°F (Service Temperature Range)(-40°C to 121°C)Recommended for water service, diluted acids, alkalies solutions, oil-free air and many other chemical services. NOT FOR USE IN PETROLEUM APPLICATIONS.
  • Grade “T” Nitrile (Orange color code) NOT FOR USE IN DRINKING WATER -20°F to 180°F (Service Temperature Range)(-29°C to 82°C)Recommended for petroleum applications. air with oil vapors andvegetable and mineral oils. NOT FOR USE IN HOT WATER OR HOT AIR

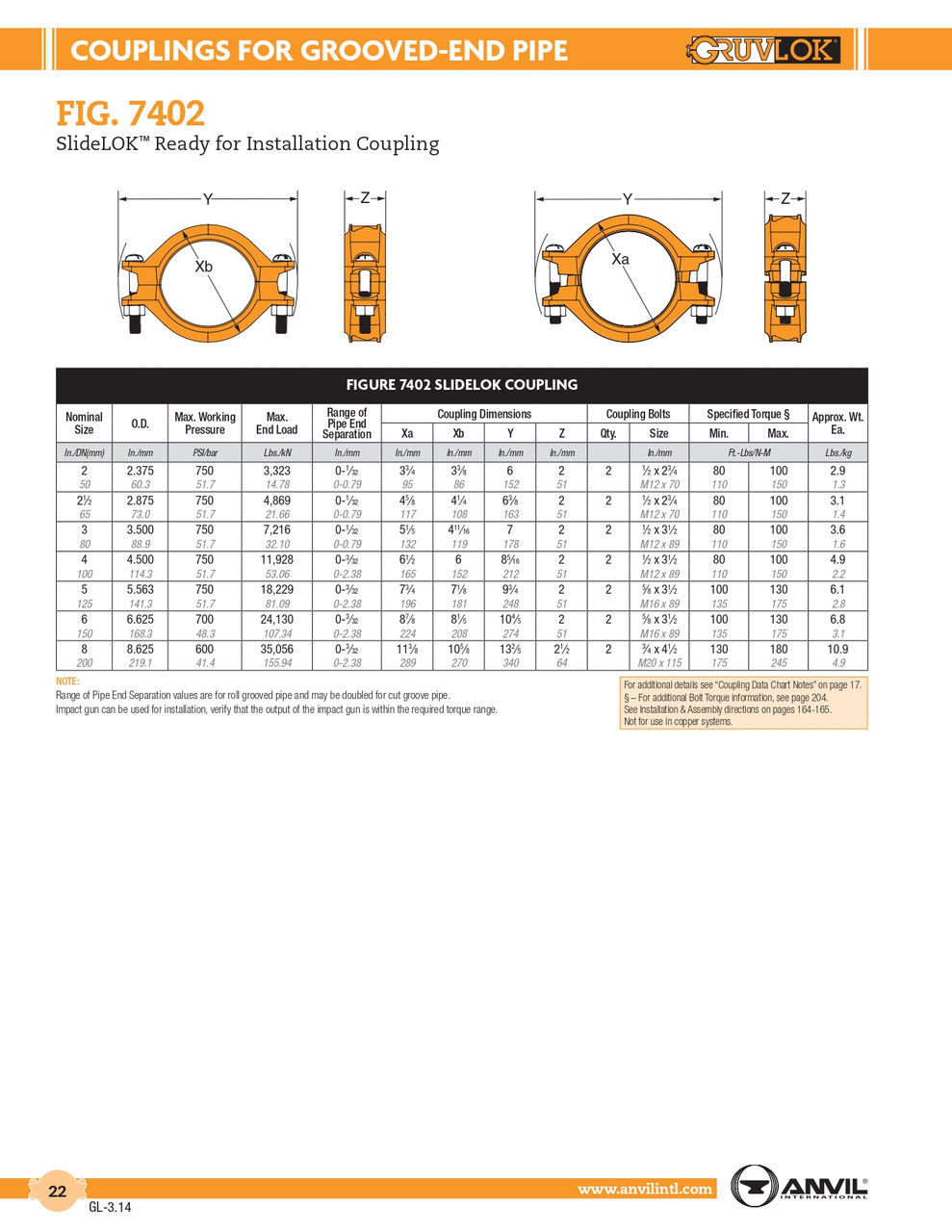

  • The SlideLOK coupling is a ready for installation coupling designed to reduce installation time. The slide action allows for greater flexibility during installation. The patented gasket provides four separate sealing surfaces for added protection. The engineered metal-to-metal installation requirement is a quick and easy indication of proper assembly.
  • The SlideLOK is desgined to be used with roll groove or cut groove steel pipe, as well as with grooved light wall pipe, Gruvlok® grooved-end fittings, and valves. The SlideLOK coupling produces a secure, ridgid pipe joint connection.
  • The SlideLOK coupling allows for a maximum working pressure of 750 psi on roll or cut grooved carbon steel standard wall pipe. The SlideLOK coupling provides a rigid connection allowing pipe hanging practices per ASME B31 Pipe Codes.

    adobepdficon.png Gruvlok Catalog

    • Product Videos

    Custom Field

    Bolts equipped SAE J429, grade 5, zinc electroplated (standard)
    Heavy hex nuts SAE A563, grade A, zinc electroplated (standard)
    Housing material Ductile iron conforming to ASTM A 536, grade 65-45-12.
