Product Description

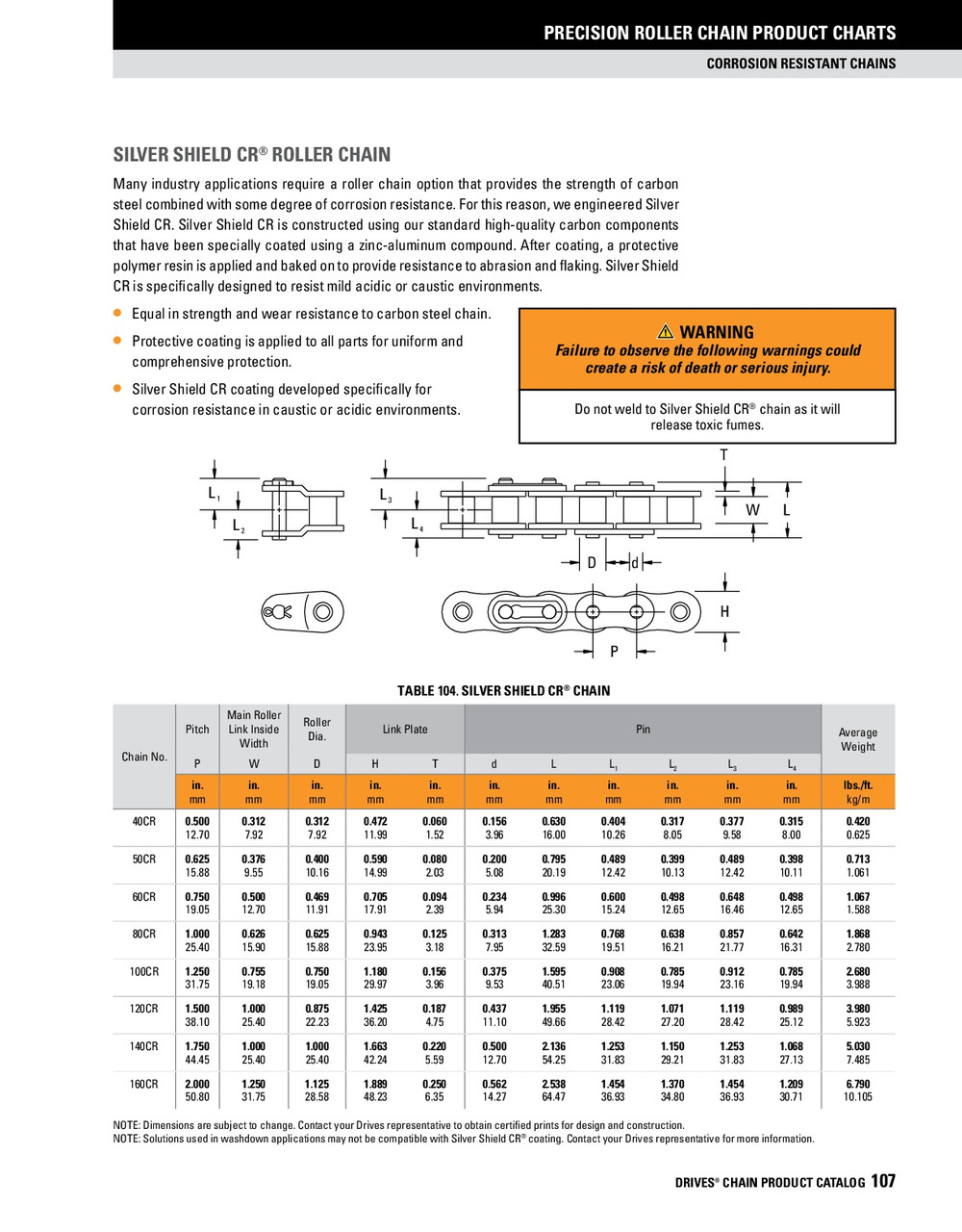

SILVER SHIELD® CHAIN (CR)
Silver Shield® chain is available for applications that may be subjected to mildly caustic or acidic environments
Silver Shield® chain is fabricated from of our standard carbon steel components, then specially coated with a zinc-aluminum compound. This compound, combined with a polymer-based resin, tightly adheres to the components during a high-temperature baking process. This combination of quality carbon steel components and environmental-resistant coating provides one of the best alternatives to stainless in applications where stainless has historically been the only option
Equal in strength and wear resistance to carbon steel chain
Protective coating is applied to all parts for uniform and comprehensive protectionDo not weld to Silver Shield® chain as it will release toxic fumes
CONNECTING LINKS
Standard connecting links are used when roller chain is operating under normal conditions
Spring-clip style connecting links are used for sizes 60H and smaller denoted by "S/C CO LINK"
Sizes 80 ~ 180H typically use a single special hardened "Sheppards" hook cotter pin denoted by "CT CO LINK SH"
Traditionl dual split cottered key connector links are also available in select chain sizes denoted by "SPL END CK"
Coated T-pins are used on chain sizes 200, 240 and 264 denoted by "CT CO LINK"
For severe applications, press fit connecting links are suggested denoted by "PF CO LINK"
Timken Drives General Catalog
Follow this link to access Timken's "Drives" customized roller chain attachment software.
Custom Field
Former "Drives" identification number 76097
Chain classification ANSI 40
Chain strands 2
Quantity 1 link
Link type Spring clip connecting link
Material Zinc-Aluminized carbon steel
