  • Silver Shield® Conveyor Chain Spring Clip Connector Link DRV-C2050-1 SC CO LINK CR
  • Silver Shield® Conveyor Chain Spring Clip Connector Link DRV-C2050-1 SC CO LINK CR
  • Silver Shield® Conveyor Chain Spring Clip Connector Link DRV-C2050-1 SC CO LINK CR
  • Silver Shield® Conveyor Chain Spring Clip Connector Link DRV-C2050-1 SC CO LINK CR
  • Silver Shield® Conveyor Chain Spring Clip Connector Link DRV-C2050-1 SC CO LINK CR

    • Silver Shield® Conveyor Chain Spring Clip Connector Link DRV-C2050-1 SC CO LINK CR

    Timken/Drives

    $32.05
    (No reviews yet) Write a Review
    SKU:
    DRV-C2050-1 SC CO LINK CR
    UPC:
    UPC 642051326601
    Weight:
    0.05 LBS
    Former "Drives" identification number:
    32660
    Chain classification:
    ANSI C2050
    Chain strands:
    1
    Quantity:
    1 link
    Link type:
    Spring clip connecting link
    Material:
    Zinc-Aluminized carbon steel
    Adding to cart… category.add_cart_announcement

    Product Description

    SILVER SHIELD® CHAIN (CR)

  • Silver Shield® chain is available for applications that may be subjected to mildly caustic or acidic environments
  • Silver Shield® chain is fabricated from of our standard carbon steel components, then specially coated with a zinc-aluminum compound. This compound, combined with a polymer-based resin, tightly adheres to the components during a high-temperature baking process. This combination of quality carbon steel components and environmental-resistant coating provides one of the best alternatives to stainless in applications where stainless has historically been the only option
  • Equal in strength and wear resistance to carbon steel chain
  • Protective coating is applied to all parts for uniform and comprehensive protection
  • Do not weld to Silver Shield® chain as it will release toxic fumes

    CONNECTING LINKS
  • Standard connecting links are used when roller chain is operating under normal conditions
  • Spring-clip style connecting links are used for sizes 60H and smaller denoted by "S/C CO LINK"
  • Sizes 80 ~ 180H typically use a single special hardened "Sheppards" hook cotter pin denoted by "CT CO LINK SH"
  • Traditionl dual split cottered key connector links are also available in select chain sizes denoted by "SPL END CK"
  • Coated T-pins are used on chain sizes 200, 240 and 264 denoted by "CT CO LINK"
  • For severe applications, press fit connecting links are suggested denoted by "PF CO LINK"

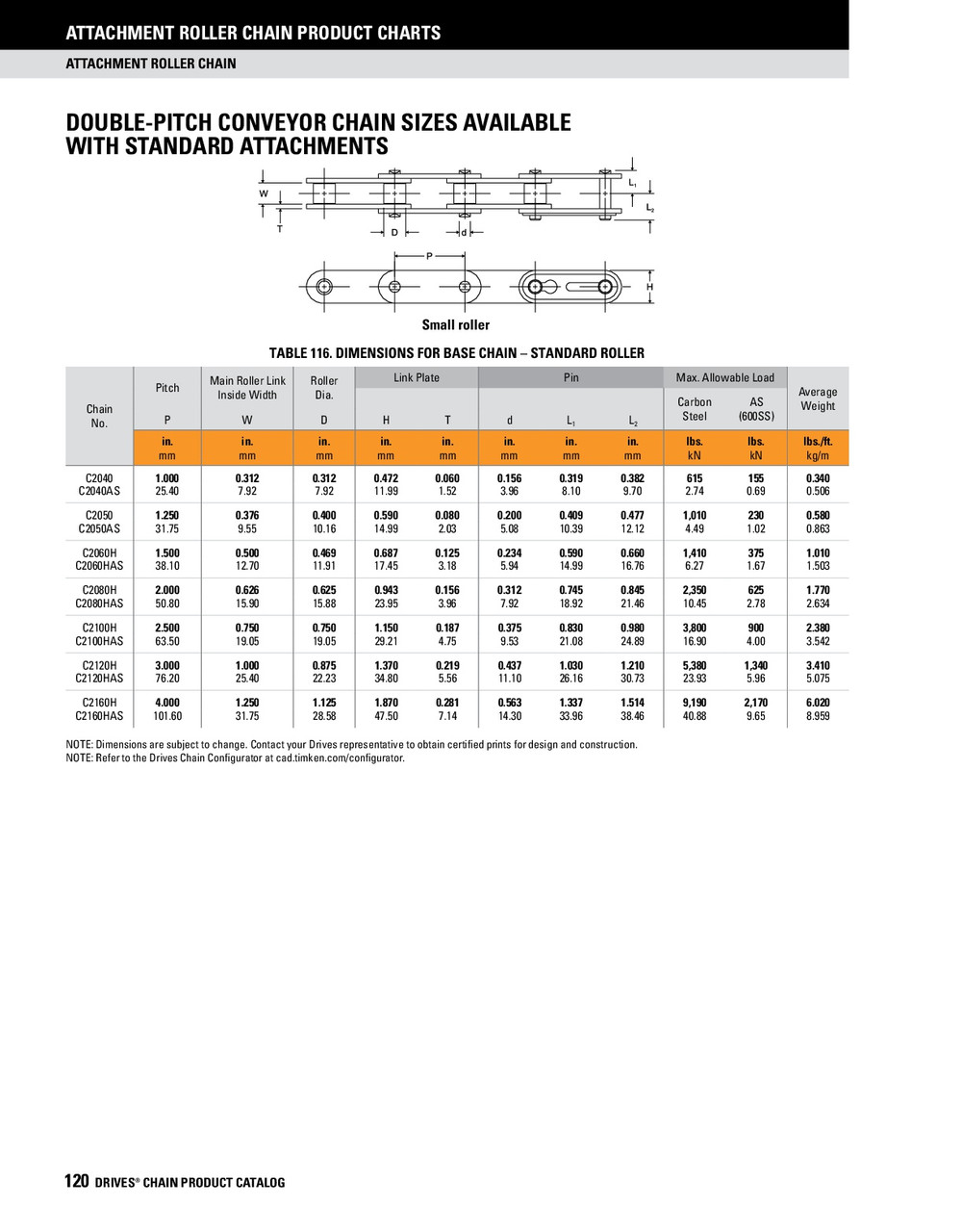

    adobepdficon.png Timken Drives General Catalog

    Follow this link to access Timken's "Drives" customized roller chain attachment software.

    • Product Videos

    Custom Field

    Former "Drives" identification number 32660
    Chain classification ANSI C2050
    Chain strands 1
    Quantity 1 link
    Link type Spring clip connecting link
    Material Zinc-Aluminized carbon steel
