    Gruvlok

    $0.00
    (No reviews yet) Write a Review
    SKU:
    GRV SERIES7700VLV
    Weight:
    0.00 LBS
    Housing material:
    Ductile iron conforming to ASTM A 536, grade 65-45-12
    Body coating:
    Nylon (For nylon compatibility, see page 83)
    Disc:
    Ductile Iron conforming to ASTM A 536 Grades 65-45-12
    Disc Encapsulation:
    Properties as specified in accordance with ASTM D 2000

    Product Description

  • Disc Coating Options:
  • Grade “E” EPDM Service Temperature Range -40°F to +230°F (-40°C to +110°C) Recommended for water service, dilute acids, alkalies, oil-free air andmany chemical services. NOT FOR USE IN PETROLEUM SERVICES
  • Grade “T” Nitrile Service Temperature Range -20°F to +180°F (-29°C to +82°C) Recommended for petroleum products, air with oil vapors, vegetable oilsand mineral oils. NOT FOR USE IN HOT WATER SERVICES.

  • Used in commercial grooved-end piping systems 2" through 12".
  • The uniqueness of the Series 7700 Gruvlok Butterfly Valve begins with the spherical bore of the disc seat area. This facilitates a constant DISC-TO-SEAT loading that maintains a leak tight stem seal regardless of disc position. The stem sealing force is constant through the full disc cycle and operating torques are kept low which increases valve life. The design provides a bubble tight seal from full vacuum to 300 psi when the valve is closed. The valve is rated for dead-end service to a full pressure rating of 300 psi. Manufactured without silicone Series 7700 available upon special request.
  • The stem-to-disc connection provides zero backlash. The high strength, corrosion resistant, stainless steel stems are blow-out proof. Each stem is fitted with a secondary seal that also provides a lifetime lubrication chamber.
  • The Series 7700 valve is designed with the contractor in mind. The valve body is a rugged one-piece casting with an integral mounting base for gear operator or handle actuation, while providing room for a minimum of 2" of pipe insulation. The valve is designed and manufactured to meet or exceed the requirements of MSS SP-67.

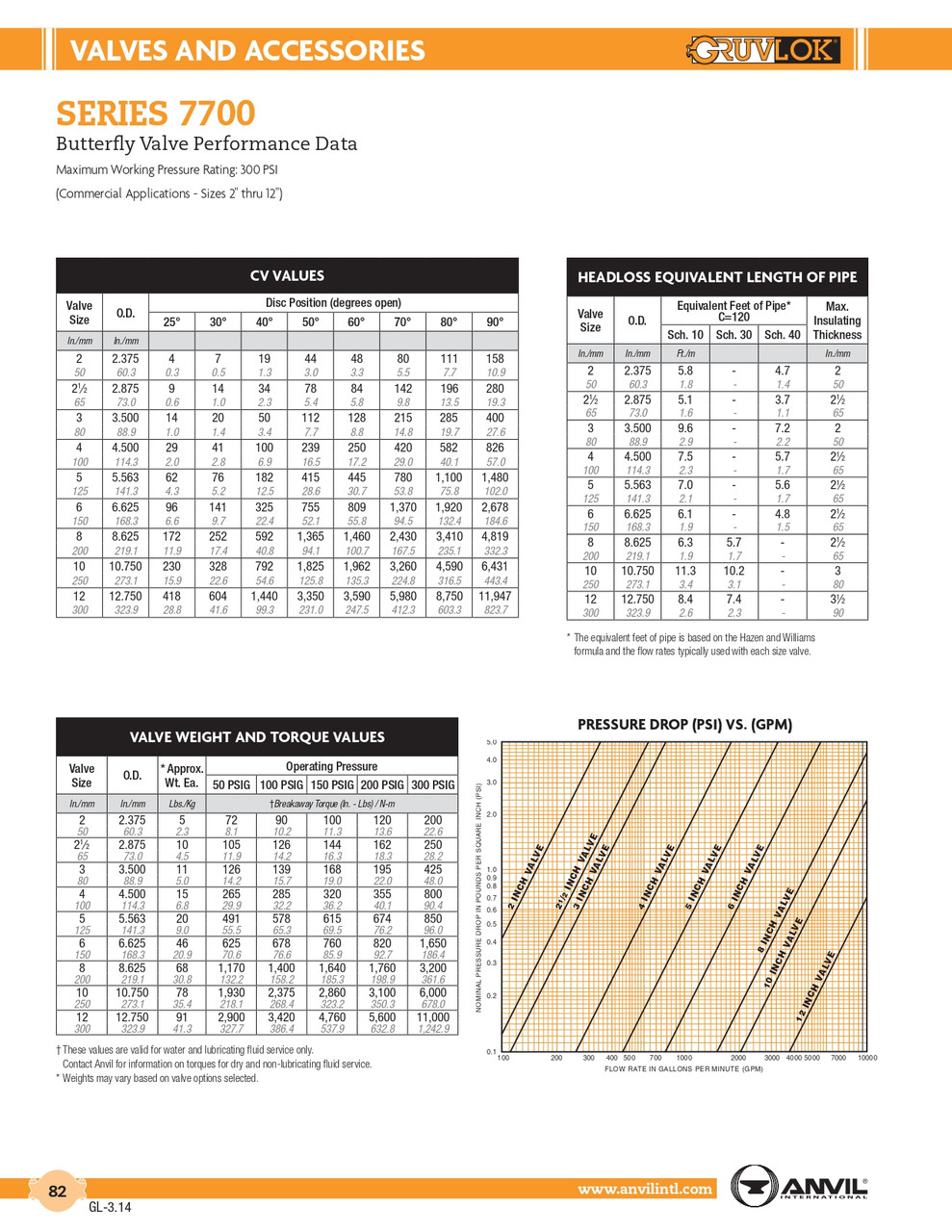

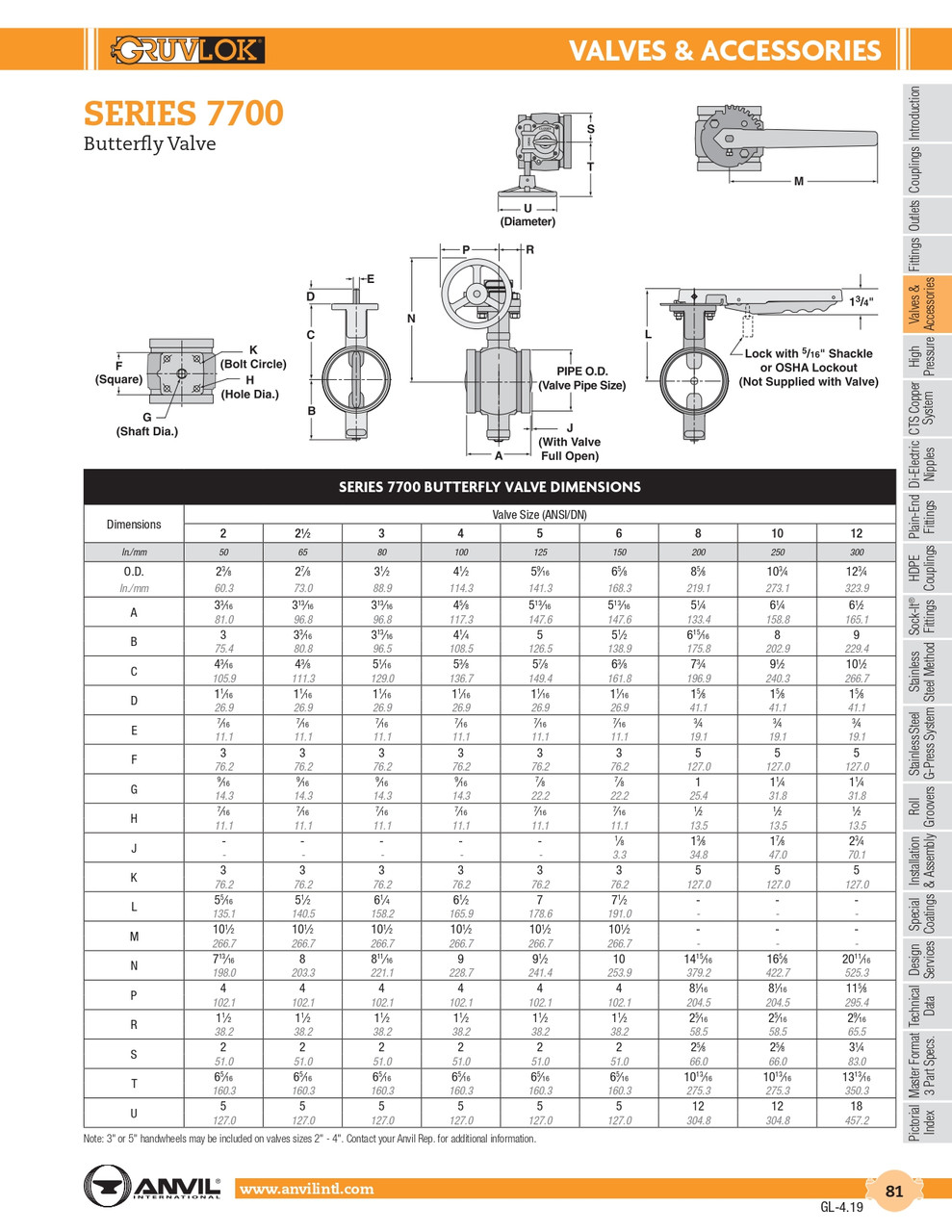

    adobepdficon.png Gruvlok Catalog

    • Product Videos

    Custom Field

    Housing material Ductile iron conforming to ASTM A 536, grade 65-45-12
    Body coating Nylon (For nylon compatibility, see page 83)
    Disc Ductile Iron conforming to ASTM A 536 Grades 65-45-12
    Disc Encapsulation Properties as specified in accordance with ASTM D 2000
