  • Runright® Suspension Unit RSS-S-50X120-SUSPENSION UNIT
  • Runright® Suspension Unit RSS-S-50X120-SUSPENSION UNIT

    • Runright® Suspension Unit RSS-S-50X120-SUSPENSION UNIT

    Timken

    $300.04
    (No reviews yet) Write a Review
    SKU:
    TIM RSS-S-50X120-SUSPENSION UNIT
    UPC:
    UPC 68514425049
    Weight:
    4.12 LBS
    Series:
    RSS-S-50X120
    Coupling type:
    Suspension unit
    Adding to cart… category.add_cart_announcement

    Product Description

  • The RunRight® rubber suspension unit RSS S is perfect for square lever arms.

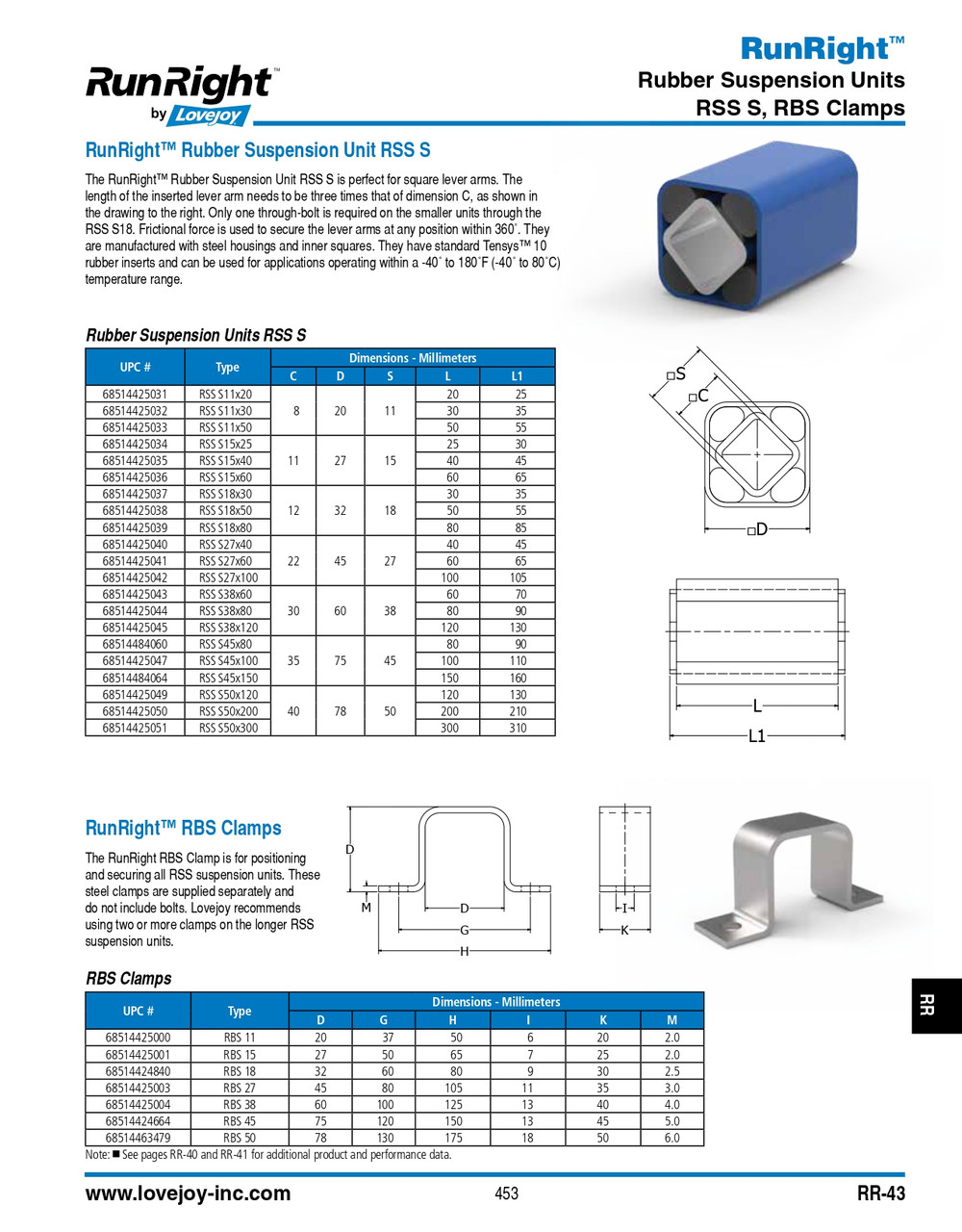

  • The length of the inserted lever arm needs to be three times that of dimension C, as shown in the drawing.
  • Only one through-bolt is required on the smaller units through the RSS S 18.
  • Frictional force is used to secure the lever arms at any position within 360°.
  • They are manufactured with steel housings and inner squares.
  • They have standard Tensys® 10 rubber inserts and can be used for applications operating within a -40° to 180°F (-40° to 80°C) temperature range.

  • Timken’s Quick Flex® Elastomeric Coupling Configurator helps you quickly size Quick Flex coupling solutions for common applications.
  • By entering motor power (HP or kW), speed (rpm), and service factors, the configurator presents available Quick Flex coupling options, supporting faster selection and quoting.
  • Access the Quick Flex® Coupling Configurator to speed up your next coupling selection.

    adobepdficon.png Timken Lovejoy Master Catalog

    • Product Videos

    Custom Field

    Series RSS-S-50X120
    Coupling type Suspension unit
