Runright® Suspension Unit RSS-S-27X60-SUSPENSION UNIT

Timken

$71.72

(No reviews yet) Write a Review

The RunRight® rubber suspension unit RSS S is perfect for square lever arms.

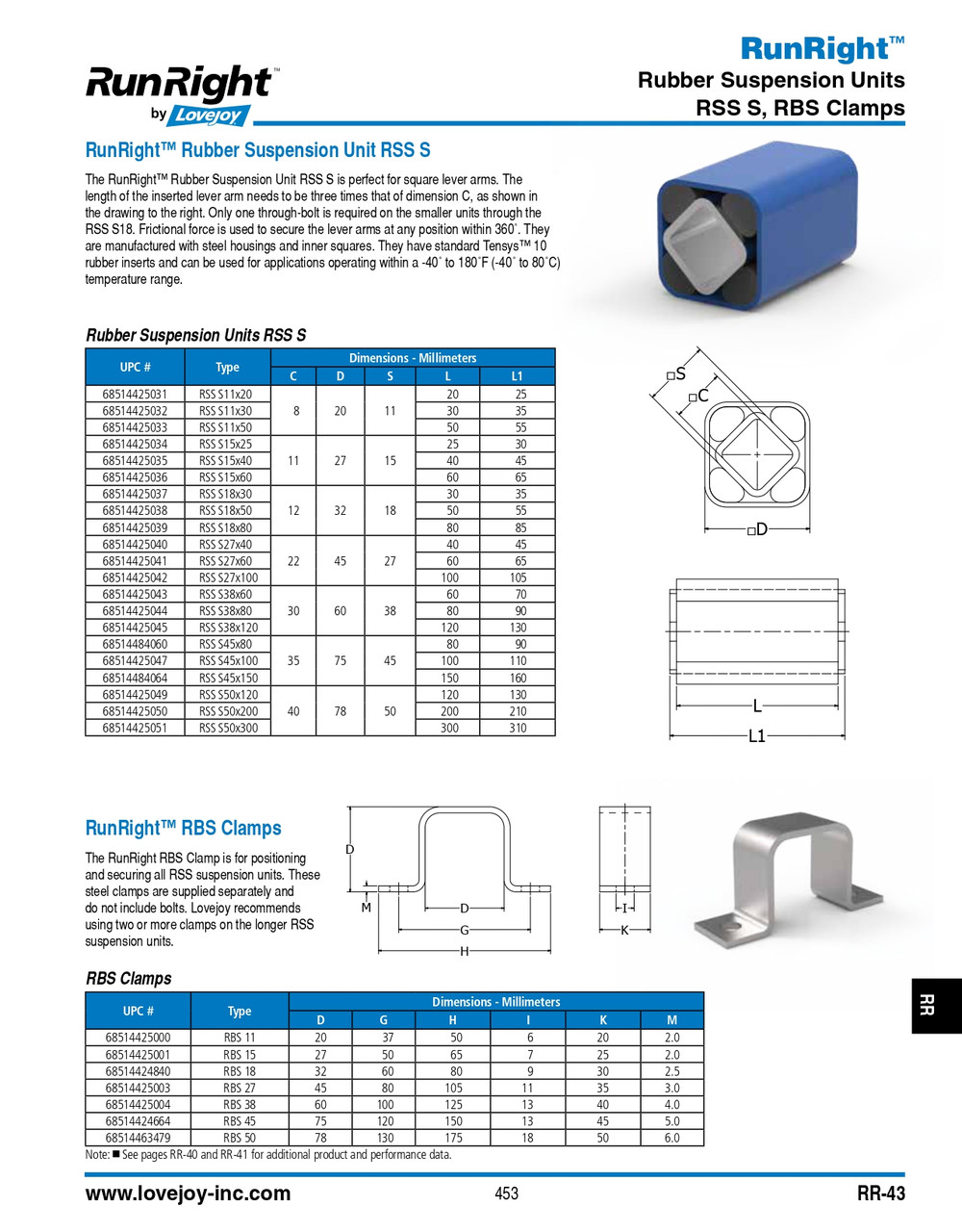

The length of the inserted lever arm needs to be three times that of dimension C, as shown in the drawing.

Only one through-bolt is required on the smaller units through the RSS S 18.

Frictional force is used to secure the lever arms at any position within 360°.

They are manufactured with steel housings and inner squares.

They have standard Tensys® 10 rubber inserts and can be used for applications operating within a -40° to 180°F (-40° to 80°C) temperature range.

Timken Lovejoy Master Catalog

Series RSS-S-27X60

Coupling type Suspension unit
