RSB (1-1/2") Shaft Lovejoy® Saga® Coupling Half SAGA-26-HUB-1-1/2 RSB-NKW-NSS

Overview
Reviews

Product Description

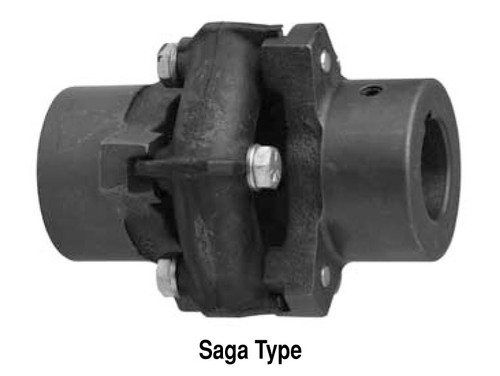

Saga is a general purpose, torsionally soft coupling with high tolerance to all forms of misalignment. The design features hexagonal or octagonal rubber donut-shaped elements with metal inserts positioned at each apex during the vulcanization process. These metal inserts carry actual bolts which fix the element to tines on cast, cylindrical hubs. Embedded inserts also have tines which connect with mating surfaces on hubs so that axial bolts can be easily torqued during assembly without twisting the rubber beyond the limits of its elasticity. The rubber between each apex is pre-compressed, so it is much more durable to the stresses arising from the various forms of misalignment and torsional vibrations.

A complete Saga coupling is comprised of 2 hubs, an elastomeric donut, and hardware.

No end thrust in misalignment position

Absorbs misalignment and shock

No axial reaction force to damage or accelerate wear in system bearings

Accepts constant angular misalignment of up to 3°

Parallel tolerance of 0.060 (1.5mm), while reaction force remains low

Lateral softness without complication, or sacrifice of performance or durability

Natural rubber can operate in temperatures from -60° to 200° F (-51° to 93° C)

Timkens Quick Flex® Elastomeric Coupling Configurator helps you quickly size Quick Flex coupling solutions for common applications.

By entering motor power (HP or kW), speed (rpm), and service factors, the configurator presents available Quick Flex coupling options, supporting faster selection and quoting.

Access the Quick Flex® Coupling Configurator to speed up your next coupling selection.

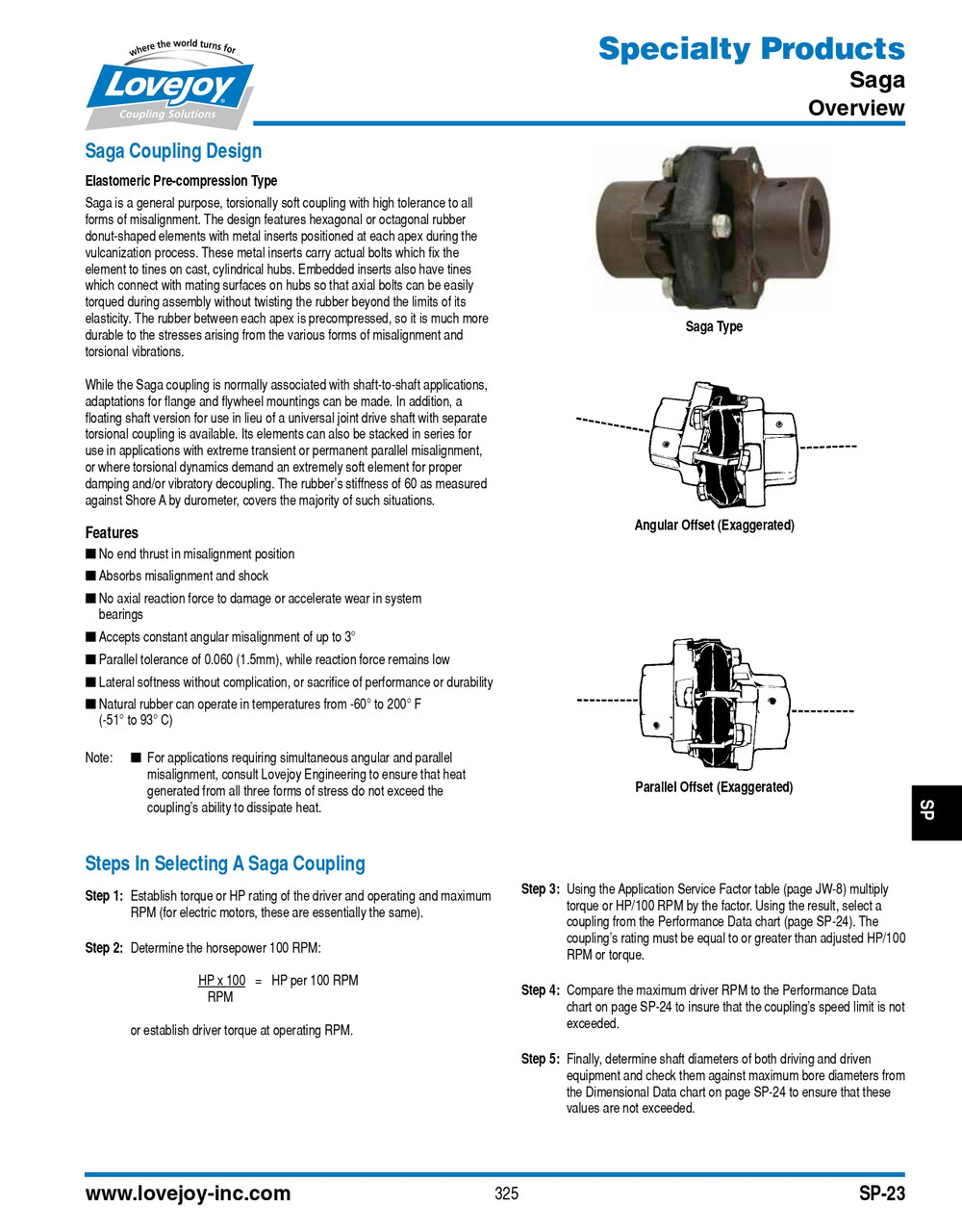

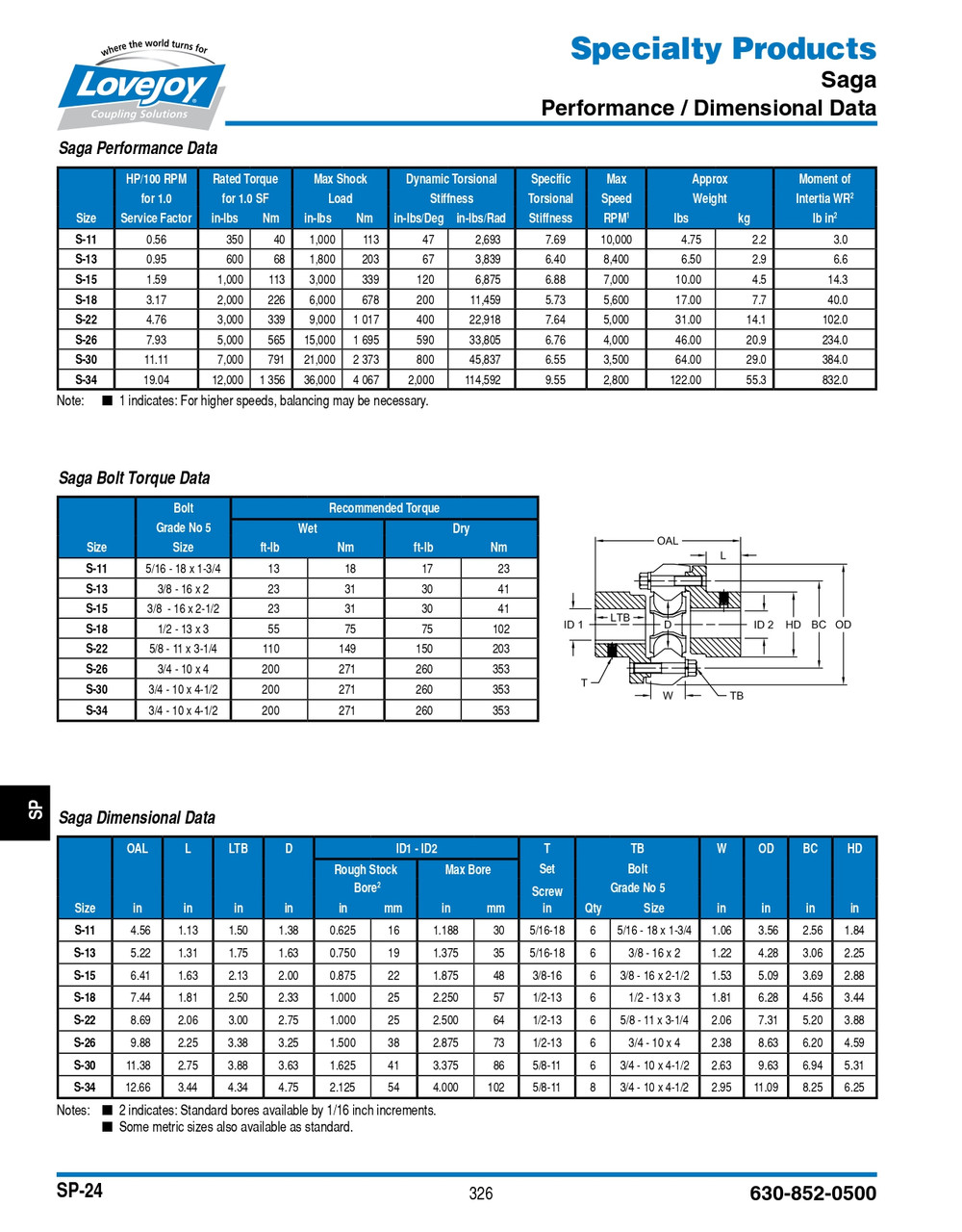

Timken Lovejoy Master Catalog

Saga Coupling Installation Guide

Product Videos

Custom Field

Series S-26

Shaft diameter RSB (1-1/2")

Material Steel

Keyway size No keyway

Coupling type Saga coupler
