Product Description
PLAIN FINISH CARBON STEEL CHAIN
Cut-to-length chain sizes are available upon special order
Chain sizes 35 ~ 60H are supplied with spring clip connector links whereas size 80 and larger are supplied with cottered connector links in the box
Multiple-strand widths are available in most sizes

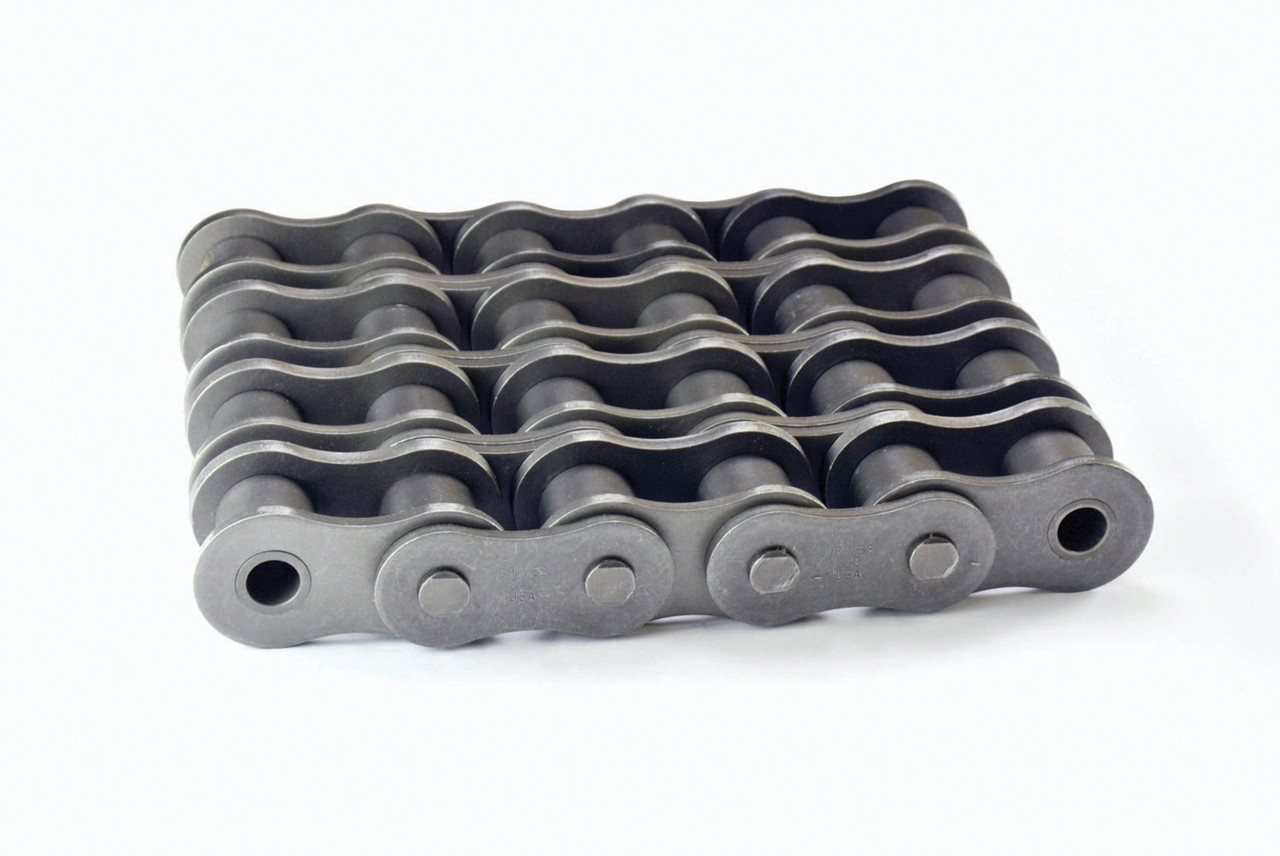

Z RIVETED & COTTERED SERIES CHAIN
Z series chain has the same dimensions as ANSI-standard series chain
The "Z" designates through-hardened pins that are utilized for higher working load capacities and additional resistance to fatigue in heavy load applications
Ballized pin-plate, middle-bar and bushing-plate holes made to precision tolerances provide increased bearing area and press fits, improving fatigue life and working loads
Wide-waisted link plates are manufactured with maximized ball height from special alloy steels for added strength. The wide link plate profile improves stress distribution, leading to improved fatigue resistance and enhanced performance
Multiple-strand widths available in all pitch sizes listed below
Riveted endless construction standard/suggested for certain applications
Size 264 chain is produced with a heavy series side plate (0.375 in. thick plate material) and a larger diameter pin, which provides greater bearing area and improved wear life. 264 chain will fit on the same sprockets as 200H
Timken Drives General Catalog

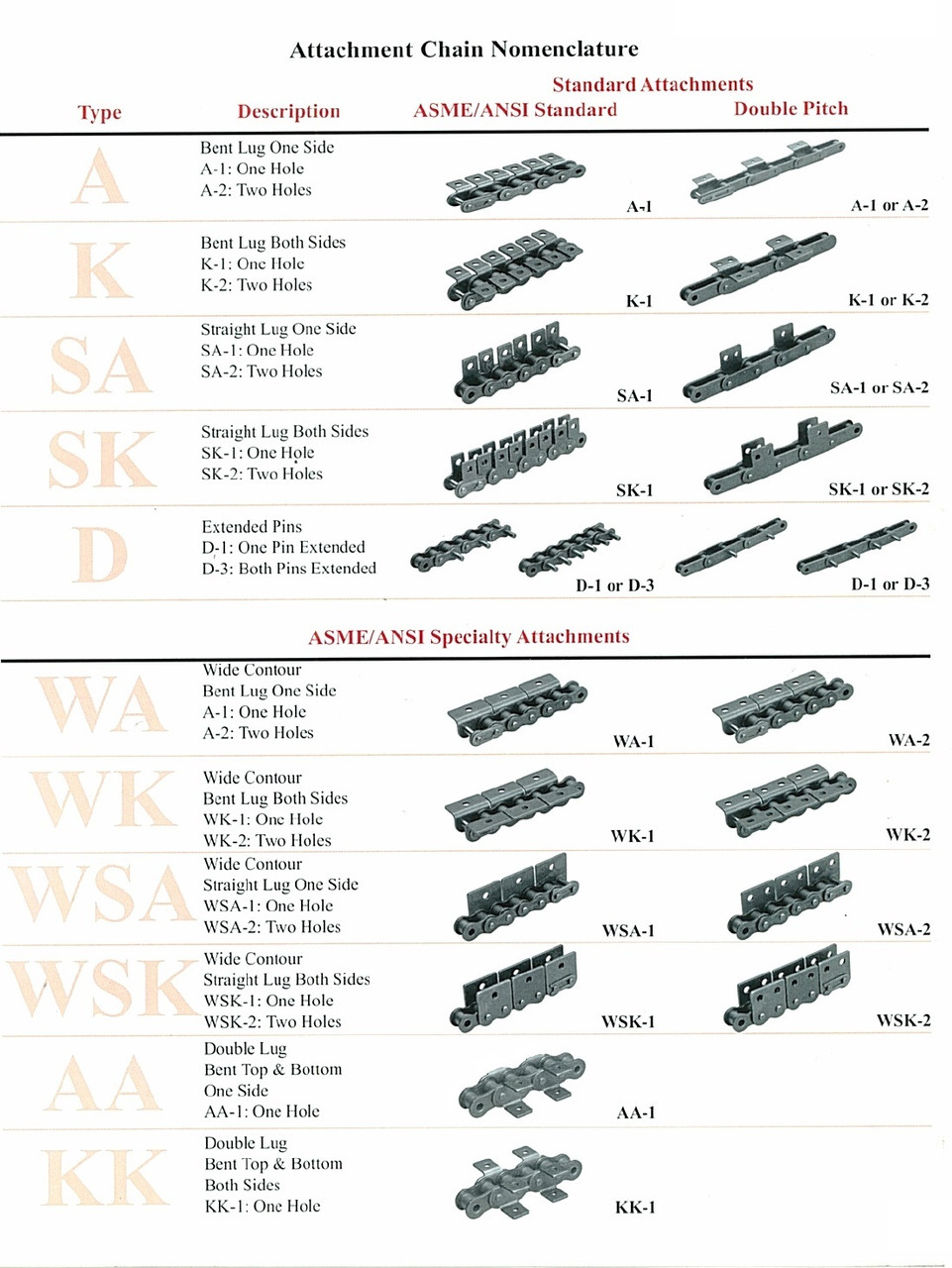

Follow this link to access Timken's "Drives" customized roller chain attachment software.
Former "Drives" identification number
Former "Drives" identification number 14102

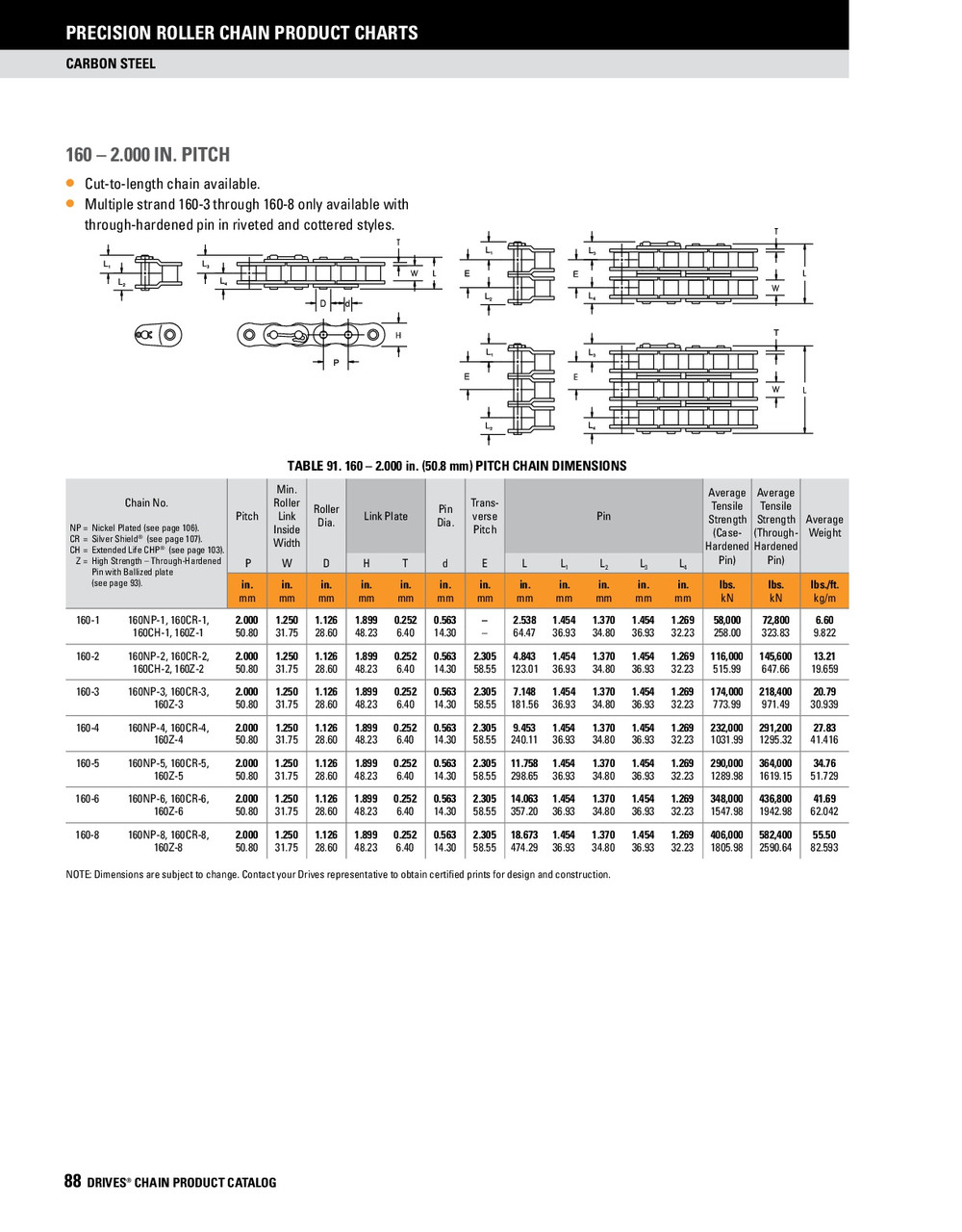

Chain classification ANSI 160
Chain strands 4
Continuous chain length 10'
Packaging Boxed
Link type Riveted lengths
Material Carbon steel
