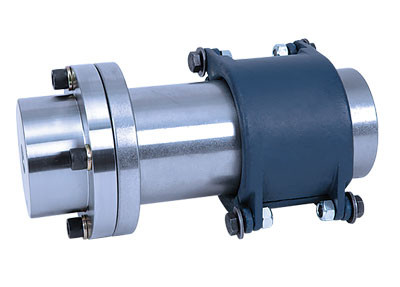

Quick Flex Single Ended Coupler Spacer Body QF50SPBODYX3-1/2

Overview
Reviews

Product Description

Product Features

Solid and split covers handle high speeds and torque

Design dampens torsional vibration and shock

Accepts shaft misalignment up to 2 degrees

Eliminates the need to move or disassemble the driving or driven equipment to replace the coupling insert

Versatility of design makes it a great tool for plant standardization

Accepts shaft sizes from 10 ~ 285 mm (0.37 ~ 11.25")

Peak handling torque from 0.085 ~ 377.5 knm (754 ~ 3,341,562 in.-lbs.)

Standard and double-ended spacer couplings available for shaft separations of 25.4 to 3,048 mm (1 ~ 120"), for increased application acceptance

Four bore options available to meet customers needs:
1) Bored, keyed and set screw style ~ clearance or interference fit
2) Bushing style (Dodge®, Browning® & QD style taper lock bushings)
3) Splined style
4) Mill-motor style (tapered shaft)

Stainless steel versions available for corrosive environments

Four insert choices for varying torque needs and temperature ranges, up to 177°C (350°F)

Replaces many common gear, grid and elastomeric couplings used in high and low torque applications to reduce plant complexity

Inherently balanced from precision machining of all components

Split-cover options help resist axial separating force under high torque

Standard finished bore hubs are supplied with a clearance fit and should slide onto the shaft without excessive force. There is no suffix designating a clearance fit

If the hub has been ordered with interference fit, designated by the suffix "U", then industry standards suggest heating the coupling halves to approximately 300° C (572° F) before installing on shafts. If they are not heated properly, the couplings will not fit on the hub properly

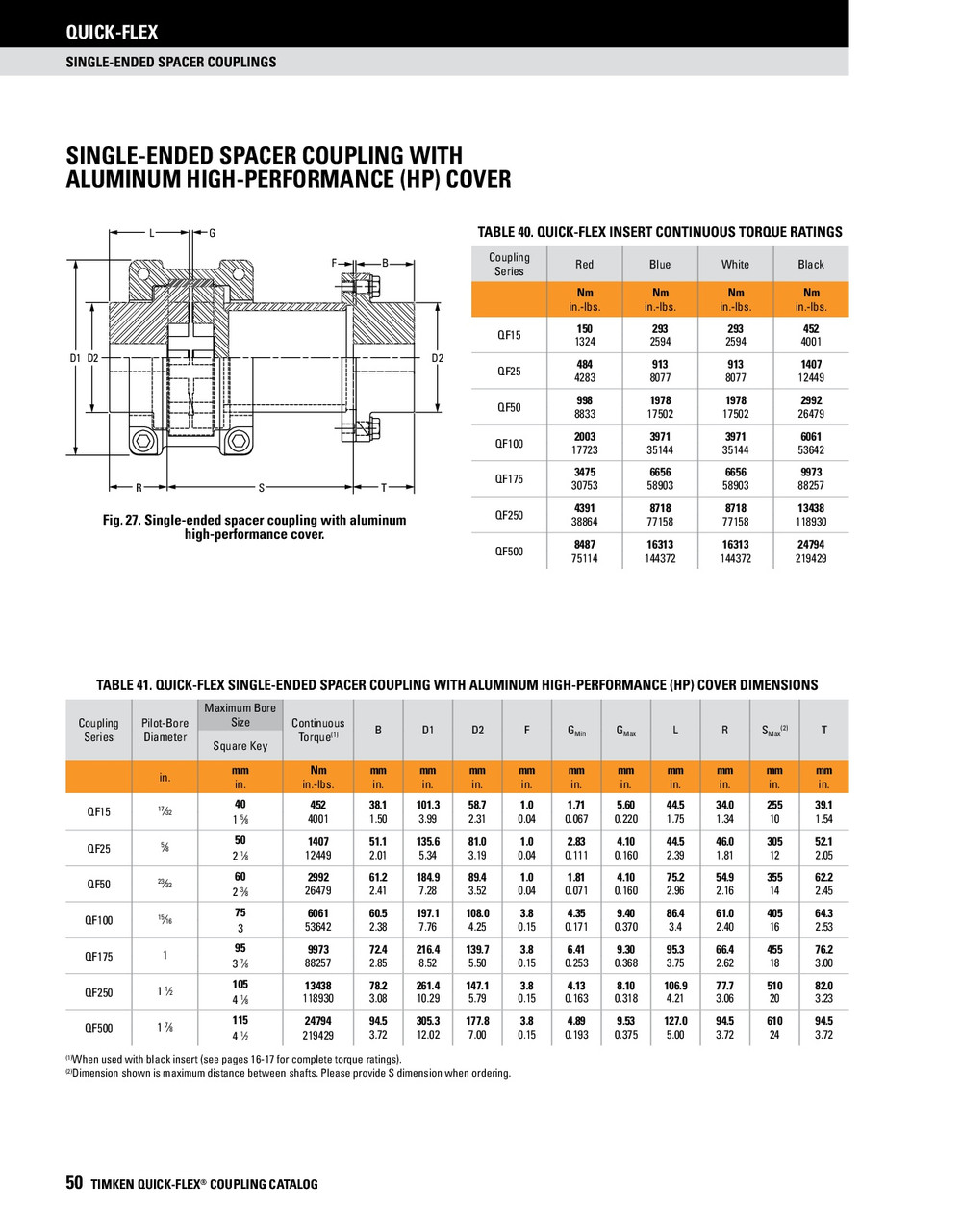

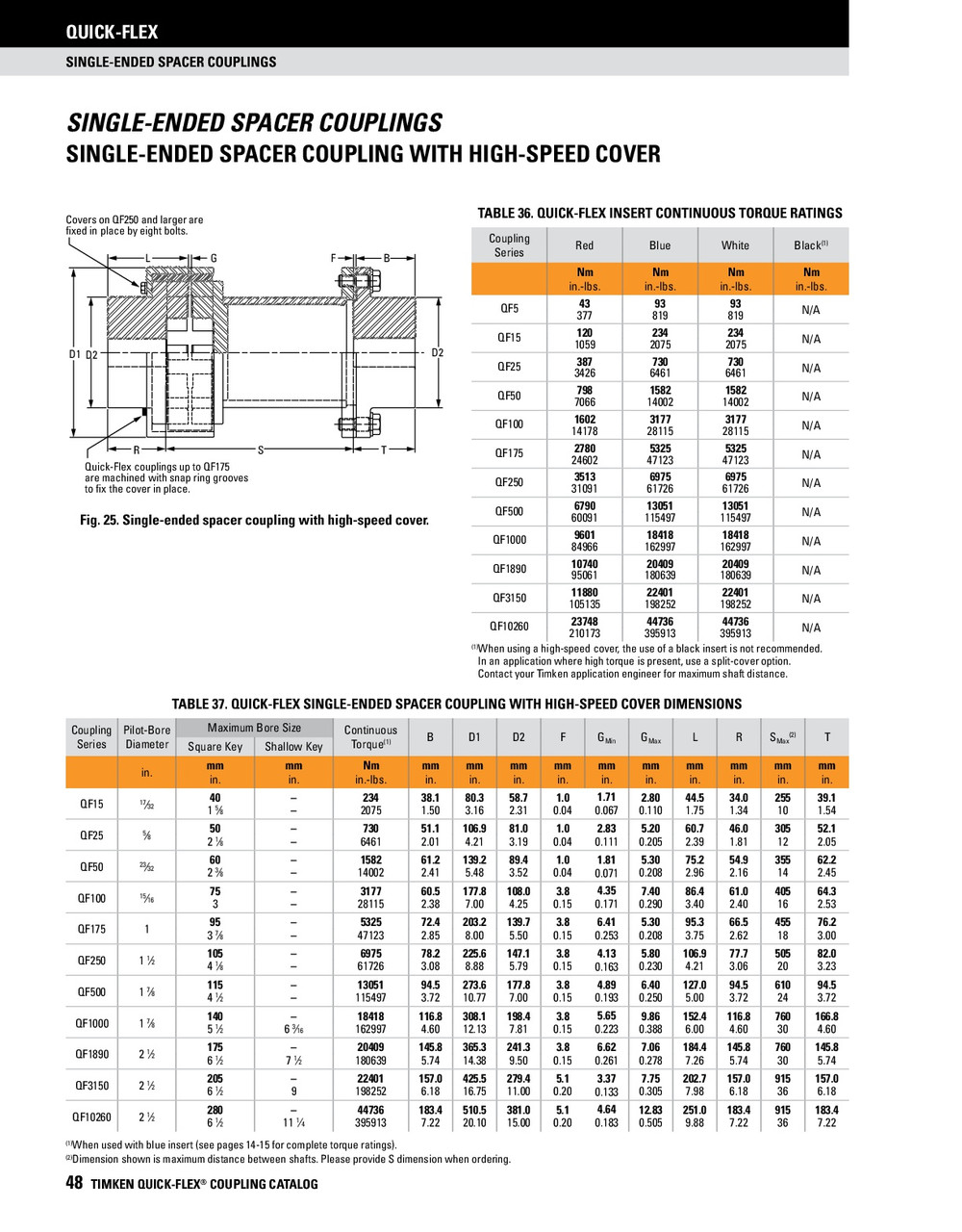

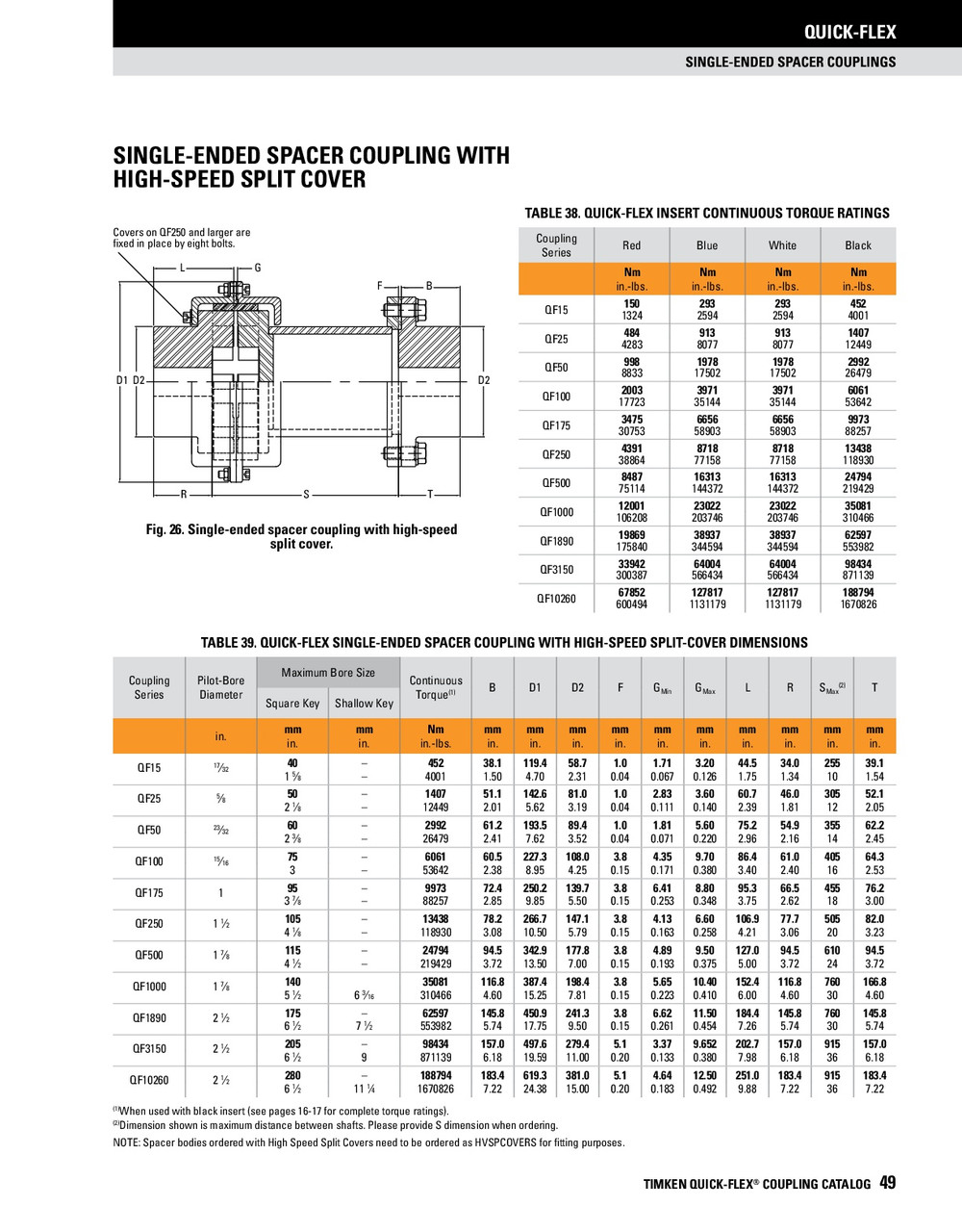

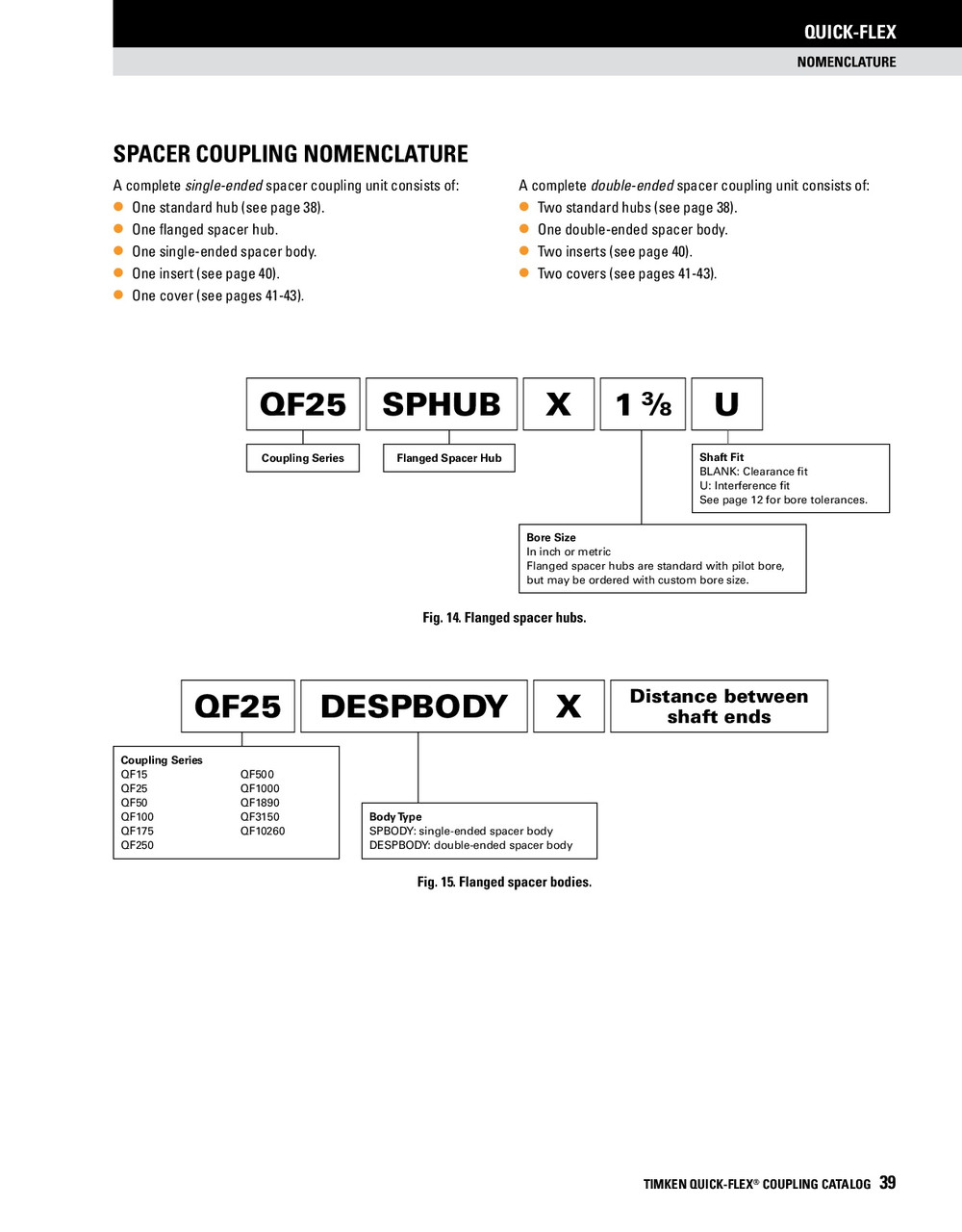

Timken Quick Flex Catalog

Timken stronger by design

Product Videos

Custom Field

Component type Spacer body

Spacer body width (S) 3-1/2"

Material Steel

*Note Please contact us and specify "S" dimension for custom widths
