Product Description
Product Features
Solid and split covers handle high speeds and torque
Design dampens torsional vibration and shock
Accepts shaft misalignment up to 2 degrees
Eliminates the need to move or disassemble the driving or driven equipment to replace the coupling insert
Versatility of design makes it a great tool for plant standardization
Accepts shaft sizes from 10 ~ 285 mm (0.37 ~ 11.25")
Peak handling torque from 0.085 ~ 377.5 knm (754 ~ 3,341,562 in.-lbs.)
Standard and double-ended spacer couplings available for shaft separations of 25.4 to 3,048 mm (1 ~ 120"), for increased application acceptance
Four bore options available to meet customers needs:
1) Bored, keyed and set screw style ~ clearance or interference fit
2) Bushing style (Dodge®, Browning® & QD style taper lock bushings)
3) Splined style
4) Mill-motor style (tapered shaft)
Stainless steel versions available for corrosive environments
Four insert choices for varying torque needs and temperature ranges, up to 177°C (350°F)
Replaces many common gear, grid and elastomeric couplings used in high and low torque applications to reduce plant complexity
Inherently balanced from precision machining of all components
Split-cover options help resist axial separating force under high torque

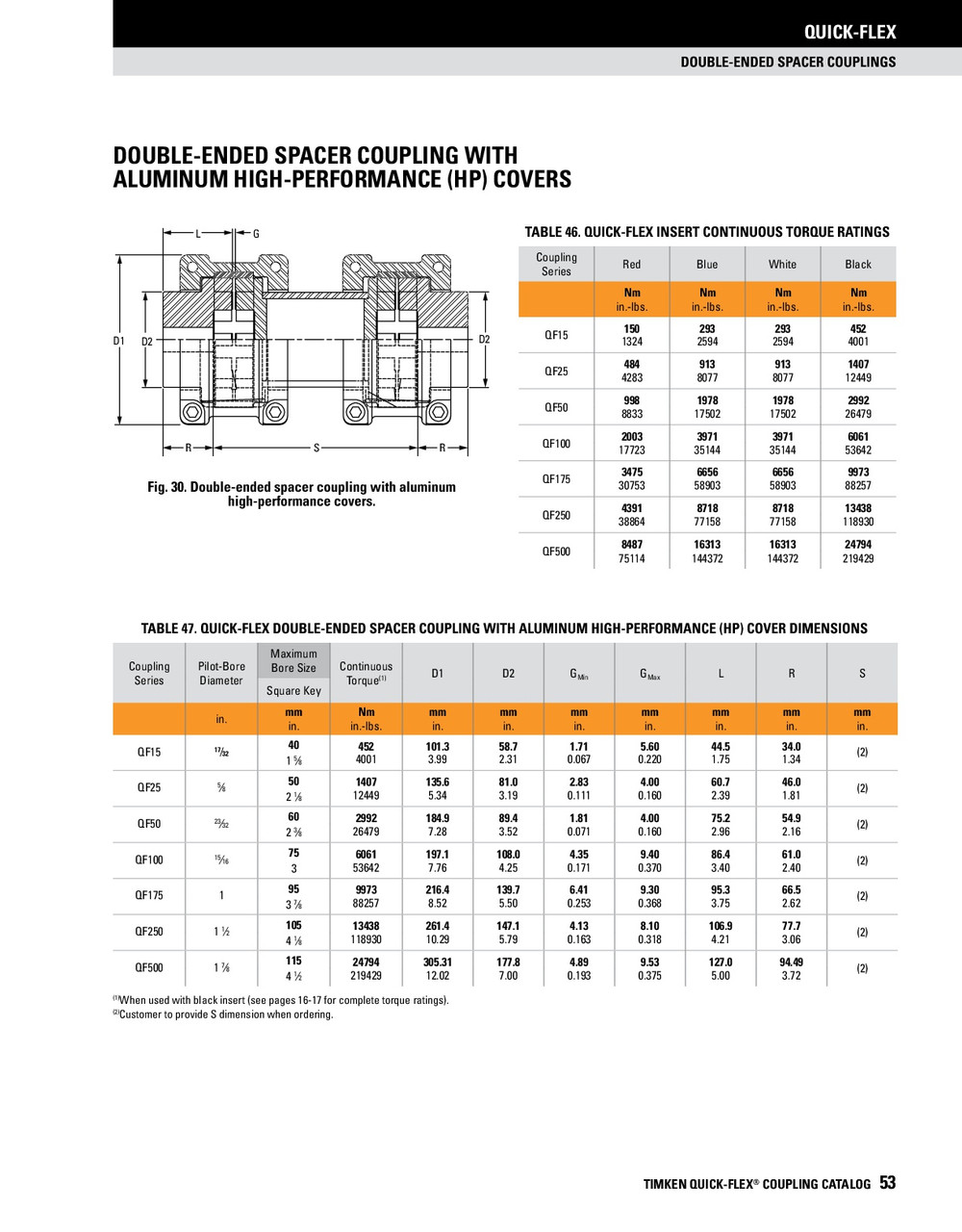

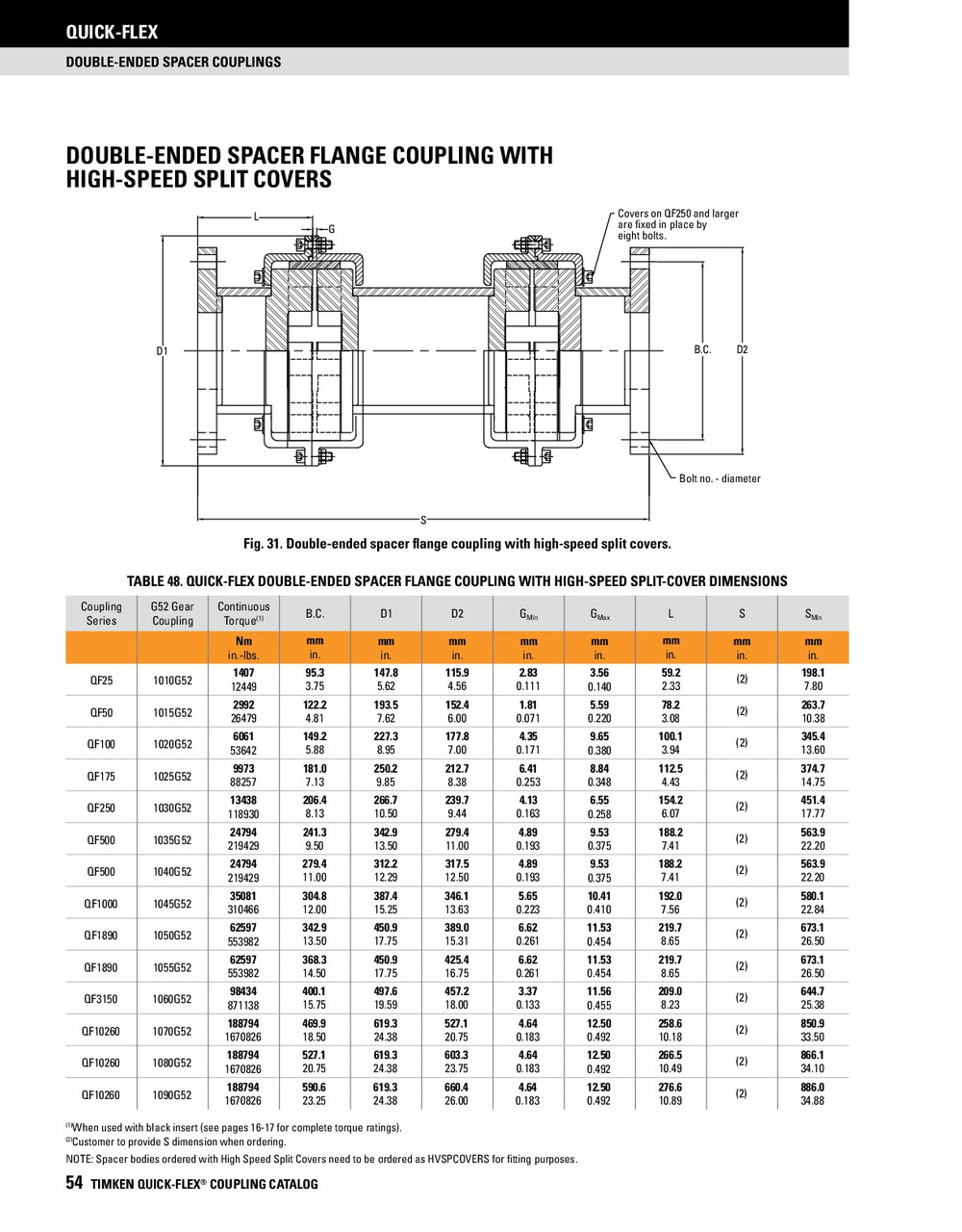

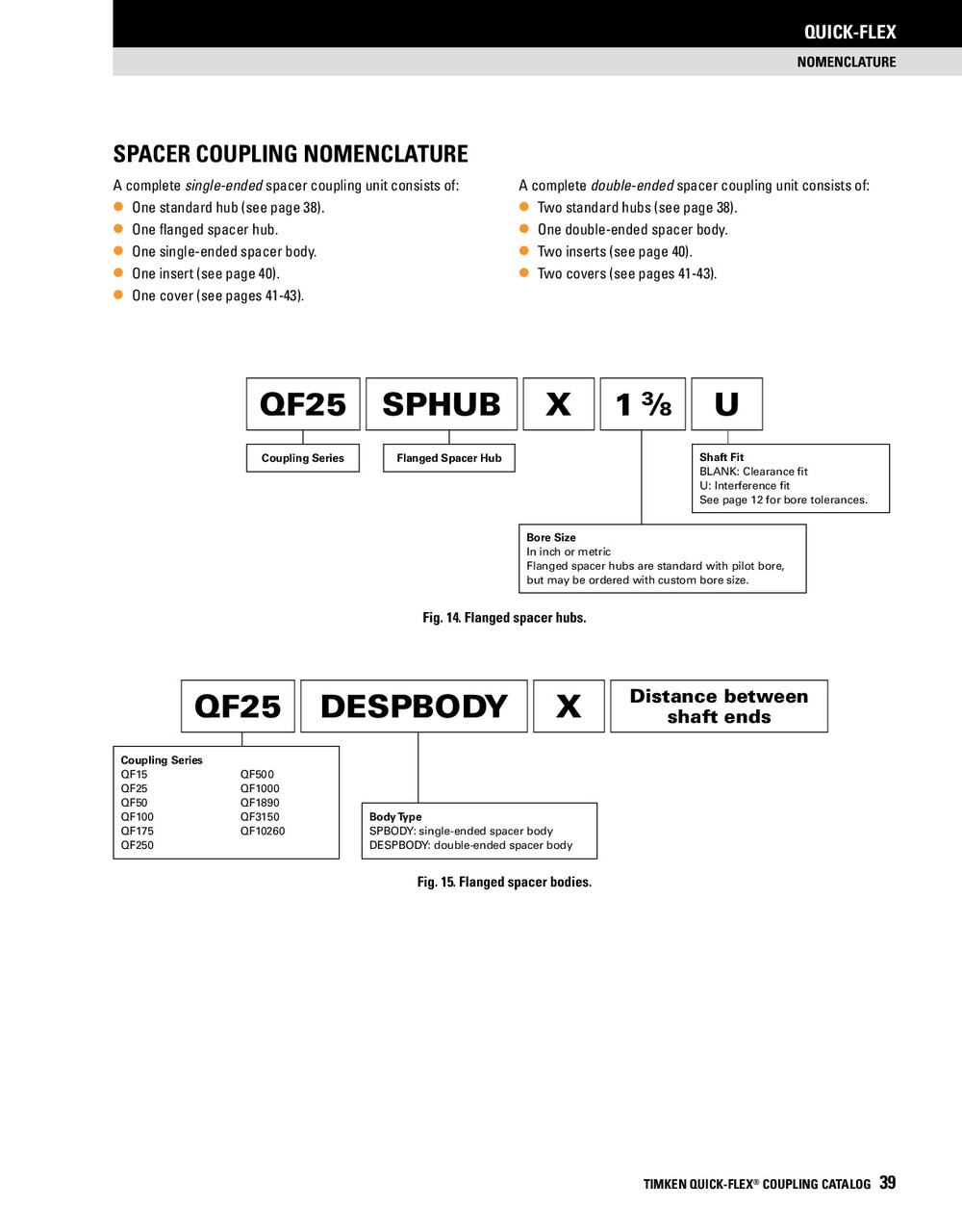

Timken Quick Flex Catalog
Timken stronger by design
Custom Field
Component type Spacer body
Classification Double ended
Spacer body width (S) 205mm
Material Steel
*Note Please contact us and specify "S" dimension for custom widths
