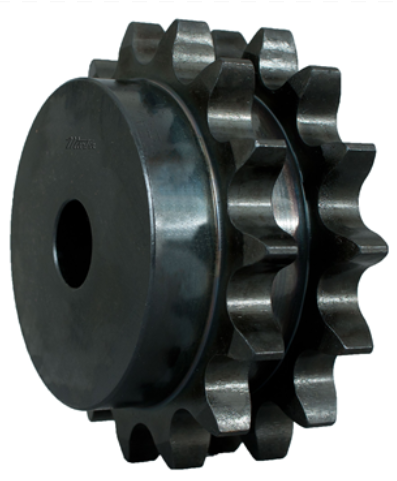

  • Plain Bore Double Tooth Sprocket D50B40
  • Plain Bore Double Tooth Sprocket D50B40

    • Plain Bore Double Tooth Sprocket D50B40

    Power-Link

    $0.00
    (No reviews yet) Write a Review
    SKU:
    PLI D50B40
    Weight:
    16.54 LBS
    Hardened tooth:
    No
    Stock bore:
    1-3/16"
    Tooth count:
    40
    Chain series:
    50
    Fits chain:
    50-2R
    Hub type:
    B
    Material:
    Carbon steel
    Finish:
    Black oxide
    Standards:
    ANSI/ASME

    Product Description

  • This double sprocket is typically attached to the shaft using a "keyway and two set screws".
  • These sprockets are listed with their "rough stock bores" but can have other shaft sizes machined into them by either Power-Link or the end user.
  • This sprocket is designed to accept a double strand roller chain where the chain travels in one direction, offering more strength than a single chain could provide.
  • If the application requires one chain to travel in one direction and another in the opposite direction (i.e. powered conveyor line with multiple rollers), a double single sprocket would be required instead.


    adobepdficon.pngPower-Link Catalog



    • Product Videos

    Custom Field

    Hardened tooth No
    Stock bore 1-3/16"
    Tooth count 40
    Chain series 50
    Fits chain 50-2R
    Hub type B
    Material Carbon steel
    Finish Black oxide
    Standards ANSI/ASME
