  • Nitrile Butadiene (NBR) 90 Durometer SAE Back-Up Ring 574-382
  • Nitrile Butadiene (NBR) 90 Durometer SAE Back-Up Ring 574-382
  • Nitrile Butadiene (NBR) 90 Durometer SAE Back-Up Ring 574-382
  • Nitrile Butadiene (NBR) 90 Durometer SAE Back-Up Ring 574-382
  • Nitrile Butadiene (NBR) 90 Durometer SAE Back-Up Ring 574-382

    • Nitrile Butadiene (NBR) 90 Durometer SAE Back-Up Ring 574-382

    DMR

    $0.00
    (No reviews yet) Write a Review
    SKU:
    DAE 574-382
    Weight:
    0.00 LBS
    Temperature range:
    -65 º F to 250 º F
    Usual colour:
    Black
    Hardness range:
    70 ~ 90 Shore A

    Product Description

  • The Nitrile Butadiene (NBR) compound has excellent resistance to a wide variety of fluids, good tensile strength, high elongation, low compression set, and excellent resistance to abrasion and tear
  • Back-up rings are washer-like devices that are used to prevent a seal from extruding through any gaps while under pressure. These seals are installed in the downstream side of the gland. Back-up rings are not seals themselves, but are usually used in conjunction with O-rings in high-pressure applications (over 1500 psi) for support or as spacers

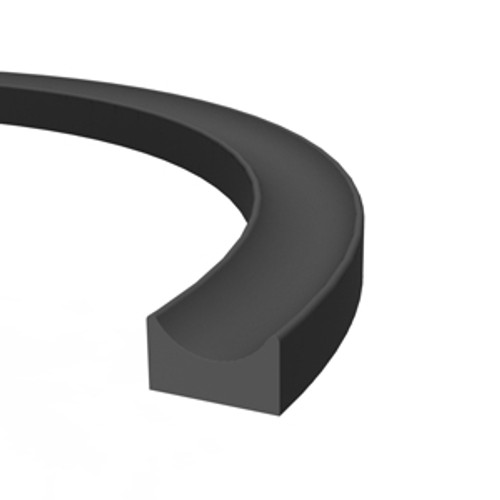

  • Molded from 90A durometer Buna nitrile rubber, the 574 series dished cross section back up rings provide excellent extrusion resistance. Stretched for installation, they return quickly to their original shape
  • Dash number sizes listed after the 574- prefix, correspond to its o-ring companion (i.e. 574-211 = 211 oring)

    Reference Dimensions:

  • 574-004 thru 574-050 (T = .049" & A = .045+/-.003")
  • 574-102 thru 574-178 (T = .053" & A = .045+/-.003")
  • 574-201 thru 574-284 (T = .050" & A = .040+/-.003")
  • 574-309 thru 574-395 (T = .076 & A = .060+/-.004")
  • 574-425 thru 574-475 (T = .117" & A= .096+/-.005")



     adobepdficon.png  DMR O-Rings & Related Sealing Materials



    •

    Product Videos

    Custom Field

    Temperature range -65 º F to 250 º F
    Usual colour Black
    Hardness range 70 ~ 90 Shore A
