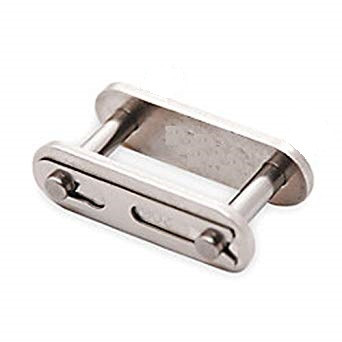

  • Nickel Plated Double Pitch Conveyor Chain Spring Clip Connector Link DRV-C2040-1 SC CO LINK NP
  • Nickel Plated Double Pitch Conveyor Chain Spring Clip Connector Link DRV-C2040-1 SC CO LINK NP
  • Nickel Plated Double Pitch Conveyor Chain Spring Clip Connector Link DRV-C2040-1 SC CO LINK NP
  • Nickel Plated Double Pitch Conveyor Chain Spring Clip Connector Link DRV-C2040-1 SC CO LINK NP
  • Nickel Plated Double Pitch Conveyor Chain Spring Clip Connector Link DRV-C2040-1 SC CO LINK NP
  • Nickel Plated Double Pitch Conveyor Chain Spring Clip Connector Link DRV-C2040-1 SC CO LINK NP
  • Nickel Plated Double Pitch Conveyor Chain Spring Clip Connector Link DRV-C2040-1 SC CO LINK NP
  • Nickel Plated Double Pitch Conveyor Chain Spring Clip Connector Link DRV-C2040-1 SC CO LINK NP
  • Nickel Plated Double Pitch Conveyor Chain Spring Clip Connector Link DRV-C2040-1 SC CO LINK NP
  • Nickel Plated Double Pitch Conveyor Chain Spring Clip Connector Link DRV-C2040-1 SC CO LINK NP

    • Nickel Plated Double Pitch Conveyor Chain Spring Clip Connector Link DRV-C2040-1 SC CO LINK NP

    Timken/Drives

    $5.05
    (No reviews yet) Write a Review
    SKU:
    DRV-C2040-1 SC CO LINK NP
    UPC:
    UPC 642051301707
    Weight:
    0.03 LBS
    Former "Drives" identification number:
    30170
    Chain classification:
    ANSI C2040
    Chain strands:
    1
    Quantity:
    1 link
    Link type:
    Spring clip connecting link
    Material:
    Nickel plated carbon steel
    Adding to cart… category.add_cart_announcement

    Product Description

    NICKEL PLATED CHAIN (NP)

  • Nickel-plated chain is designed to resist rusting from incidental contact or exposure to water or water-based washdown operations
  • All components are identical to our carbon steel components with the addition of electroless nickel plating being applied prior to assembly. This plating provides initial coverage of all exposed carbon material and provides uniform and comprehensive protection to all surfaces
  • Special attention is placed on the afterplating processes to help remove the possibility of hydrogen embrittlement which is a common occurrence in lesser-quality chain produced by other manufacturers
  • Nickel-plated chain is equal in strength and wear life to plain our carbon steel chain

    CONNECTING LINKS
  • Standard connecting links are used when roller chain is operating under normal conditions
  • Spring-clip style connecting links are used for sizes 60H and smaller denoted by "S/C CO LINK"
  • Sizes 80 ~ 180H typically use a single special hardened "Sheppards" hook cotter pin denoted by "CT CO LINK SH"
  • Traditionl dual split cottered key connector links are also available in select chain sizes denoted by "SPL END CK"
  • Coated T-pins are used on chain sizes 200, 240 and 264 denoted by "CT CO LINK"
  • For severe applications, press fit connecting links are suggested denoted by "PF CO LINK"

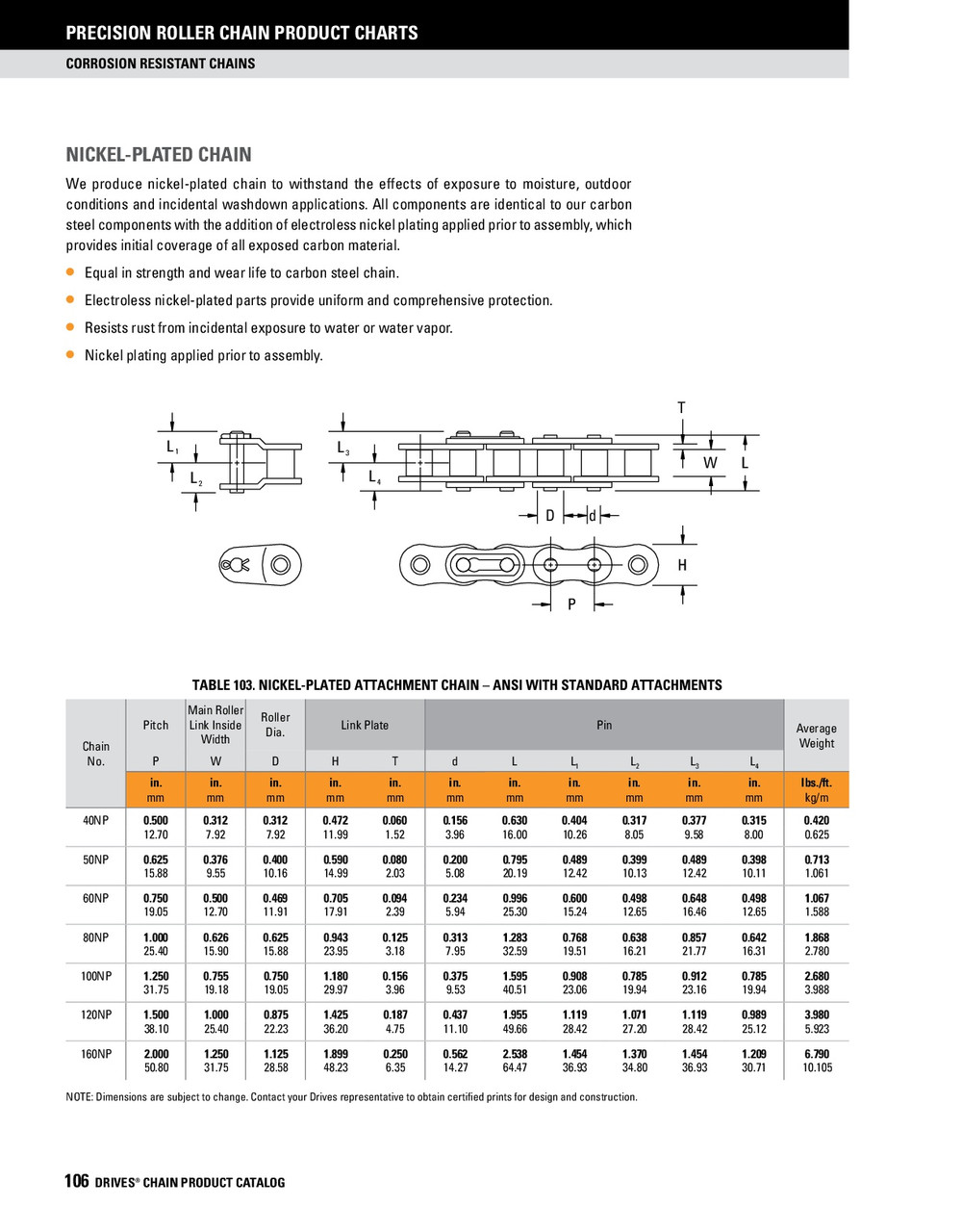

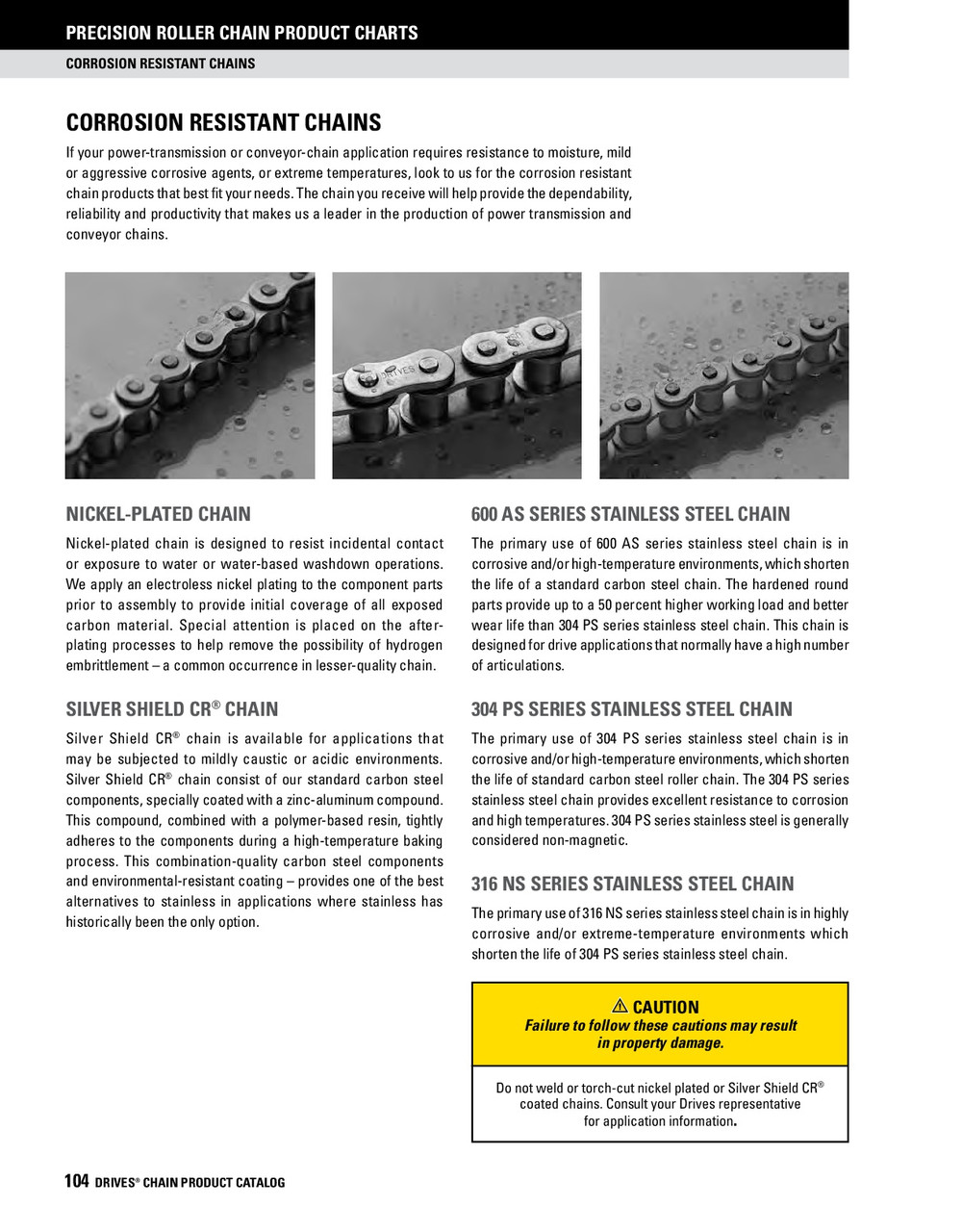

    adobepdficon.png Timken Drives General Catalog

    Follow this link to access Timken's "Drives" customized roller chain attachment software.

    • Product Videos

    Custom Field

    Former "Drives" identification number 30170
    Chain classification ANSI C2040
    Chain strands 1
    Quantity 1 link
    Link type Spring clip connecting link
    Material Nickel plated carbon steel
