    Timken

    $5.66
    (No reviews yet) Write a Review
    SKU:
    TIM 102496
    UPC:
    UPC 070964408747
    Weight:
    0.00 LBS
    HTS code:
    3926.90.9990
    Adding to cart… category.add_cart_announcement

    Product Description

  • Sheave condition and alignment are vital to v-belt life and performance.
  • New v-belts should never be installed without a thorough inspection of the sheaves.
  • Particular attention should be given to wobbling sheaves, a shiny groove bottom and worn groove sidewalls.

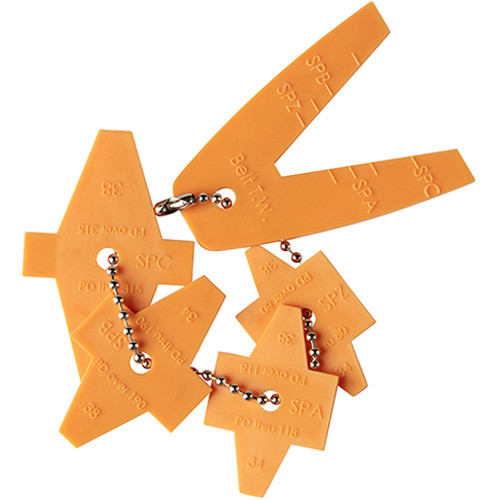

  • Use the sheave gauge to accurately check grooves for wear.

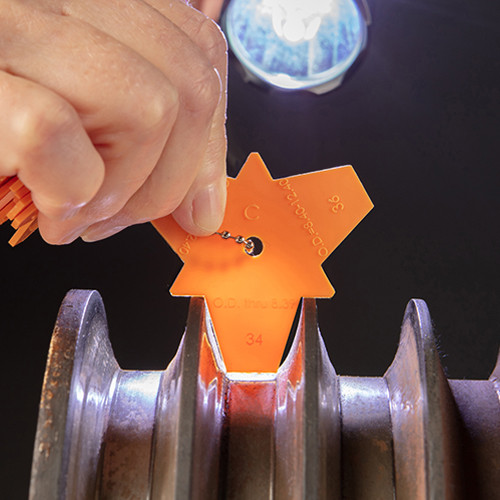

  • A flashlight held behind the template, when placed in the groove, will help you observe the amount of wear.
  • Wear should not exceed 1/32" for individual v-belt drives and 1/64" for banded belt drives.
  • Sheave gauges are based upon the standards for classical belts from the Association for Rubber Products Manufacturers ARPM IP-20, wedge belts ARPM IP-22 and metric belts ISO 4183.

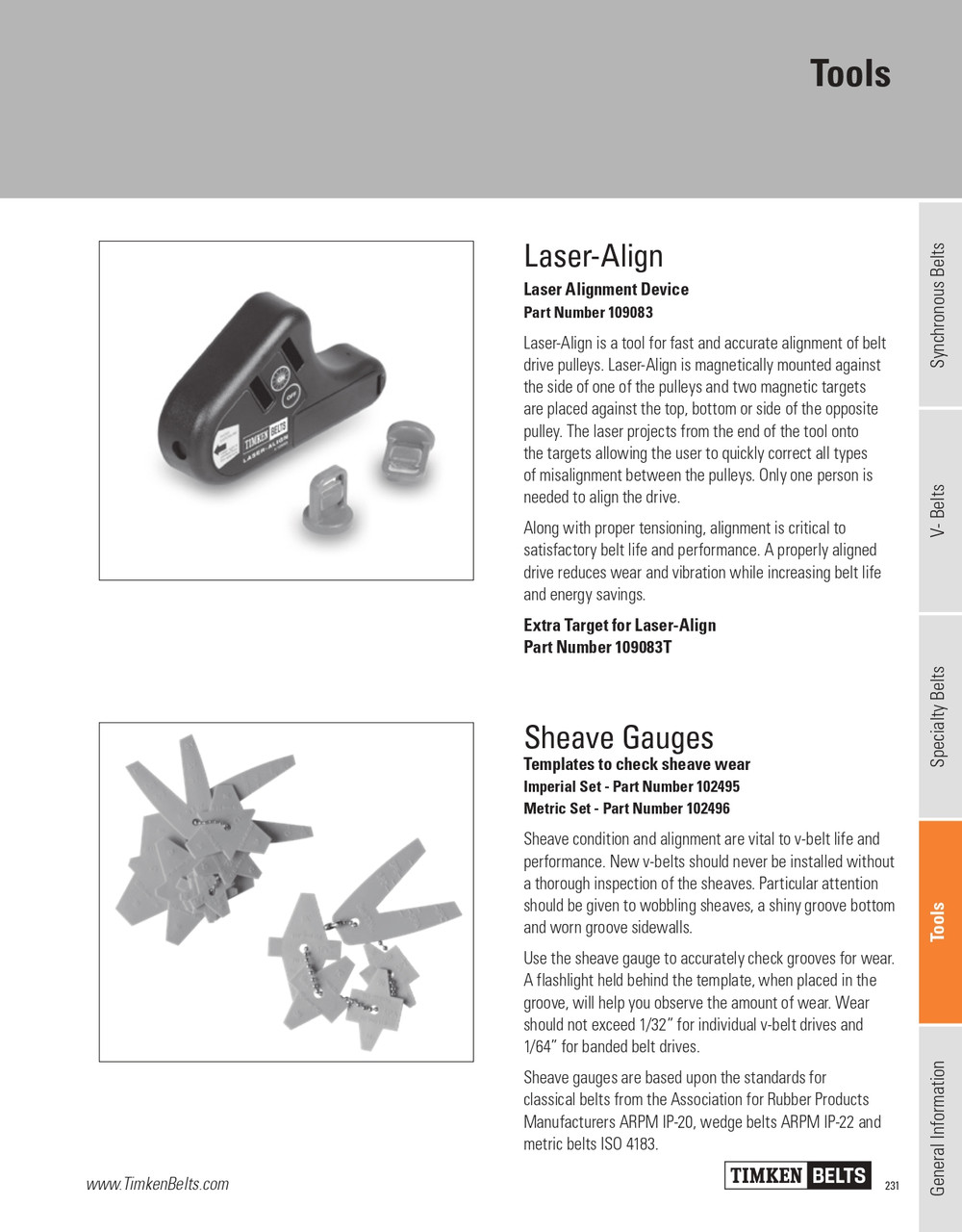

    adobepdficon.png Timken Belts Catalog

    Please use this link to use the Timken belt interchange/cross-reference TIMKEN BELTS INTERCHANGE
