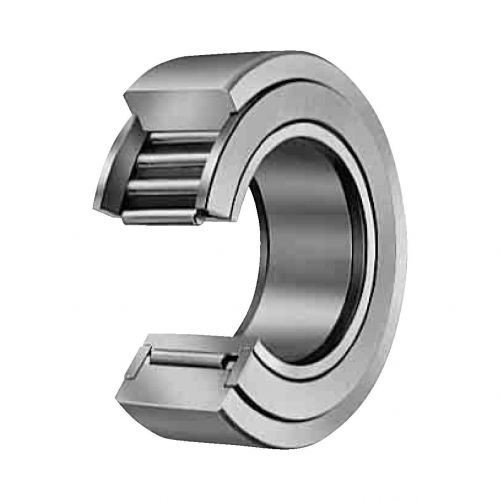

  • Metric Crowned Non Seperable Roller Follower NART 50 R
  • Metric Crowned Non Seperable Roller Follower NART 50 R
  • Metric Crowned Non Seperable Roller Follower NART 50 R

    • Metric Crowned Non Seperable Roller Follower NART 50 R

    IKO

    $195.88
    (No reviews yet) Write a Review
    SKU:
    IKO NART 50 R
    Weight:
    0.00 LBS
    Inner diameter:
    50mm
    Outer diameter:
    90mm
    Width:
    30mm
    B dimension:
    32mm
    Inner ring included:
    Yes
    Sealed:
    Yes
    Series:
    Metric
    Adding to cart… category.add_cart_announcement

    Product Description

  • IKO® roller followers are bearings designed for outer ring rotation, in which needle rollers are incorporated in a thick walled outer ring. Both crowned and cylindrical outer rings are available. The outer rings run directly on mating cam guide surfaces, and the crowned outer ring is effective in relieving the edge load caused by mounting errors. The cylindrical outer ring, on the other hand, has a large contact area with the mating cam guide surface and is suitable for applications involving large loads or low cam guide surface hardness. In roller followers, there are two types of bearings available, the caged type and the full complement type. The caged type is useful for applications at high-speed rotation. The full complement type, on the other hand, is suitable for heavy-load applications at low-speed rotation or oscillating motions. Roller followers include separable and non-separable types. Also, in addition to the open type, shield type and sealed type are available. The clearances between the side plates and outer ring of the shield type are narrow, and form labyrinths. In the sealed type, special synthetic rubber seals are assembled in these clearances, and they are effective in preventing penetration of dust and dirt. These bearings are available in a variety of types to suit almost any kind of application. They are widely used for cam mechanisms and for linear motions of conveying equipment.

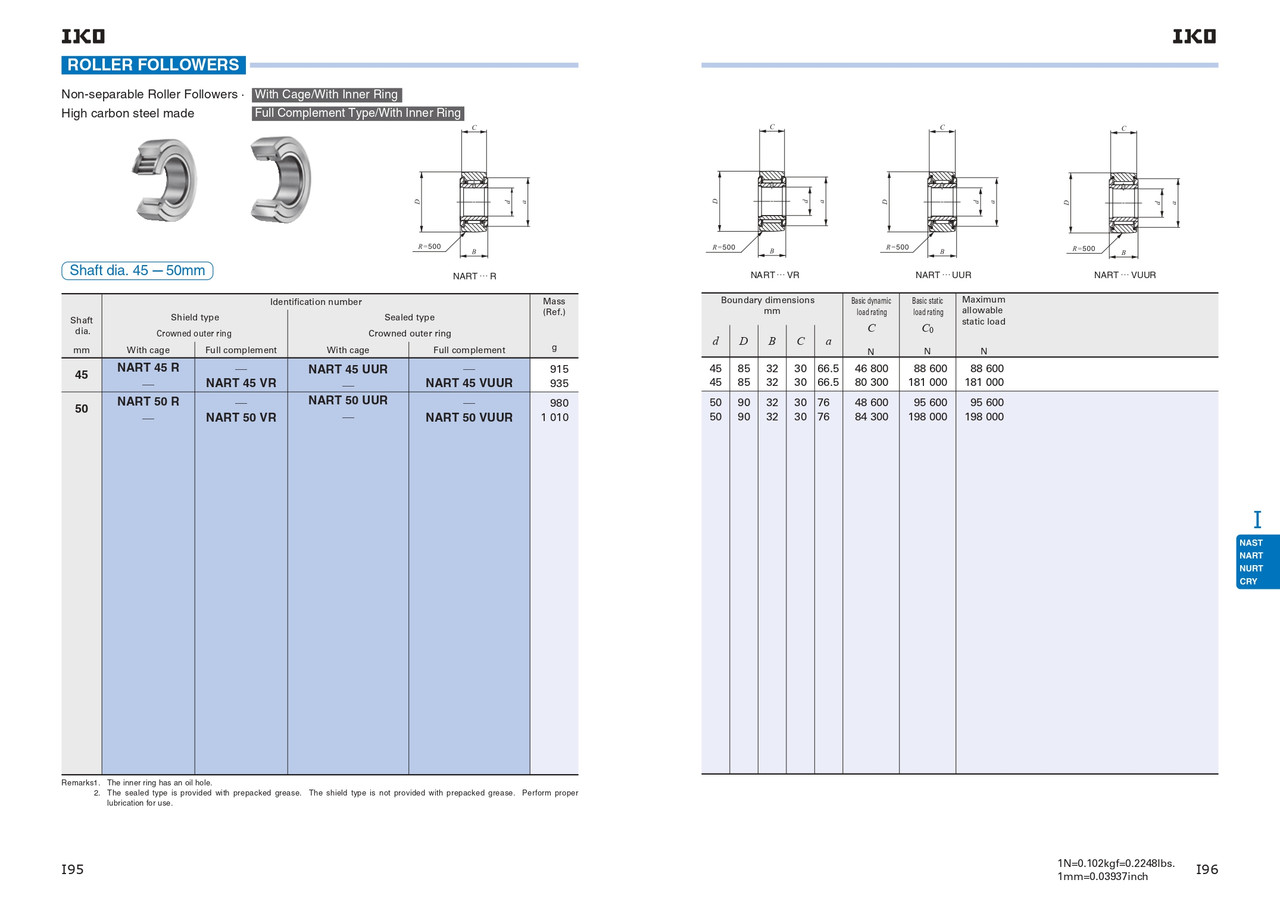

    adobepdficon.png IKO Catalog

    • Product Videos

    Custom Field

    Inner diameter 50mm
    Outer diameter 90mm
    Width 30mm
    B dimension 32mm
    Inner ring included Yes
    Sealed Yes
    Series Metric
