Internal Metric Phosphated Standard Retaining Ring DHO-020-PA

Overview
Reviews

Product Description

With regards to the DHO series retaining rings, only the black phosphate coated (DHO-PA) and stainless steel (DHO-H) rings are listed in this database, however other finishes are available upon special request

Alternate Finishes Available:

(DHO-ZD) Yellow Zinc Dichromate - It affords the metal excellent salt spray protection (96 hours) and is particularly effective for applications exposed to seawater. This retaining rings zinc plated finish utilizes a mechanical plating process which effectively eliminates hydrogen embrittlement

(DHO-Z3X) Trivalent Chromate Zinc Plus Sealer

(DHO-ZF) Clear Bright Zinc

DMR Retaining Rings

Product Videos

Custom Field

Material finish Phosphate coating

Ring material Carbon spring steel (SAE 1060-1090/UNS G10600-G10900)

RoHS & ELV compliant Yes

Size range 8.00 ~ 400.00 mm

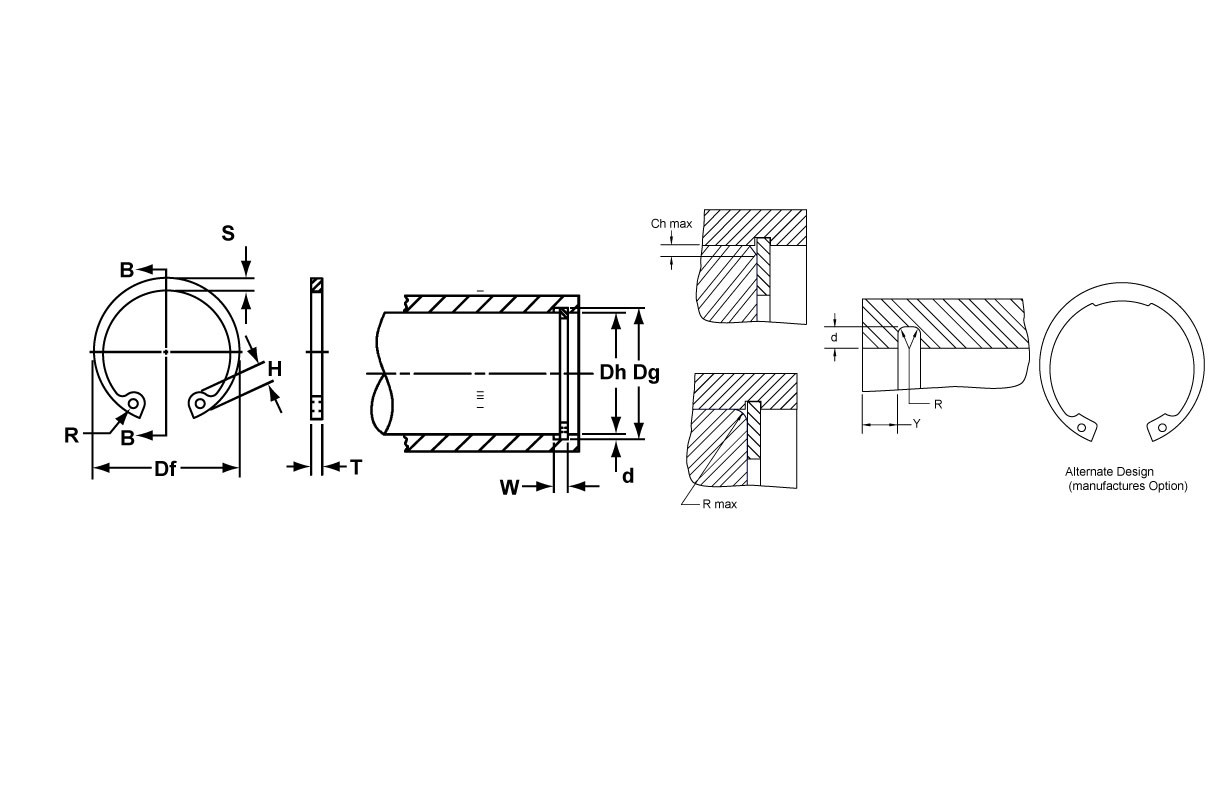

*Note The radius "R" on the load side must not exceed 0.1 T

Classification DIN-472/D1300 (DHO)

Recommendation The standard finish is recommended over unfinished plain steel since it offers an extended shelf-life protection against rusting
