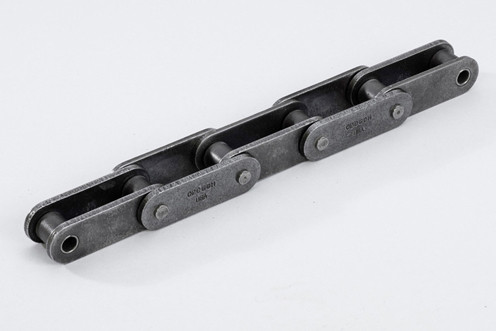

Heavy Double Pitch Riveted Conveyor Chain - 100' Reel DRV-C2080H-1R-100FTNCA

PLAIN FINISH CARBON STEEL CHAIN

Cut-to-length chain sizes are available upon special order

Chain sizes 35 ~ 60H are supplied with spring clip connector links whereas size 80 and larger are supplied with cottered connector links in the box

Multiple-strand widths are available in most sizes

HR RIVETED SERIES CHAIN

Case-hardened Pins

Offset links available

Cut-to-length chain available

60H slip-fit spring clip connector standard; however Cotter is also available upon request

80H ~ 120H slip-fit, Sheppards hook-style cotter connecting link is standard in the box. Press-fit connecting link is also available upon request

Other multiple-row sizes available

Cotter style available upon request

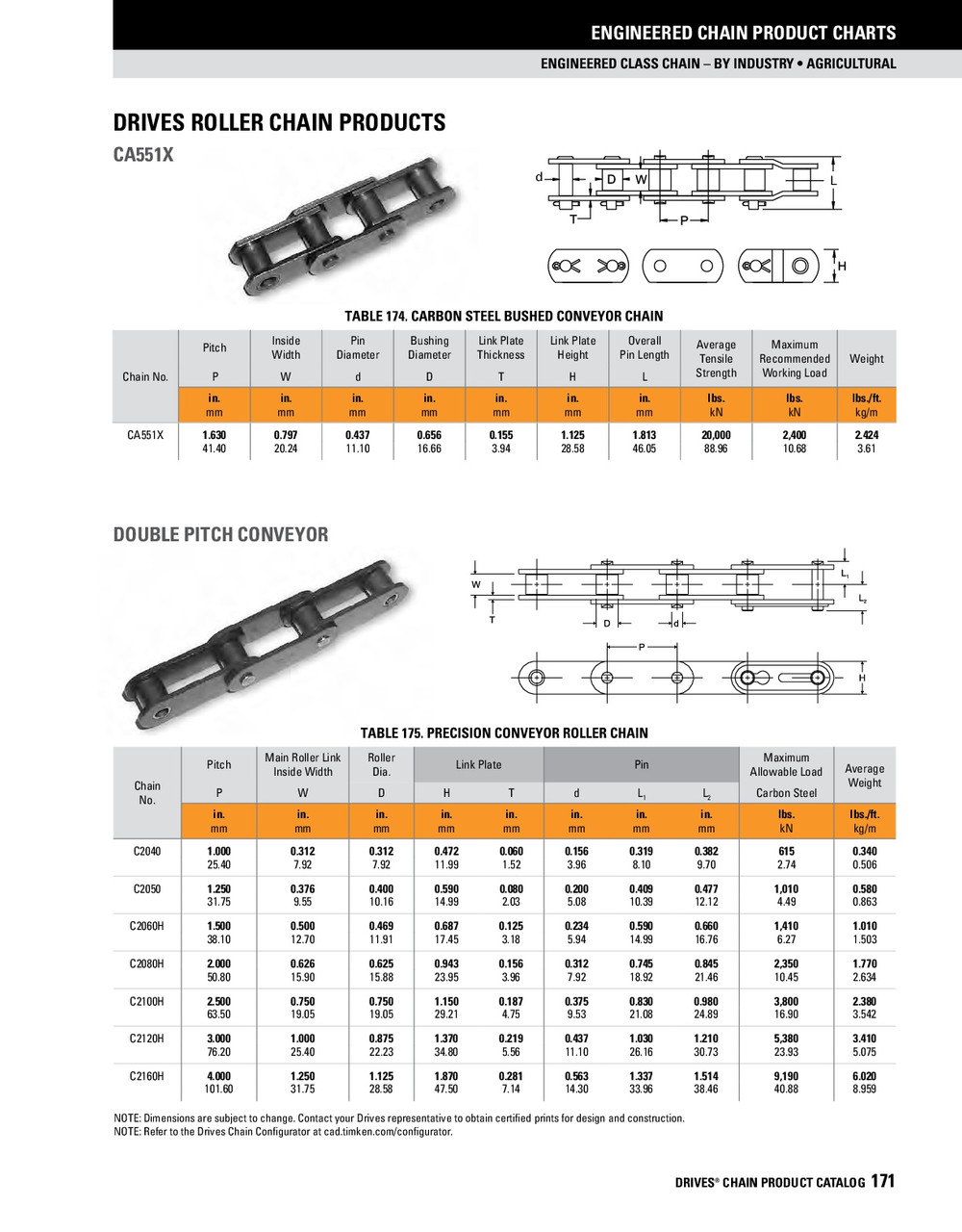

Timken Drives General Catalog

Follow this link to access Timken's "Drives" customized roller chain attachment software.

Former "Drives" identification number 43356

Chain classification ANSI C2080H

Chain strands 1

Continuous chain length 100'

Packaging Reinforced reel

Link type Riveted lengths

Material Carbon steel

Write a Review

Timken/Drives
