Heavy Double Pitch Conveyor Chain Offset Link DRV-C2080H-1 DOFF LINK

PLAIN FINISH CARBON STEEL CHAIN

Cut-to-length chain sizes are available upon special order

Chain sizes 35 ~ 60H are supplied with spring clip connector links whereas size 80 and larger are supplied with cottered connector links in the box

Multiple-strand widths are available in most sizes

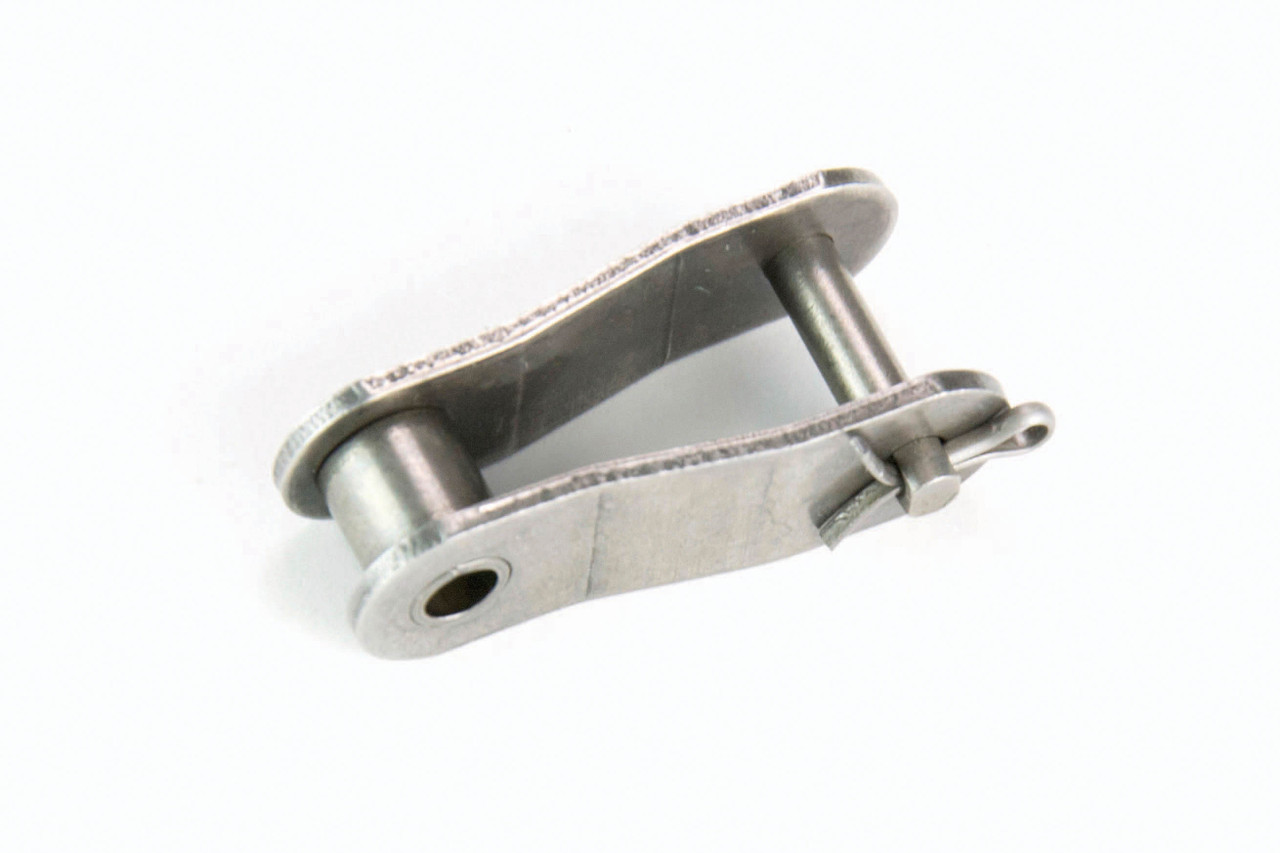

OFFSET LINKS

Offset links are used when the chain length is an odd number of pitches; however, their fatigue strength is lower than standard chain links

Using offsets should be avoided when possible

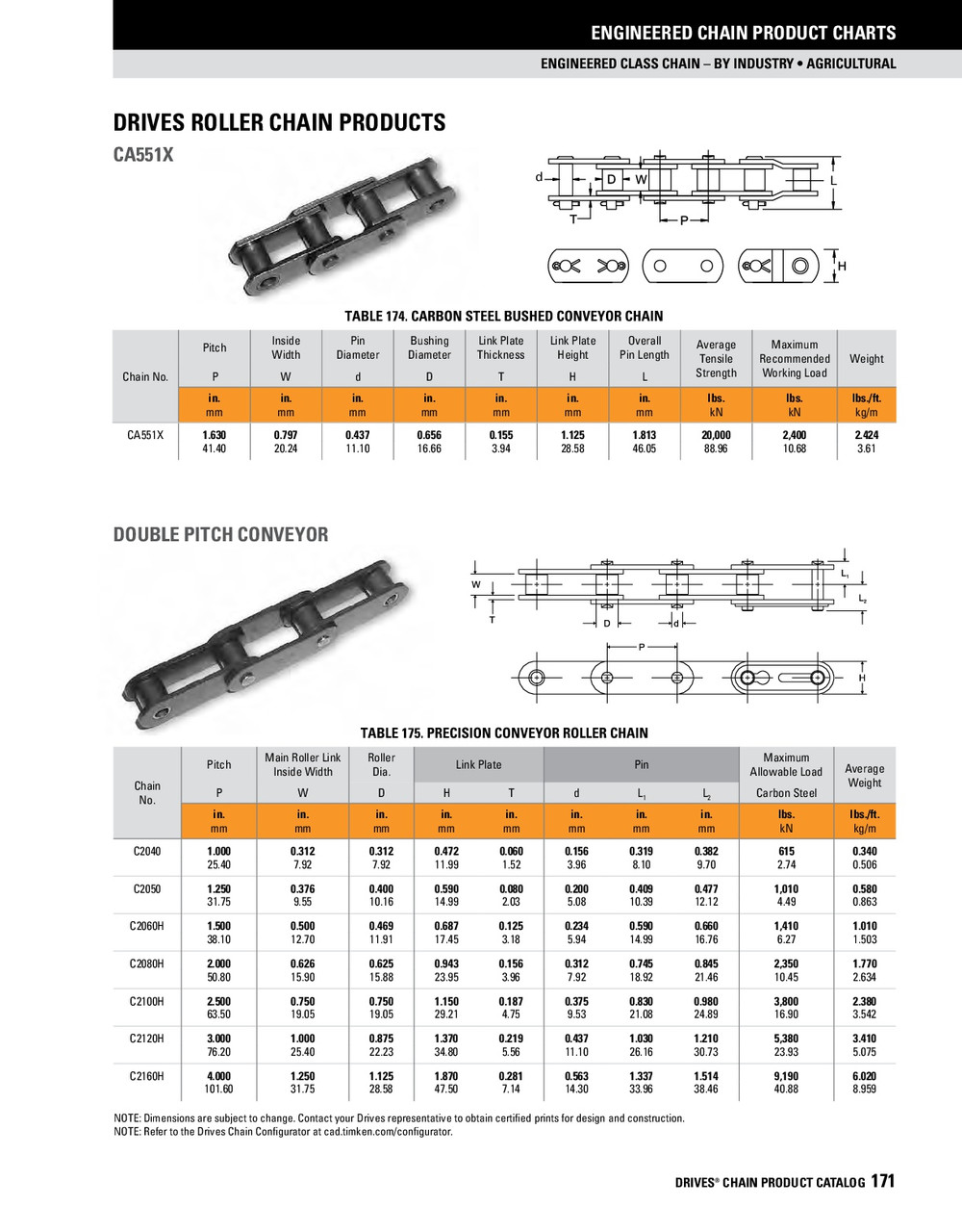

Timken Drives General Catalog

Follow this link to access Timken's "Drives" customized roller chain attachment software.

Former "Drives" identification number 32852

Chain classification ANSI C2080H

Chain strands 1

Quantity 1 link

Link type Cottered offset half link

Material Carbon steel
