  • Hardened "QD" Split Taper Lock Bushing Sprocket H140J40
  • Hardened "QD" Split Taper Lock Bushing Sprocket H140J40

    • Hardened "QD" Split Taper Lock Bushing Sprocket H140J40

    Ringball

    $1,078.51
    (No reviews yet) Write a Review
    SKU:
    RBL H140J40
    Weight:
    98.00 LBS
    Chain series:
    140
    Tooth count:
    40
    Hardened tooth:
    Yes
    Bushing series:
    J
    Finish:
    Black oxide
    Standards:
    ANSI/ASME
    Adding to cart… category.add_cart_announcement

    Product Description

  • Taper lock sprockets are a type of sprocket that use a tapered bushing and flange system to provide a secure, easy-to-install locking mechanism on a shaft, allowing for flexibility in bore size without replacing the entire sprocket.
  • They are used for power transmission via roller chains in various machinery.
  • The design, which includes a split through the taper and flange, allows for faster and easier fitting onto a shaft and simple removal using jackscrews.
  • Taper lock sprockets can accommodate different shaft diameters simply by changing the accompanying taper lock bushing, eliminating the need to purchase a new sprocket for every bore size.
  • When installed, the tapered bushing compresses onto the shaft, ensuring a tight and firm grip and improved centering compared to other systems.

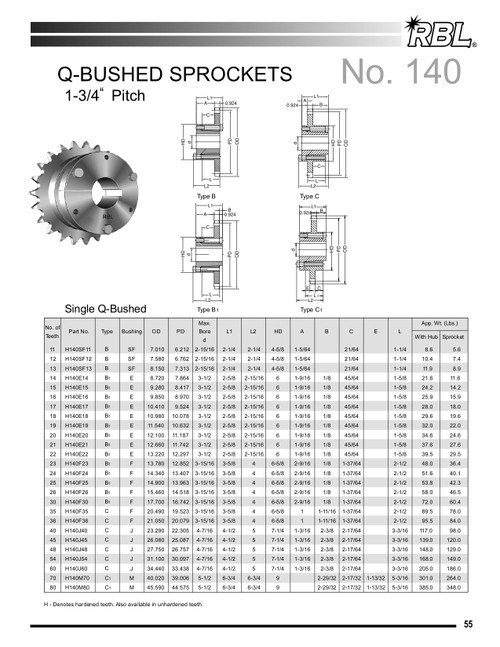

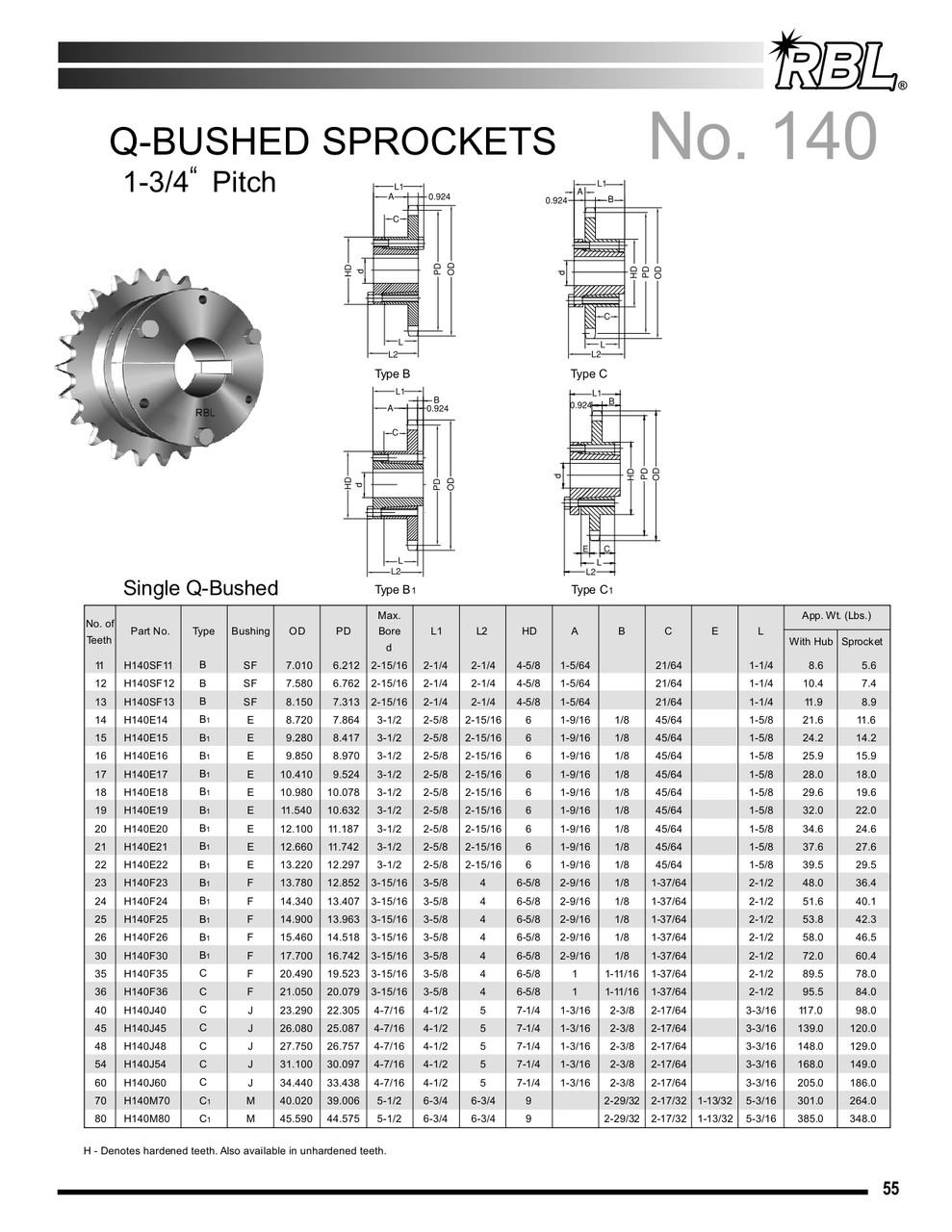

    adobepdficon.pngRingball Sprocket Catalog



    • Product Videos

    Custom Field

    Chain series 140
    Tooth count 40
    Hardened tooth Yes
    Bushing series J
    Finish Black oxide
    Standards ANSI/ASME
