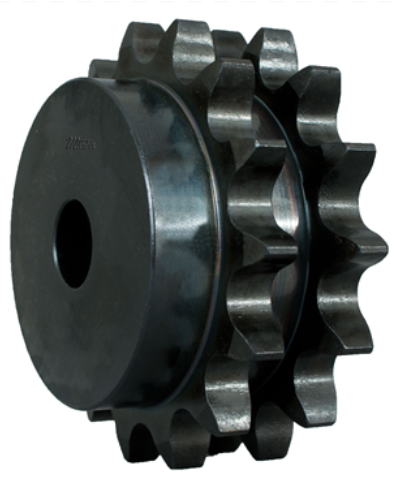

  • Hardened Plain Bore Double Tooth Sprocket D50B14H
  • Hardened Plain Bore Double Tooth Sprocket D50B14H

    • Hardened Plain Bore Double Tooth Sprocket D50B14H

    Power-Link

    $0.00
    (No reviews yet) Write a Review
    SKU:
    PLI D50B14H
    Weight:
    1.86 LBS
    Hardened tooth:
    Yes
    Stock bore:
    5/8"
    Tooth count:
    14
    Chain series:
    50
    Fits chain:
    50-2R
    Hub type:
    B
    Material:
    Carbon steel
    Finish:
    Black oxide
    Standards:
    ANSI/ASME

    Product Description

  • This double sprocket is typically attached to the shaft using a "keyway and two set screws".
  • These sprockets are listed with their "rough stock bores" but can have other shaft sizes machined into them by either Power-Link or the end user.
  • This sprocket is designed to accept a double strand roller chain where the chain travels in one direction, offering more strength than a single chain could provide.
  • If the application requires one chain to travel in one direction and another in the opposite direction (i.e. powered conveyor line with multiple rollers), a double single sprocket would be required instead.

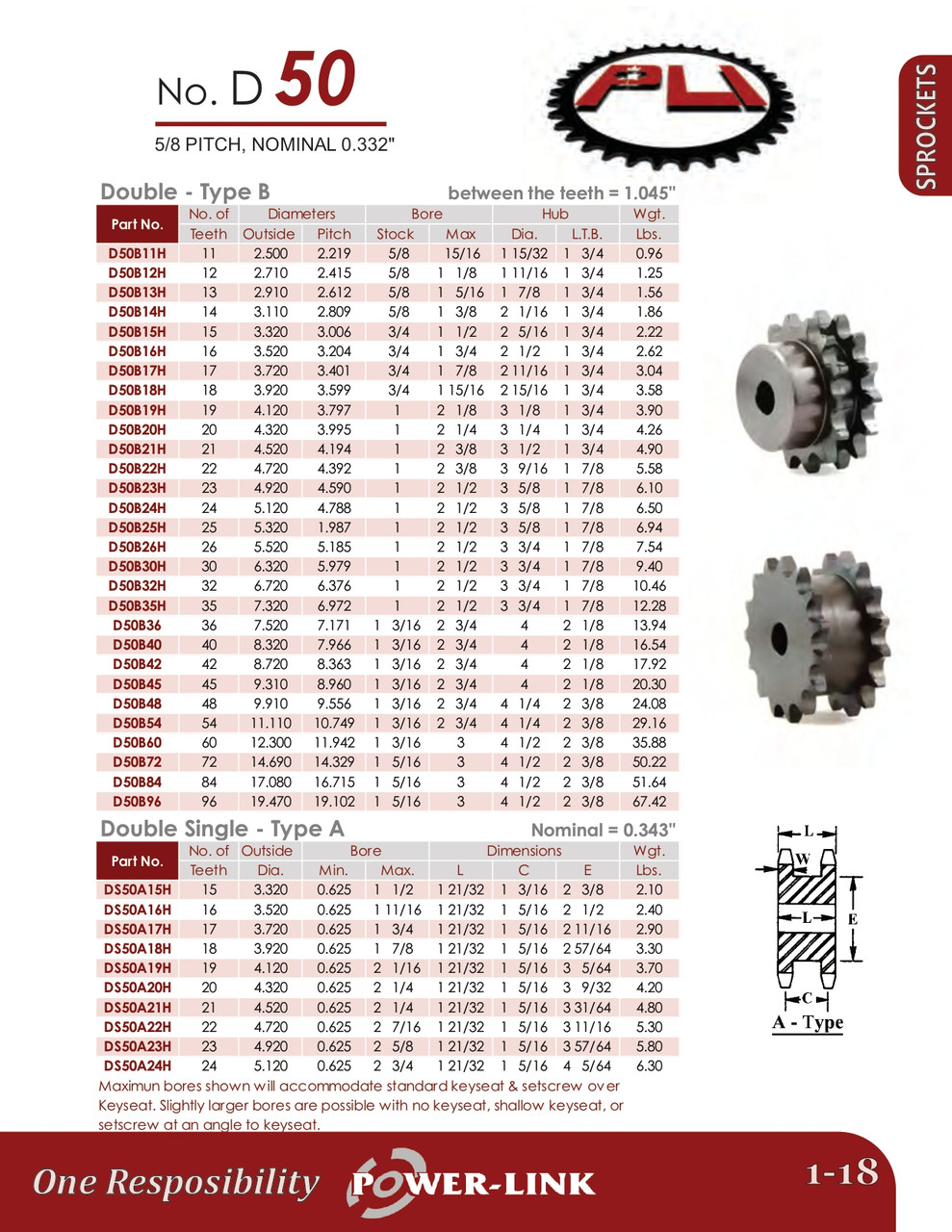

    adobepdficon.pngPower-Link Catalog



    • Product Videos

    Custom Field

    Hardened tooth Yes
    Stock bore 5/8"
    Tooth count 14
    Chain series 50
    Fits chain 50-2R
    Hub type B
    Material Carbon steel
    Finish Black oxide
    Standards ANSI/ASME
