  • Hardened Plain Bore Double Single Tooth Sprocket DS50A17H
  • Hardened Plain Bore Double Single Tooth Sprocket DS50A17H
  • Hardened Plain Bore Double Single Tooth Sprocket DS50A17H

    • Hardened Plain Bore Double Single Tooth Sprocket DS50A17H

    Power-Link

    $0.00
    (No reviews yet) Write a Review
    SKU:
    PLI DS50A17H
    Weight:
    2.90 LBS
    Hardened tooth:
    Yes
    Stock bore:
    5/8"
    Tooth count:
    17
    Chain series:
    50
    Fits chain:
    50-1R
    Hub type:
    A
    Material:
    Carbon steel
    Finish:
    Black oxide
    Standards:
    ANSI/ASME

    Product Description

  • This double single sprocket is attached to the shaft using a "keyway and two set screws".
  • These sprockets are listed with their "rough stock bores" but can have other shaft sizes machined into them by either Power-Link or the end user.

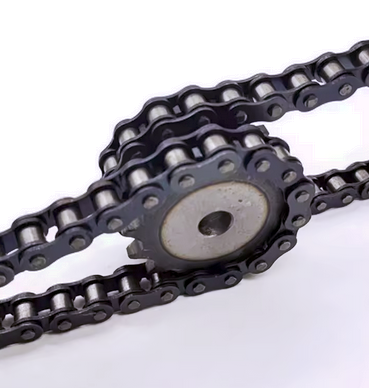

  • This special sprocket is designed to accept two single strand roller chains where the chains travels in opposite directions (i.e. powered conveyor line with multiple rollers).

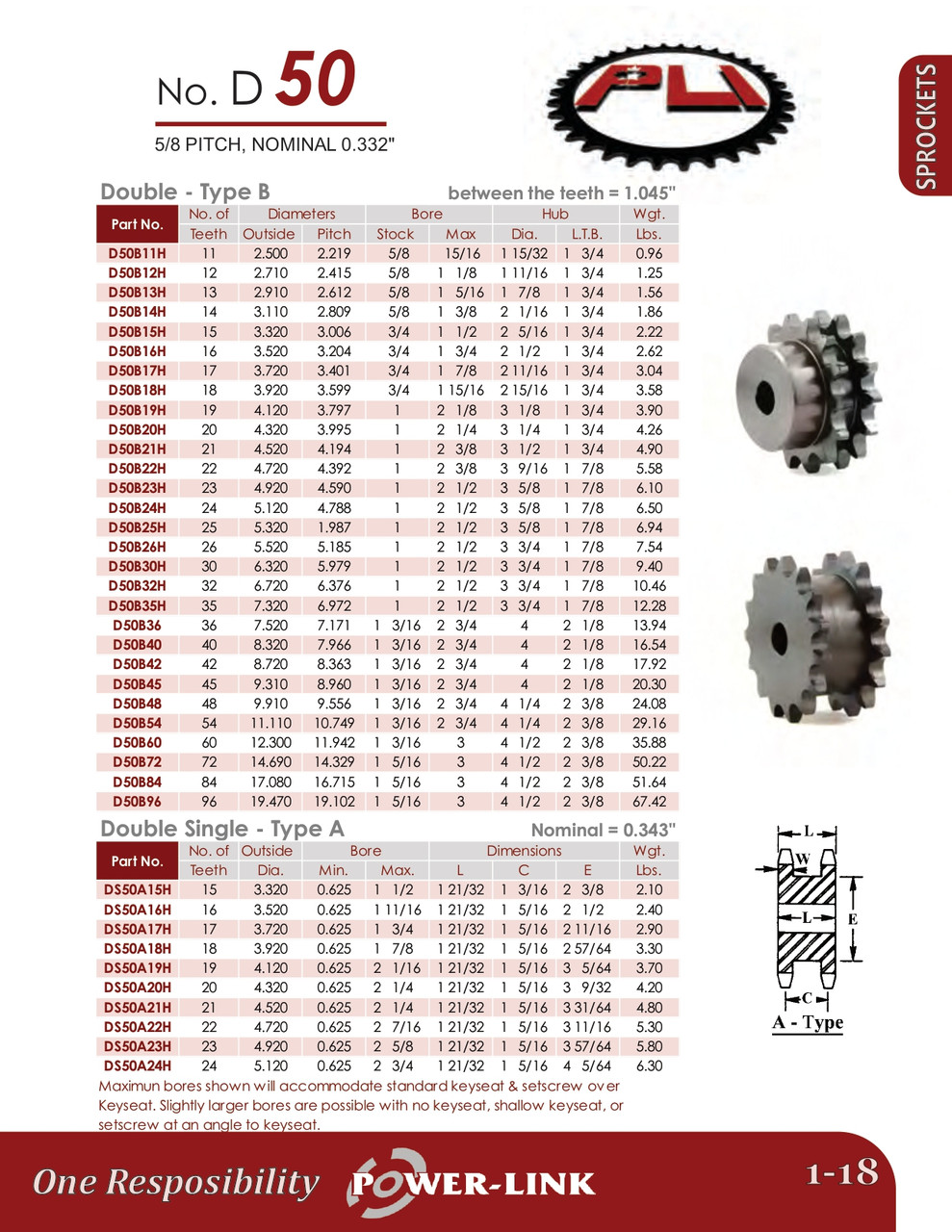

    adobepdficon.pngPower-Link Catalog



    • Product Videos

    Custom Field

    Hardened tooth Yes
    Stock bore 5/8"
    Tooth count 17
    Chain series 50
    Fits chain 50-1R
    Hub type A
    Material Carbon steel
    Finish Black oxide
    Standards ANSI/ASME
