  • Hardened Finished Bore Sprocket H100B17 X 2-7/16
  • Hardened Finished Bore Sprocket H100B17 X 2-7/16
  • Hardened Finished Bore Sprocket H100B17 X 2-7/16
  • Hardened Finished Bore Sprocket H100B17 X 2-7/16

    • Hardened Finished Bore Sprocket H100B17 X 2-7/16

    Ringball

    $63.68
    (No reviews yet) Write a Review
    SKU:
    RBL H100B17 X 2-7/16
    Weight:
    9.90 LBS
    Chain series:
    100
    Tooth count:
    17
    Shaft diameter:
    2-7/16"
    Hardened tooth:
    Yes
    Keyway:
    5/8 x 5/16"
    Set screws:
    2 @ 90°
    Finish:
    Black oxide
    Adding to cart… category.add_cart_announcement

    Product Description

  • Type B sprockets are the most commonly requested design, whether they be finished or minimum plain bore.
  • The plain bore shaft sizes are for those desiring their own machining options, whereas the finished bore is for those requiring an immediate drop in solution.
  • Finished bore sprockets require the user to provide the correct keystock for their application.
  • Step & rectangular keystocks are available if your existing shaft's keyway does not match the sprockets "industry standard" pre-cut keyway dimensions which are shown above in the specifications.
  • Finished bore hubs come with two set screws at 90° angles and one of them being centered over the keyseat.
  • Finished bore sprockets keyways are cut consistently in alignment with the center line of a sprockets tooth for those users with timing requirements.

  • Smaller sprockets are hardened to Rockwell C35-50 standards.
  • Larger sprockets are hardened to Rockwell C25-40 standards.
  • The depth of hardness is highly monitored enabling proper hardness of the sprocket tooth's working area.
  • Please note that not all numbers from the catalog have been entered into the web store yet. If you require a sprocket listed in the catalog, but do not see it currently listed online, feel free to email or call and we will gladly quote you price & delivery.

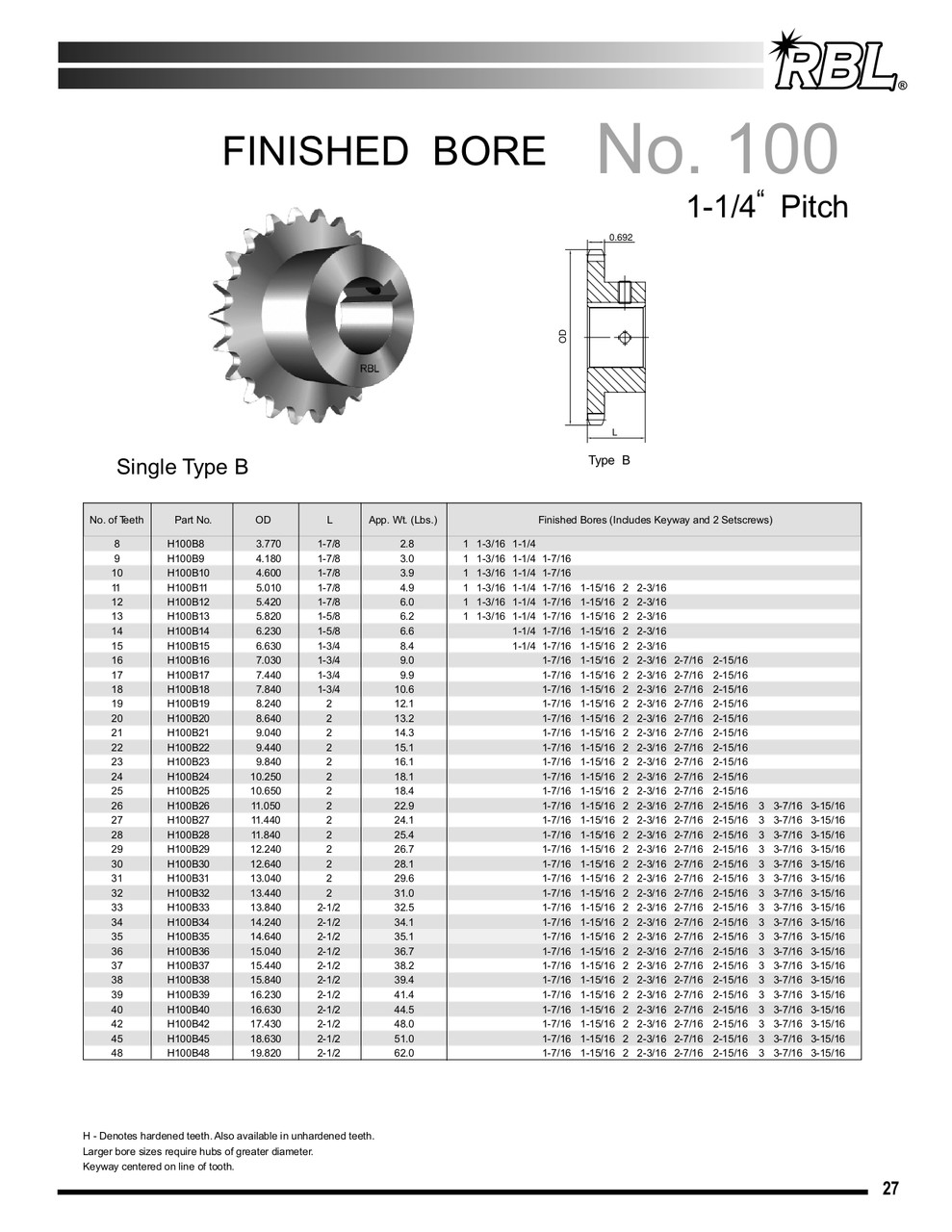

    adobepdficon.pngRingball Sprocket Catalog



    • Product Videos

    Custom Field

    Chain series 100
    Tooth count 17
    Shaft diameter 2-7/16"
    Hardened tooth Yes
    Keyway 5/8 x 5/16"
    Set screws 2 @ 90°
    Finish Black oxide
