  • Hardened "Browning®" Split Taper Lock Bushing Sprocket H40P32
  • Hardened "Browning®" Split Taper Lock Bushing Sprocket H40P32
  • Hardened "Browning®" Split Taper Lock Bushing Sprocket H40P32

    • Hardened "Browning®" Split Taper Lock Bushing Sprocket H40P32

    Ringball

    $47.69
    (No reviews yet) Write a Review
    SKU:
    RBL H40P32
    UPC:
    UPC 623647427162
    Weight:
    2.60 LBS
    Chain series:
    40
    Tooth count:
    32
    Hardened tooth:
    Yes
    Bushing series:
    P1
    Finish:
    Black oxide
    Standards:
    ANSI/ASME
    Adding to cart… category.add_cart_announcement

    Product Description

  • "Browning®" profile sheaves and sprockets were originally created by the Browning® Manufacturing Company, currently owned by Regal Rexnord, which utilize their own taper lock bushing designs which differ from the generic "QD" design.
  • Taper lock sprockets are a type of sprocket that use a tapered bushing and flange system to provide a secure, easy-to-install locking mechanism on a shaft, allowing for flexibility in bore size without replacing the entire sprocket.
  • They are used for power transmission via roller chains in various machinery.
  • The design, which includes a split through the taper and flange, allows for faster and easier fitting onto a shaft and simple removal using jackscrews.
  • Taper lock sprockets can accommodate different shaft diameters simply by changing the accompanying taper lock bushing, eliminating the need to purchase a new sprocket for every bore size.
  • When installed, the tapered bushing compresses onto the shaft, ensuring a tight and firm grip and improved centering compared to other systems.

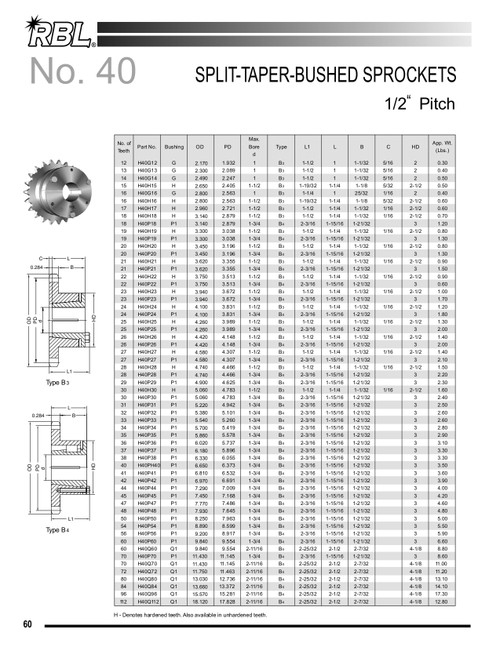

    adobepdficon.pngRingball Sprocket Catalog



    • Product Videos

    Custom Field

    Chain series 40
    Tooth count 32
    Hardened tooth Yes
    Bushing series P1
    Finish Black oxide
    Standards ANSI/ASME
