Gold Ribbon® Cog-Band® 6 Rib Banded V-Belt RBX116-6

Overview
Reviews

Product Description

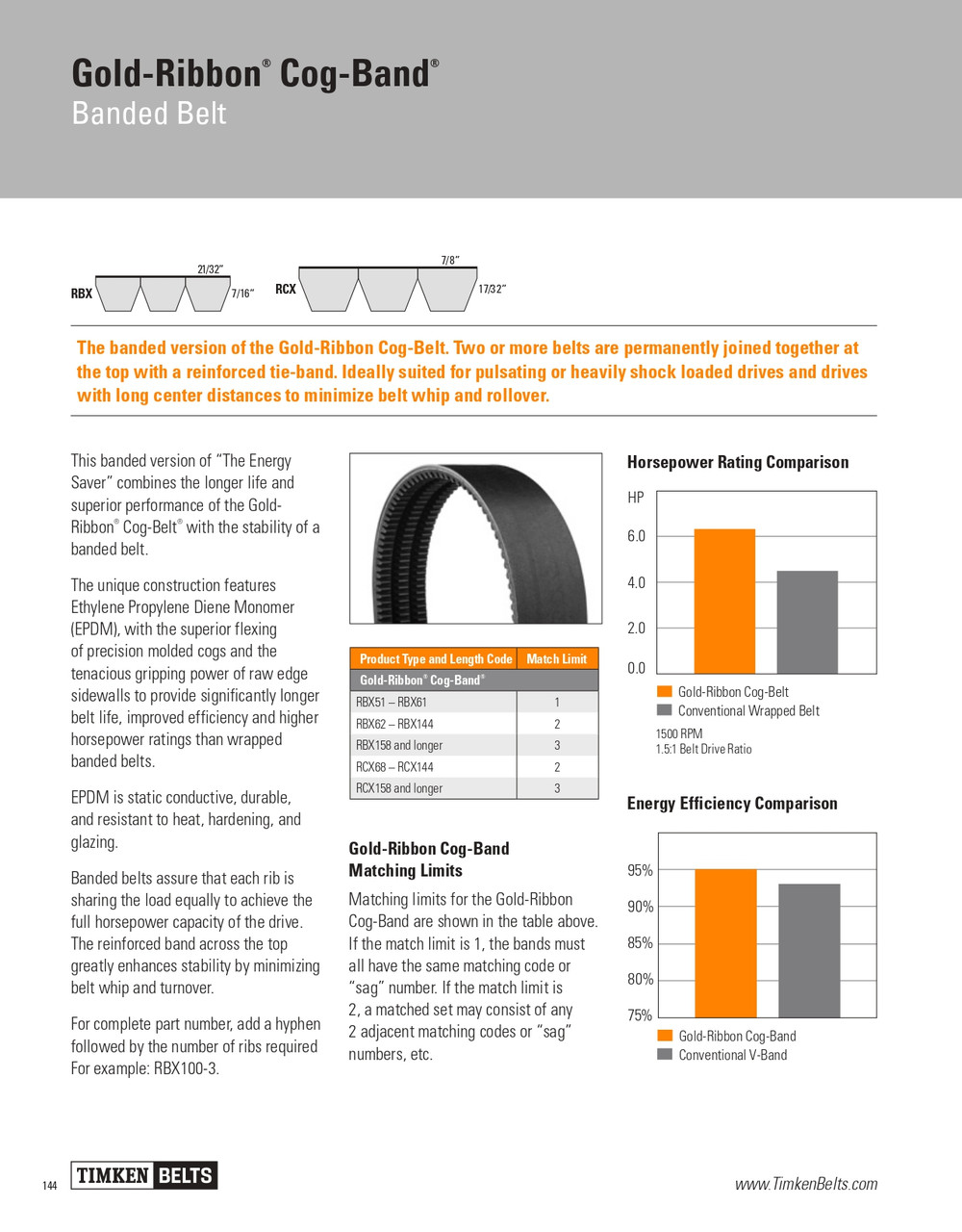

The banded version of the Gold-Ribbon® Cog-Belt®, two or more belts are permanently joined together at the top with a reinforced tie-band.

Ideally suited for pulsating or heavily shock loaded drives and drives with long center distances to minimize belt whip and rollover.

This banded version of The Energy Saver" combines the longer life and superior performance of the Gold-Ribbon® Cog-Belt® with the stability of a banded belt.

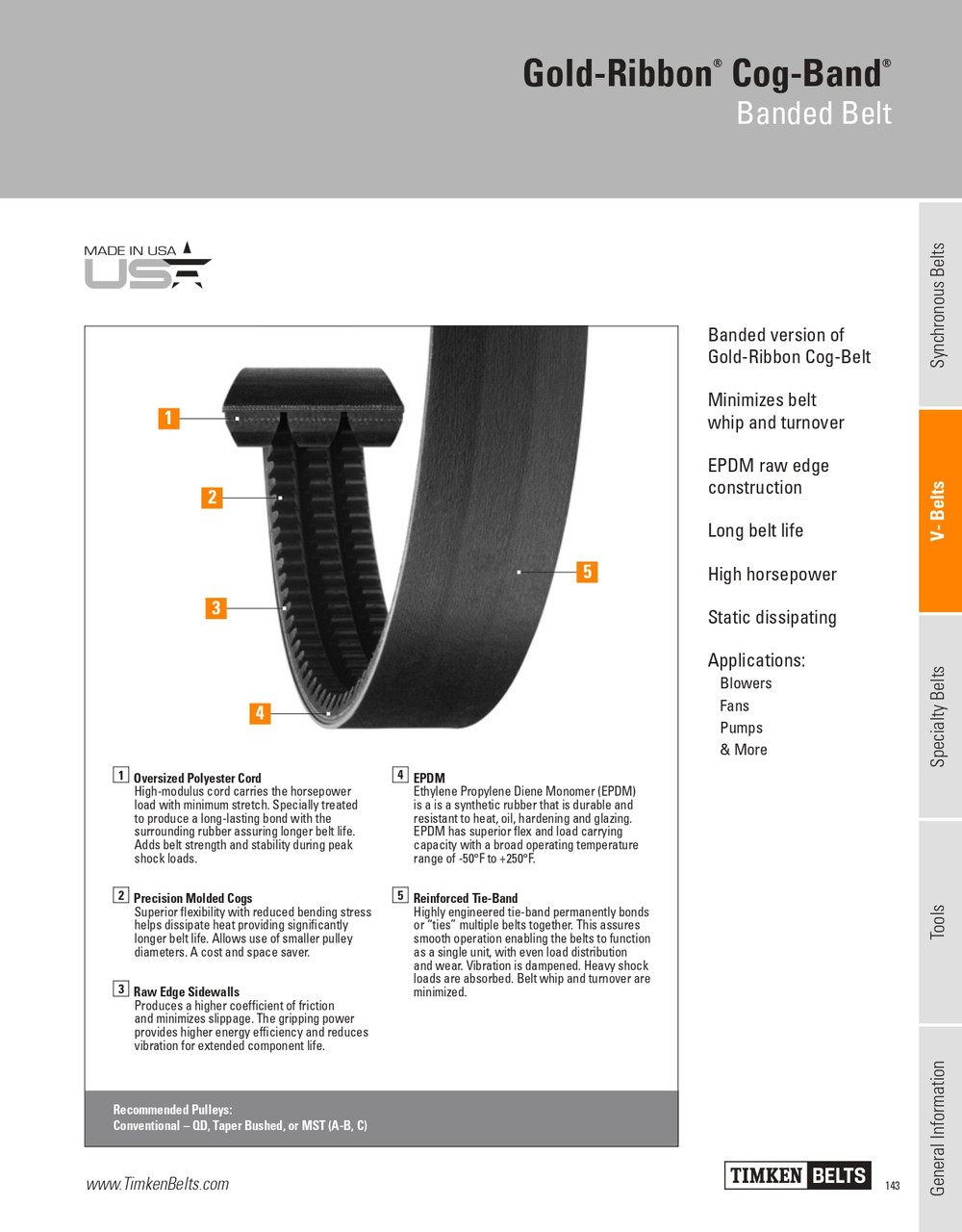

The unique construction features Ethylene Propylene Diene Monomer (EPDM), with the superior flexing of precision molded cogs and the tenacious gripping power of raw edge sidewalls to provide significantly longer belt life, improved efficiency and higher horsepower ratings than wrapped banded belts.

EPDM is static conductive, durable, and resistant to heat, hardening, and glazing.

Banded belts assure that each rib is sharing the load equally to achieve the full horsepower capacity of the drive.

The reinforced band across the top greatly enhances stability by minimizing belt whip and turnover.

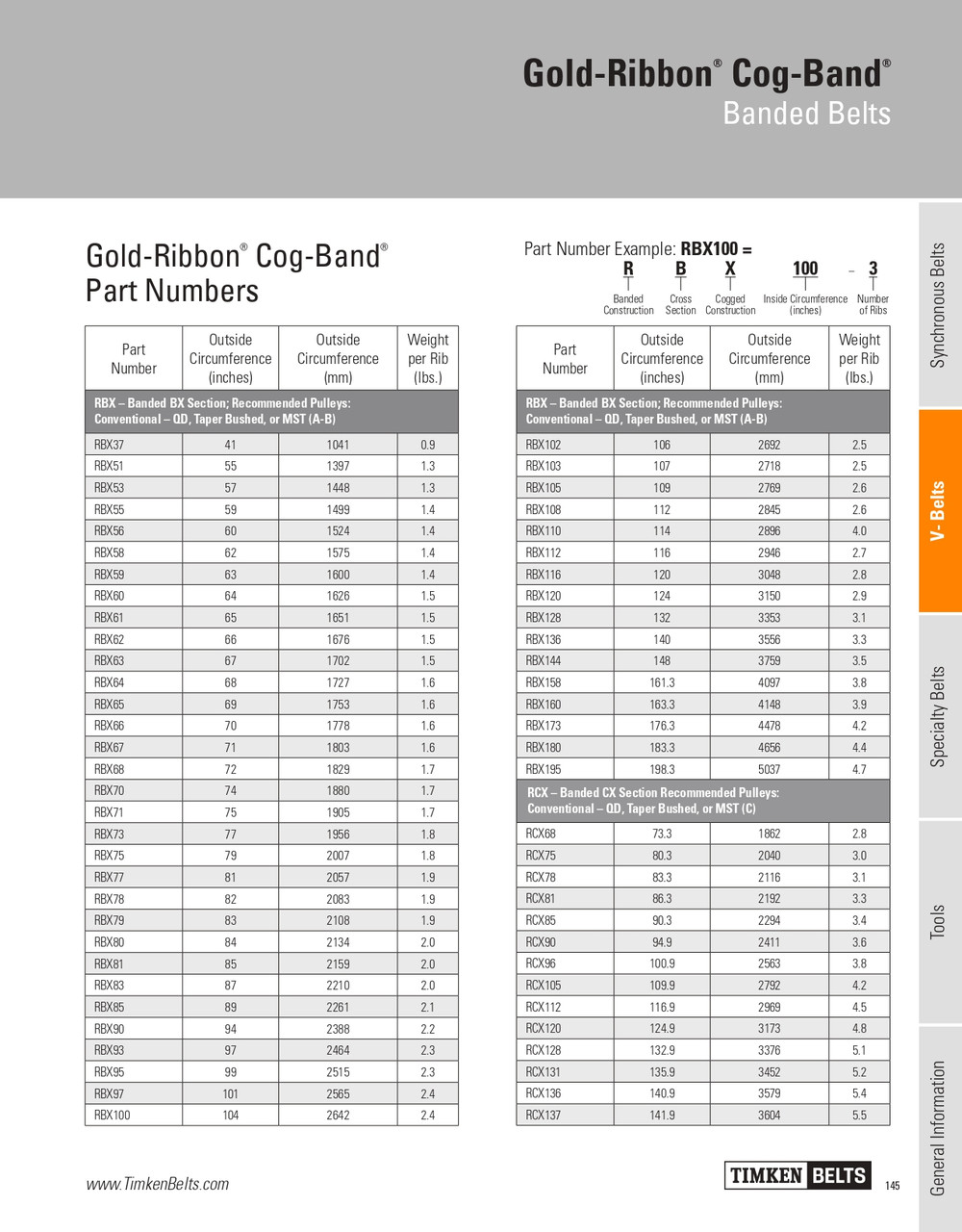

For complete part number, add a hyphen followed by the number of ribs required for example: RBX100-3.

Timken Belts Catalog

Please use this link to use the Timken belt interchange/cross-reference TIMKEN BELTS INTERCHANGE

Product Videos

Custom Field

Cross section B

Ribs 6

Cord material Polyester

Cogged Yes

HTS Code 4010.39.9000
