  • Gold Ribbon® Cog-Band® 3 Rib Banded V-Belt RCX190-3
  • Gold Ribbon® Cog-Band® 3 Rib Banded V-Belt RCX190-3
  • Gold Ribbon® Cog-Band® 3 Rib Banded V-Belt RCX190-3
  • Gold Ribbon® Cog-Band® 3 Rib Banded V-Belt RCX190-3
  • Gold Ribbon® Cog-Band® 3 Rib Banded V-Belt RCX190-3

    • Gold Ribbon® Cog-Band® 3 Rib Banded V-Belt RCX190-3

    Timken

    $657.12
    (No reviews yet) Write a Review
    SKU:
    TIM RCX190-3
    UPC:
    UPC 785201915116
    Weight:
    0.00 LBS
    Cross section:
    C
    Ribs:
    3
    Cord material:
    Polyester
    Cogged:
    Yes
    HTS Code:
    4010.39.9000
    Adding to cart… category.add_cart_announcement

    Product Description

  • The banded version of the Gold-Ribbon® Cog-Belt®, two or more belts are permanently joined together at the top with a reinforced tie-band.
  • Ideally suited for pulsating or heavily shock loaded drives and drives with long center distances to minimize belt whip and rollover.
  • This banded version of “The Energy Saver" combines the longer life and superior performance of the Gold-Ribbon® Cog-Belt® with the stability of a banded belt.
  • The unique construction features Ethylene Propylene Diene Monomer (EPDM), with the superior flexing of precision molded cogs and the tenacious gripping power of raw edge sidewalls to provide significantly longer belt life, improved efficiency and higher horsepower ratings than wrapped banded belts.
  • EPDM is static conductive, durable, and resistant to heat, hardening, and glazing.
  • Banded belts assure that each rib is sharing the load equally to achieve the full horsepower capacity of the drive.
  • The reinforced band across the top greatly enhances stability by minimizing belt whip and turnover.
  • For complete part number, add a hyphen followed by the number of ribs required for example: RBX100-3.

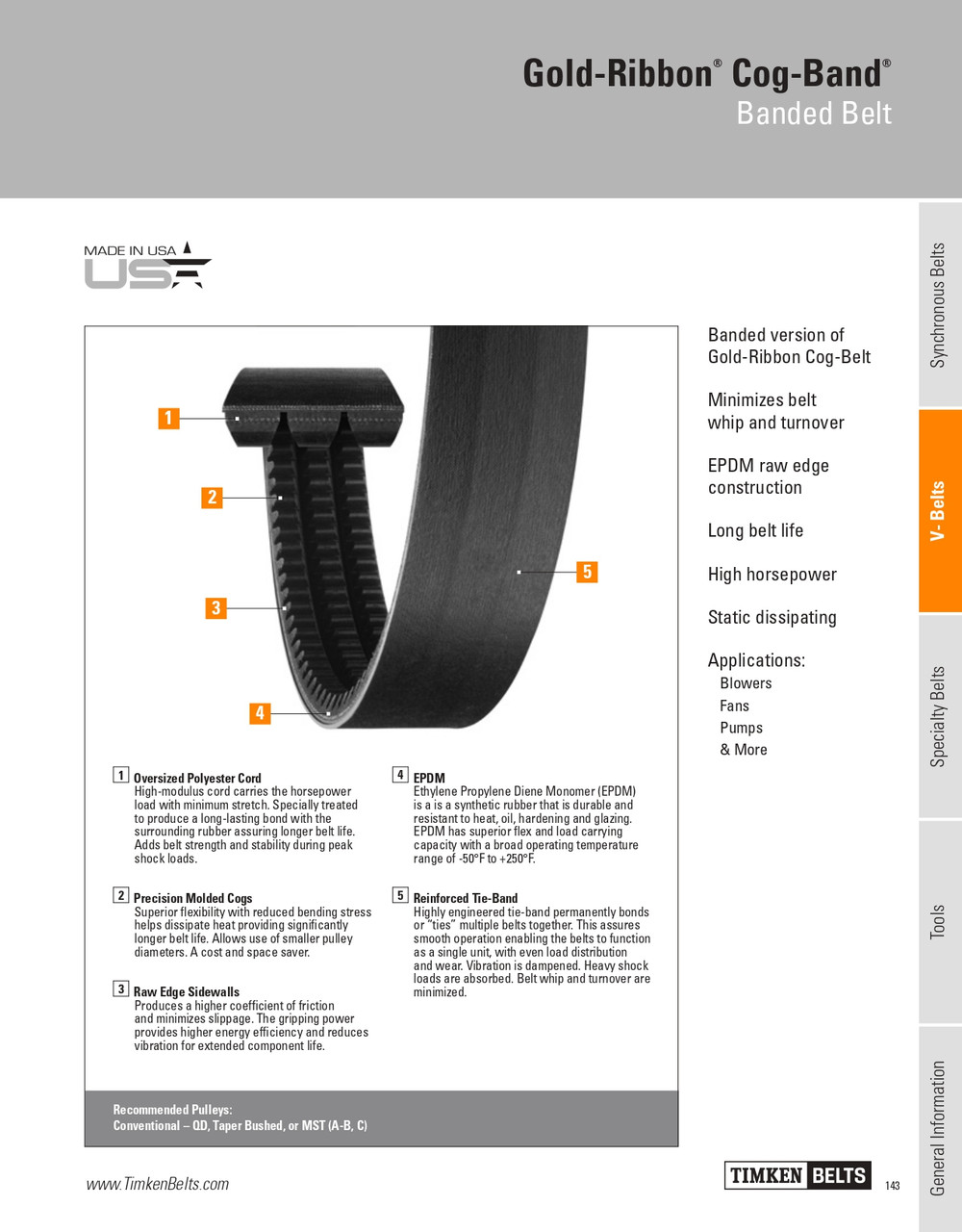

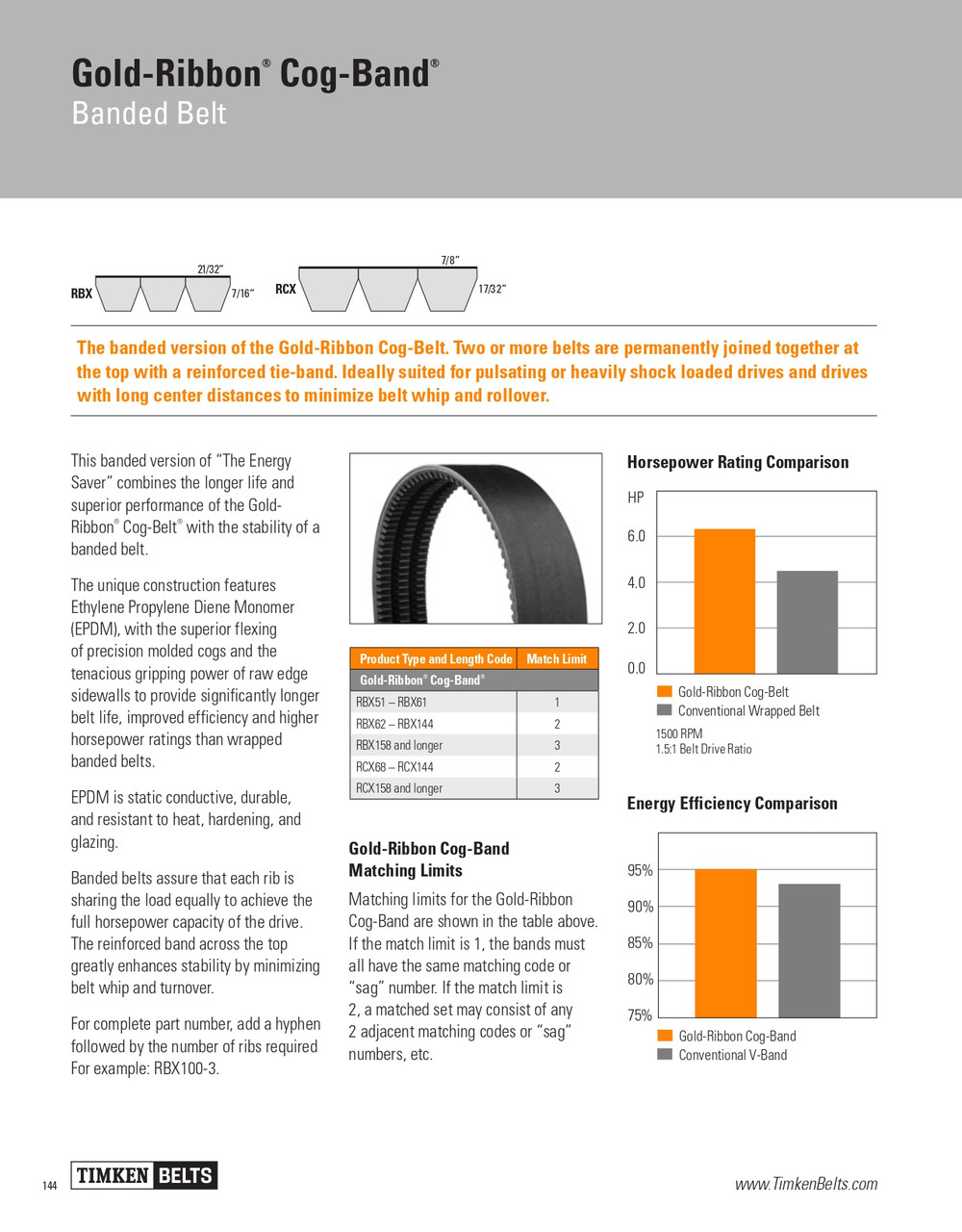

    adobepdficon.png Timken Belts Catalog

    Please use this link to use the Timken belt interchange/cross-reference TIMKEN BELTS INTERCHANGE

    • Product Videos

    Custom Field

    Cross section C
    Ribs 3
    Cord material Polyester
    Cogged Yes
    HTS Code 4010.39.9000
