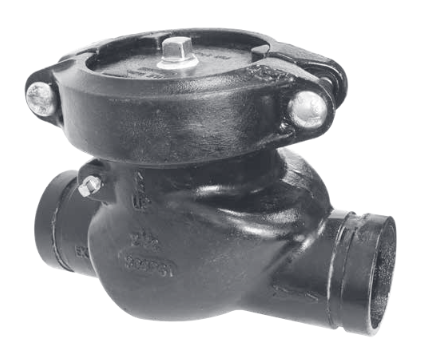

  • Fig. 90G Gruvlok Check Valve 4"
  • Fig. 90G Gruvlok Check Valve 4"
  • Fig. 90G Gruvlok Check Valve 4"
  • Fig. 90G Gruvlok Check Valve 4"

    • Fig. 90G Gruvlok Check Valve 4"

    Gruvlok

    $0.00
    (No reviews yet) Write a Review
    SKU:
    GRV FIG90GX4
    Weight:
    0.00 LBS
    Housing material:
    Ductile iron conforming to ASTM A 536, grade 65-45-12.

    Product Description

    Disc seal

  • Grade “E” EPDM Service Temperature Range -40°F to +230°F (-40°C to +110°C) Recommended for water service, dilute acids, alkalies, oil-free air andmany chemical services. NOT FOR USE IN PETROLEUM SERVICES
  • Grade “T” Nitrile Service Temperature Range -20°F to +180°F (-29°C to +82°C) Recommended for petroleum products, air with oil vapors, vegetable oilsand mineral oils. NOT FOR USE IN HOT WATER SERVICES.

  • The Fig. 90G Check Valve is designed for use with Anvil Gruvlok couplings for fast and easy installation on grooved pipe.
  • Grooved ends conform to the requirements of AWWA C606.The valve is fitted with a large bonnet closure for ease of field servicing.
  • All Fig. 90G Check Valves are supplied with a ½" NPT pipe plug installed in the bonnet cap.
  • The valve is available with bonnet gaskets and clapper seals made from EPDM or nitrile.

    adobepdficon.png Gruvlok Catalog

    • Product Videos

    Custom Field

    Housing material Ductile iron conforming to ASTM A 536, grade 65-45-12.
