  • Fig. 7013 Gruvlok® Flange 300# 6"
  • Fig. 7013 Gruvlok® Flange 300# 6"
  • Fig. 7013 Gruvlok® Flange 300# 6"
  • Fig. 7013 Gruvlok® Flange 300# 6"
  • Fig. 7013 Gruvlok® Flange 300# 6"
  • Fig. 7013 Gruvlok® Flange 300# 6"

    • Fig. 7013 Gruvlok® Flange 300# 6"

    Gruvlok

    $0.00
    (No reviews yet) Write a Review
    SKU:
    GRV FIG7013X6
    Weight:
    0.00 LBS
    Bolts equipped:
    SAE J429, grade 5, zinc electroplated (standard)
    Heavy hex nuts:
    SAE A563, grade A, zinc electroplated (standard)
    Housing material:
    Ductile iron conforming to ASTM A 536, grade 65-45-12.

    Product Description

  • Gaskets types:
  • Grade “E” EPDM (Green color code) -40°F to 230°F (Service Temperature Range)(-40°C to 110°C)Recommended for water service, diluted acids, alkalies solutions, oil-free air and many other chemical services. NOT FOR USE IN PETROLEUM APPLICATIONS.
  • Grade “T” Nitrile (Orange color code) NOT FOR USE IN DRINKING WATER -20°F to 180°F (Service Temperature Range)(-29°C to 82°C)Recommended for petroleum applications. air with oil vapors andvegetable and mineral oils. NOT FOR USE IN HOT WATER OR HOT AIR

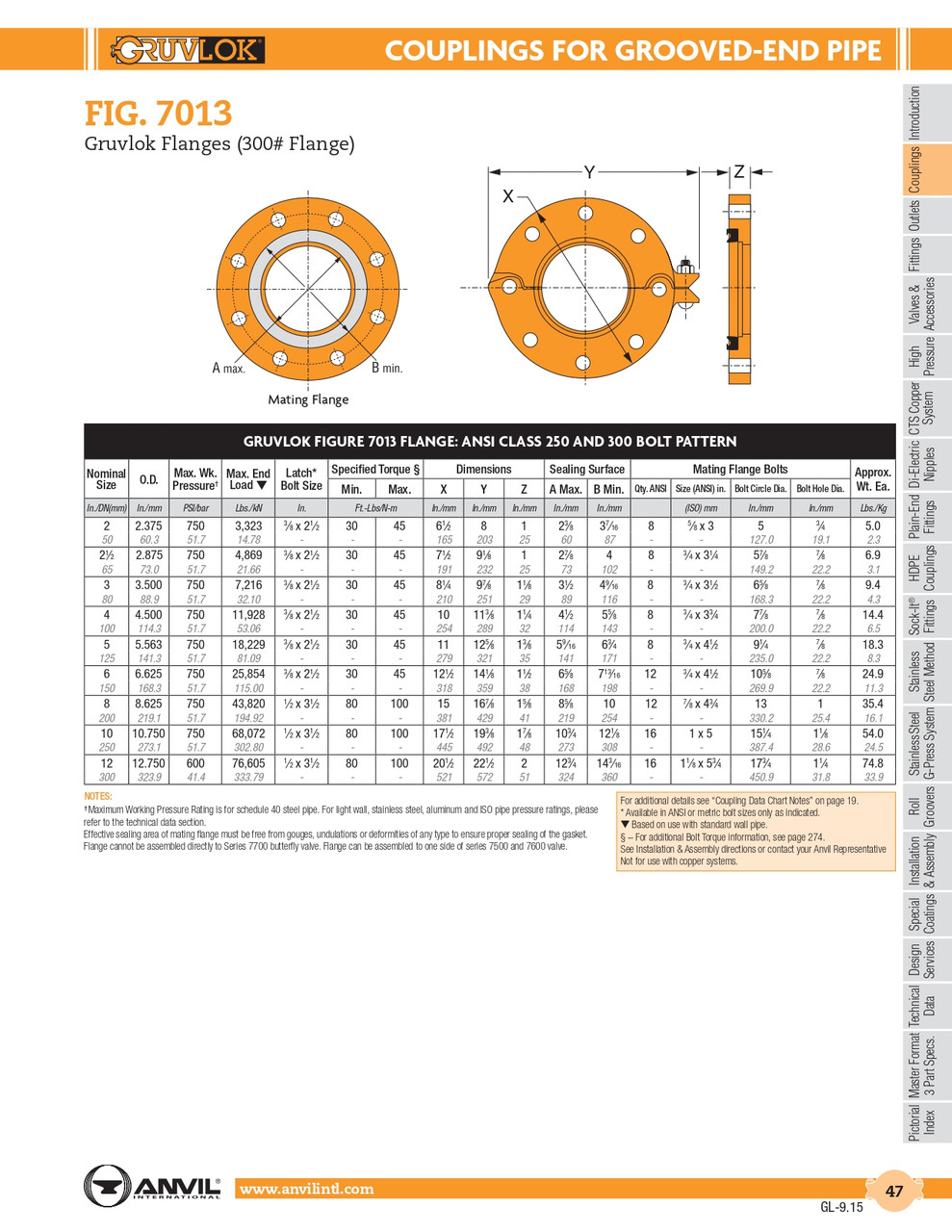

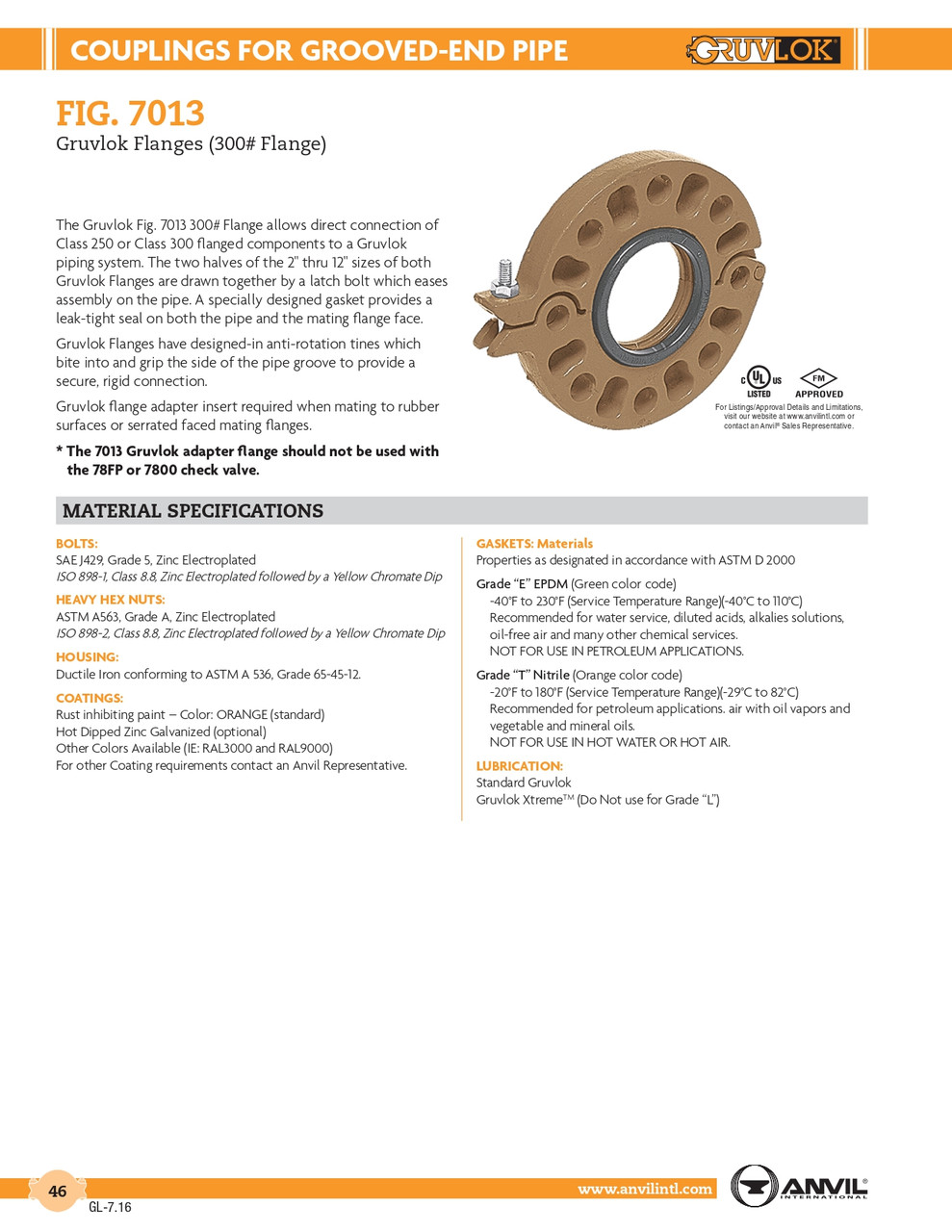

  • The Gruvlok Fig. 7013 300# Flange allows direct connection of Class 250 or Class 300 flanged components to a Gruvlok piping system. The two halves of the 2" thru 12" sizes of both Gruvlok Flanges are drawn together by a latch bolt which eases assembly on the pipe. A specially designed gasket provides a leak-tight seal on both the pipe and the mating flange face.
  • Gruvlok Flanges have designed-in anti-rotation tines which bite into and grip the side of the pipe groove to provide a secure, rigid connection.

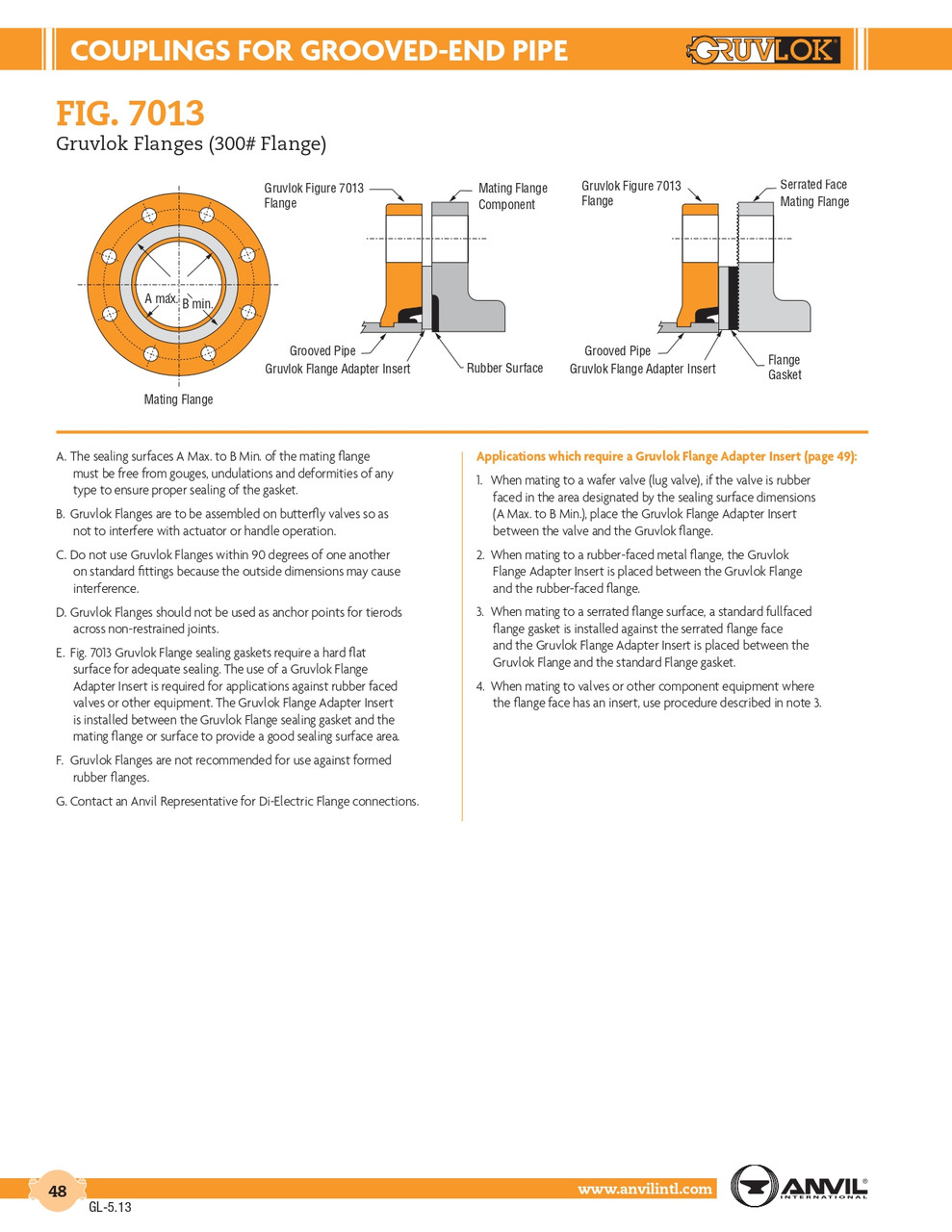

  • Gruvlok flange adapter insert required when mating to rubber surfaces or serrated faced mating flanges.
  • The 7013 Gruvlok adapter flange should not be used with the 78FP or 7800 check valve.

    adobepdficon.png Gruvlok Catalog

    • Product Videos

    Custom Field

    Bolts equipped SAE J429, grade 5, zinc electroplated (standard)
    Heavy hex nuts SAE A563, grade A, zinc electroplated (standard)
    Housing material Ductile iron conforming to ASTM A 536, grade 65-45-12.
