  • Fig. 7010 Reducing Coupling 2 1/2 x 2"
  • Fig. 7010 Reducing Coupling 2 1/2 x 2"
  • Fig. 7010 Reducing Coupling 2 1/2 x 2"
  • Fig. 7010 Reducing Coupling 2 1/2 x 2"
  • Fig. 7010 Reducing Coupling 2 1/2 x 2"

    • Fig. 7010 Reducing Coupling 2 1/2 x 2"

    Gruvlok

    $0.00
    (No reviews yet) Write a Review
    SKU:
    GRV FIG7010X212X2
    Weight:
    0.00 LBS
    Bolts equipped:
    SAE J429, grade 5, zinc electroplated (standard)
    Heavy hex nuts:
    SAE A563, grade A, zinc electroplated (standard)
    Housing material:
    Ductile iron conforming to ASTM A 536, grade 65-45-12.

    Product Description

  • Gaskets types:
  • Grade “E” EPDM (Green color code) -40°F to 230°F (Service Temperature Range)(-40°C to 110°C)Recommended for water service, diluted acids, alkalies solutions, oil-free air and many other chemical services. NOT FOR USE IN PETROLEUM APPLICATIONS.
  • Grade “T” Nitrile (Orange color code) NOT FOR USE IN DRINKING WATER -20°F to 180°F (Service Temperature Range)(-29°C to 82°C)Recommended for petroleum applications. air with oil vapors andvegetable and mineral oils. NOT FOR USE IN HOT WATER OR HOT AIR

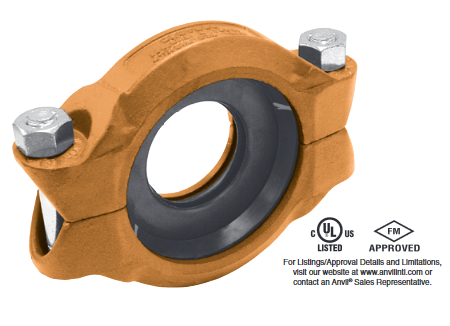

    The Fig. 7010 Reducing Coupling makes it possible to directly connect two different pipe sizes, eliminating the need for two couplings and a reducing fitting. The specially designed reducing coupling gasket with a center rib assures proper positioning of the gasket and prevents the smaller pipe from telescoping into the larger during assembly. Fig. 7010 Reducing Coupling allows for working pressure ratings up to 500 PSI (34.5 bar). Not recommended for vacuum applications.

    adobepdficon.png Gruvlok Catalog

    • Product Videos

    Custom Field

    Bolts equipped SAE J429, grade 5, zinc electroplated (standard)
    Heavy hex nuts SAE A563, grade A, zinc electroplated (standard)
    Housing material Ductile iron conforming to ASTM A 536, grade 65-45-12.
