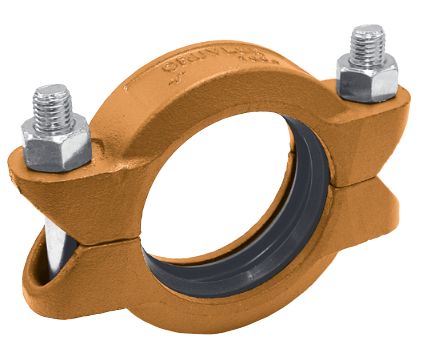

  • Fig. 7004EG Coupling /w EG Gasket 3"
  • Fig. 7004EG Coupling /w EG Gasket 3"
  • Fig. 7004EG Coupling /w EG Gasket 3"
  • Fig. 7004EG Coupling /w EG Gasket 3"

    • Fig. 7004EG Coupling /w EG Gasket 3"

    Gruvlok

    $0.00
    (No reviews yet) Write a Review
    SKU:
    GRV FIG7004EGX3
    Weight:
    0.00 LBS
    Housing material:
    Ductile iron conforming to ASTM A 536, grade 65-45-12.

    Product Description

  • Gaskets types:
  • Grade “T” Nitrile (Orange color code) NOT FOR USE IN DRINKING WATER -20°F to 180°F (Service Temperature Range)(-29°C to 82°C)Recommended for petroleum applications. air with oil vapors andvegetable and mineral oils. NOT FOR USE IN HOT WATER OR HOT AIR

  • The Gruvlok Fig. 7004EG High Pressure Coupling uses the specially designed “End Guard” gasket for use with “EG” grooved pipe. The “EG” gasket has a center rib which extends between the pipes in order to provide pipe end protection, which makes it ideally suited for internally lined or coated pipe applications.
  • The Fig. 7004EG High Pressure Coupling permits working pressure ratings up to 2500 psi (172.4 bar).Working Pressure and End Load values are based on “EG” cut grooved schedule 80 steel pipe.
  • Fig. 7004EG provides a rigid joint and does not allow for expansion or contraction. Beveled end pipe should not be used with “EG” gaskets.

    adobepdficon.png Gruvlok Catalog

    • Product Videos

    Custom Field

    Housing material Ductile iron conforming to ASTM A 536, grade 65-45-12.
