  • Fig. 7001 Flexible Coupling 30" I.D
  • Fig. 7001 Flexible Coupling 30" I.D
  • Fig. 7001 Flexible Coupling 30" I.D
  • Fig. 7001 Flexible Coupling 30" I.D

    • Fig. 7001 Flexible Coupling 30" I.D

    Gruvlok

    $0.00
    (No reviews yet) Write a Review
    SKU:
    GRV FIG7001X30ID
    Weight:
    0.00 LBS
    Bolts equipped:
    SAE J429, grade 5, zinc electroplated (standard)
    Heavy hex nuts:
    SAE A563, grade A, zinc electroplated (standard)
    Housing material:
    Ductile iron conforming to ASTM A 536, grade 65-45-12.

    Product Description

  • Gaskets types:
  • Grade “EP” EPDM (Green and Red color code) -40°F to 250°F (Service Temperature Range)(-40°C to 121°C)Recommended for water service, diluted acids, alkalies solutions, oil-free air and many other chemical services. NOT FOR USE IN PETROLEUM APPLICATIONS.
  • Grade “T” Nitrile (Orange color code) NOT FOR USE IN DRINKING WATER -20°F to 180°F (Service Temperature Range)(-29°C to 82°C)Recommended for petroleum applications. air with oil vapors andvegetable and mineral oils. NOT FOR USE IN HOT WATER OR HOT AIR
  • Grade “O” Fluoro-Elastomer (Blue color code) NOT FOR USE IN DRINKING WATER Size Range: 1" - 12" (C style only) 20°F to 300°F (Service Temperature Range)(-29°C to 149°C) Recommended for high temperature resistance to oxidizing acids,petroleum oils, hydraulic fluids, halogenated hydrocarbons and lubricants.
  • Grade “L” Silicone (Red color code) NOT FOR USE IN DRINKING WATER Size Range: 1" - 12" (C style only) -40°F to 350°F (Service Temperature Range)(-40°C to 177°C)Recommended for dry, hot air and some high temperature chemical services.

  • The Gruvlok® Fig. 7001 Coupling forms a flexible grooved end pipe joint connection with the versatility for a wide range of applications. Services include mechanical and plumbing, process piping, mining and oil field piping, and many others. The coupling design supplies optimum strength for working pressures to 1000 PSl (69 bar) without excessive casting weight.
  • The flexible design eases pipe and equipment installation while providing the designed-in benefit of reducing pipeline noise and vibration transmission without the addition of special components. To ease coupling handling and assembly and to assure consistent quality, sizes 1" through 14" couplings have two 180° segment housings, 16" have three 120 ? segment housings, and 18" through 24" sizes have four 90° segment housings, while the 28" O.D. and 30" O.D. couplings have six 60° segment housings. The 28" O.D. and 30" O.D. are weld-ring couplings.

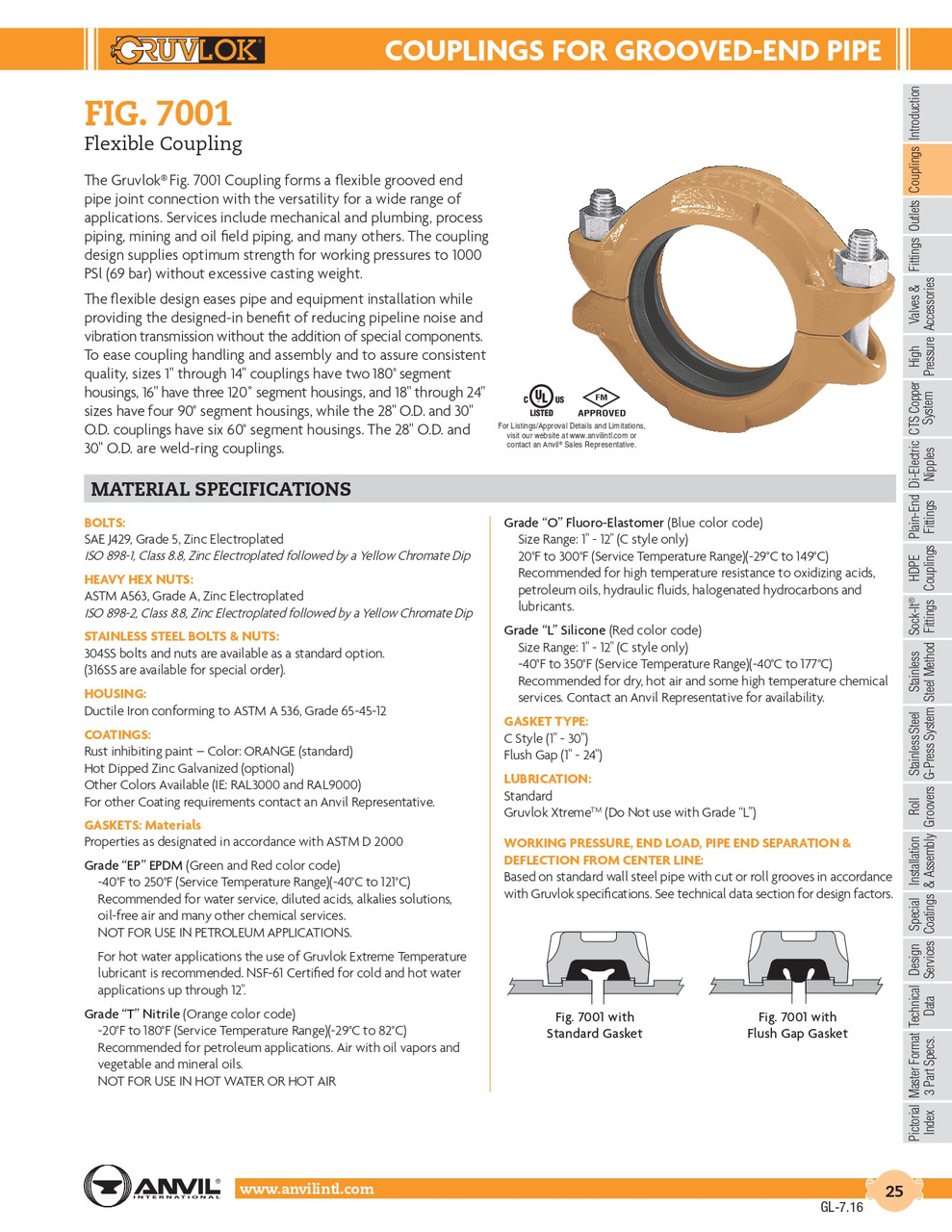

    adobepdficon.png Gruvlok Catalog

    • Product Videos

    Custom Field

    Bolts equipped SAE J429, grade 5, zinc electroplated (standard)
    Heavy hex nuts SAE A563, grade A, zinc electroplated (standard)
    Housing material Ductile iron conforming to ASTM A 536, grade 65-45-12.
