  • Fig. 7000 Lightweight Flexible Coupling 1 1/4"
  • Fig. 7000 Lightweight Flexible Coupling 1 1/4"
  • Fig. 7000 Lightweight Flexible Coupling 1 1/4"
  • Fig. 7000 Lightweight Flexible Coupling 1 1/4"
  • Fig. 7000 Lightweight Flexible Coupling 1 1/4"

    • Fig. 7000 Lightweight Flexible Coupling 1 1/4"

    Gruvlok

    $0.00
    (No reviews yet) Write a Review
    SKU:
    GRV FIG7000X114
    Weight:
    0.00 LBS
    Bolts equipped:
    SAE J429, grade 5, zinc electroplated (standard)
    Heavy hex nuts:
    SAE A563, grade A, zinc electroplated (standard)
    Housing material:
    Ductile iron conforming to ASTM A 536, grade 65-45-12.

    Product Description

  • Gaskets types:
  • Grade “EP” EPDM (Green and Red color code) -40°F to 250°F (Service Temperature Range)(-40°C to 121°C)Recommended for water service, diluted acids, alkalies solutions, oil-free air and many other chemical services. NOT FOR USE IN PETROLEUM APPLICATIONS.
  • Grade “T” Nitrile (Orange color code) NOT FOR USE IN DRINKING WATER -20°F to 180°F (Service Temperature Range)(-29°C to 82°C)Recommended for petroleum applications. air with oil vapors andvegetable and mineral oils. NOT FOR USE IN HOT WATER OR HOT AIR
  • Grade “O” Fluoro-Elastomer (Blue color code) NOT FOR USE IN DRINKING WATER Size Range: 1" - 12" (C style only) 20°F to 300°F (Service Temperature Range)(-29°C to 149°C) Recommended for high temperature resistance to oxidizing acids,petroleum oils, hydraulic fluids, halogenated hydrocarbons and lubricants.
  • Grade “L” Silicone (Red color code) NOT FOR USE IN DRINKING WATER Size Range: 1" - 12" (C style only) -40°F to 350°F (Service Temperature Range)(-40°C to 177°C)Recommended for dry, hot air and some high temperature chemical services.

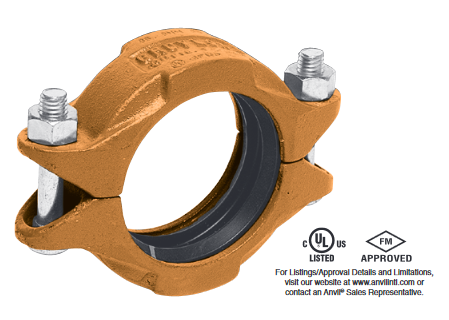

  • The Fig. 7000 Lightweight Flexible Coupling is designed for applications where system flexibility is desired.
  • The Fig. 7000 Coupling is approximately 30% lighter in weight than the Fig. 7001 Coupling, and allows for working pressure ratings up to 600 psi (41.4 bar).
  • The Figure 7000 Lightweight Flexible Coupling is intended for use in several applications. See Gasket Grade Index for gasket recommendations.

    adobepdficon.png Gruvlok Catalog

    • Product Videos

    Custom Field

    Bolts equipped SAE J429, grade 5, zinc electroplated (standard)
    Heavy hex nuts SAE A563, grade A, zinc electroplated (standard)
    Housing material Ductile iron conforming to ASTM A 536, grade 65-45-12.
