  • F-4.5 Series Lovejoy® Flanged Gear Coupling Oring F-4.5-O-RING-BUNA-N 70
  • F-4.5 Series Lovejoy® Flanged Gear Coupling Oring F-4.5-O-RING-BUNA-N 70
  • F-4.5 Series Lovejoy® Flanged Gear Coupling Oring F-4.5-O-RING-BUNA-N 70
  • F-4.5 Series Lovejoy® Flanged Gear Coupling Oring F-4.5-O-RING-BUNA-N 70
  • F-4.5 Series Lovejoy® Flanged Gear Coupling Oring F-4.5-O-RING-BUNA-N 70
  • F-4.5 Series Lovejoy® Flanged Gear Coupling Oring F-4.5-O-RING-BUNA-N 70

    • F-4.5 Series Lovejoy® Flanged Gear Coupling Oring F-4.5-O-RING-BUNA-N 70

    Timken

    $35.86
    (No reviews yet) Write a Review
    SKU:
    TIM F-4.5-O-RING-BUNA-N 70
    UPC:
    UPC 0697904002249
    Weight:
    1.00 LBS
    Series:
    F-4.5
    Coupling type:
    Gear coupler
    Adding to cart… category.add_cart_announcement

    Product Description

  • F type flex sleeves (with o-ring)
  • For use with F (flex-flex) or FFR (flex-rigid) couplings.

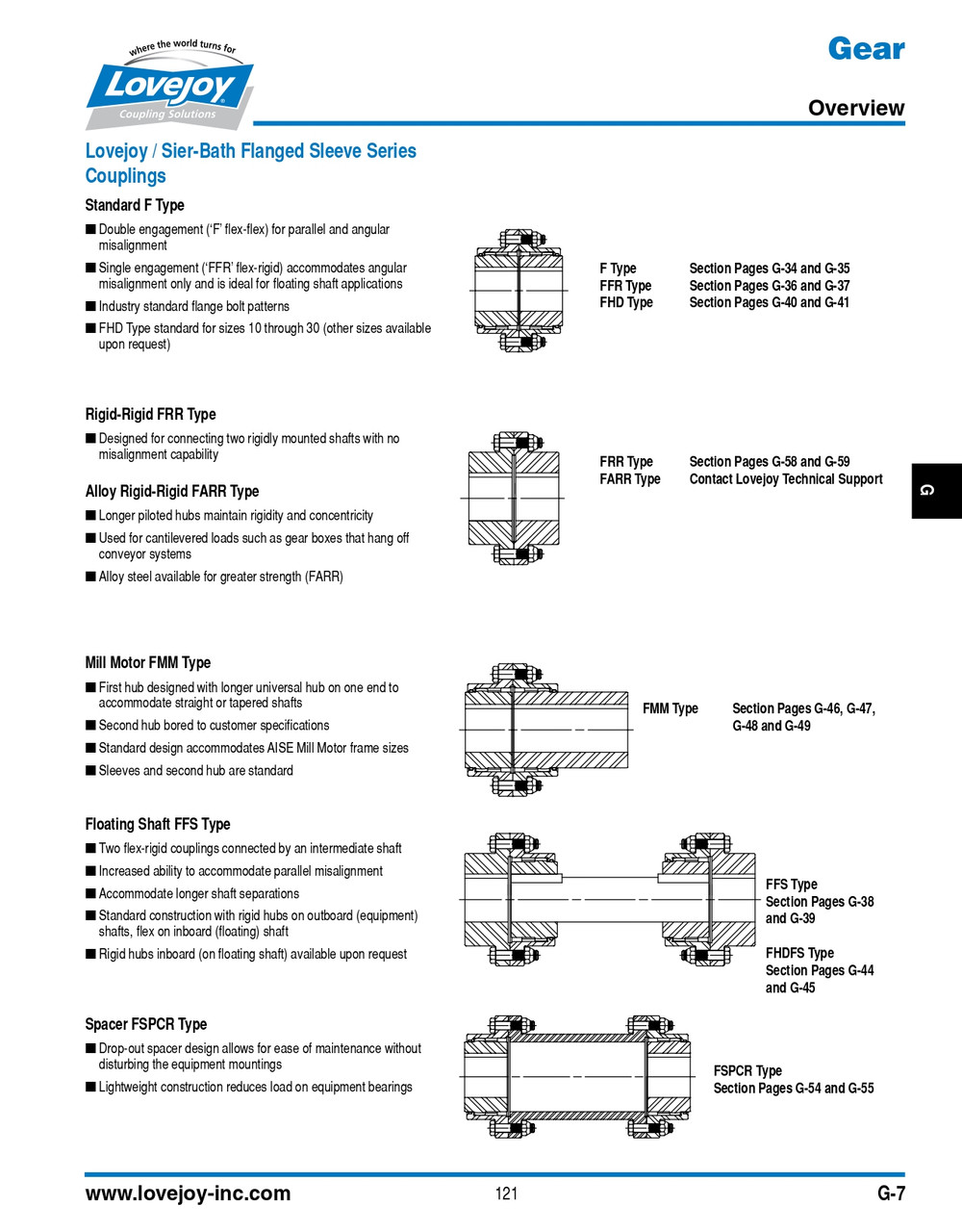

  • The F type coupling consists of two flex hubs, two sleeves (with o-rings) and one accessory kit.
  • Exposed bolts (E) are the standard design for this coupling, though shrouded bolt (S) designs are available upon request through size 5.5.

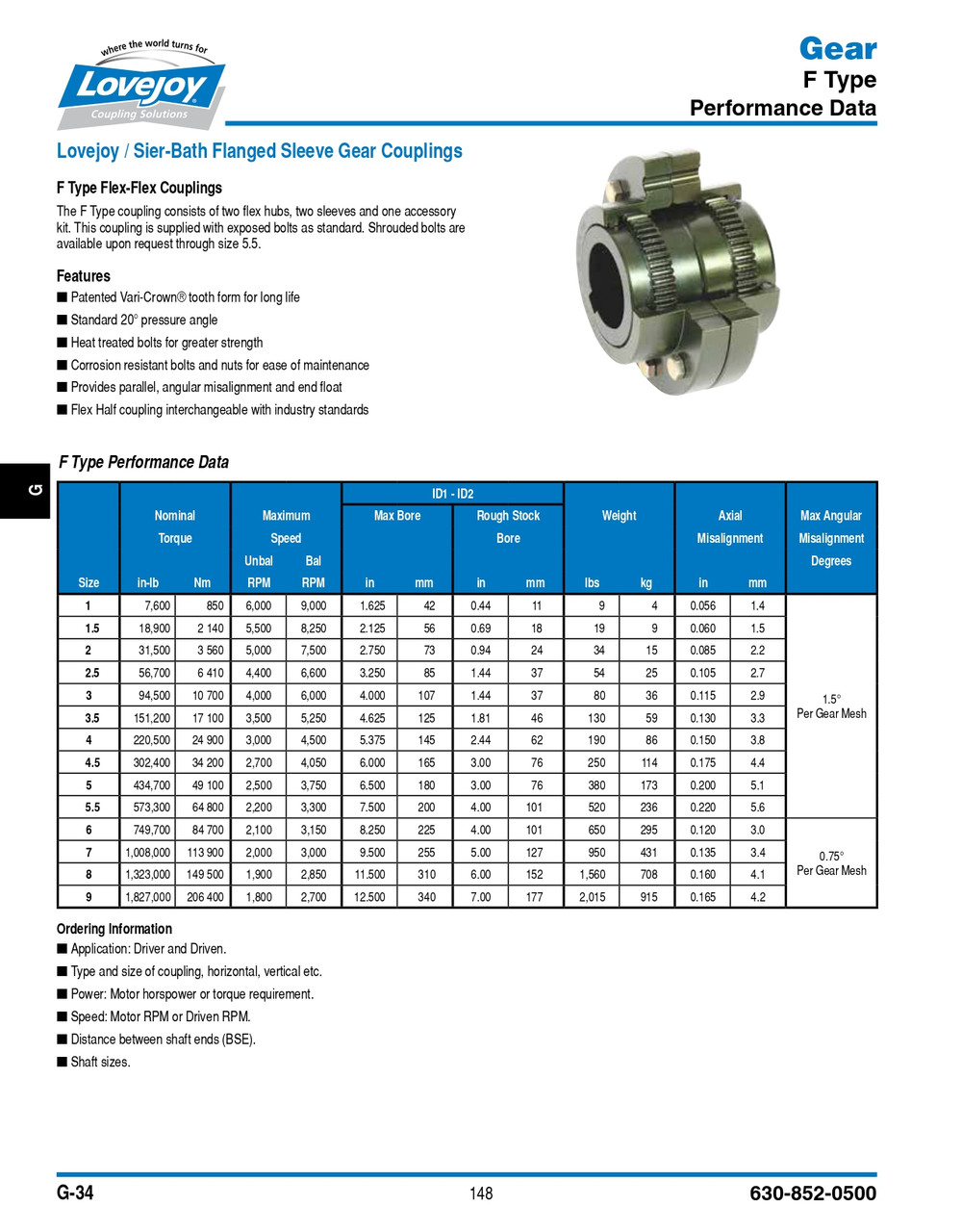

  • The F Type has a max angular misalignment of 3.0 degrees (1.5 degrees per gear mesh).
  • The FFR Type coupling consists of one flex hub, one rigid hub, one sleeve (with o-ring), and one accessory kit.
  • Exposed bolts (E) are the standard design for this coupling, though shrouded bolt (S) designs are available upon request through size 5.5.
  • The FFR Type has a max angular misalignment of 1.5 degrees (1.5 degrees per gear mesh).
  • For larger torques, consider the FHD Type gear coupling in sizes 10 through 30.

  • Note: F type flex sleeves generally come with the required o-ring. Other than for replacement purposes, F type o-rings are generally not ordered as a stand alone product. The F type o-ring works for both exposed and shrouded bolt styles. F type o-rings do not work for FA (alloy steel) type couplings.

    adobepdficon.png Timken Lovejoy Master Catalog

    adobepdficon.png F & FA Flange Gear Coupling Installation Guide

    • Product Videos

    Custom Field

    Series F-4.5
    Coupling type Gear coupler
