Product Description

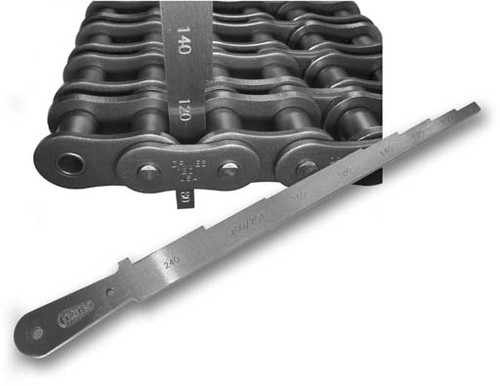

EZ CHAIN WEAR GAUGE® Accurately checks up to nine sizes of American Standard roller chain and up to seven sizes of British Standard roller chain. Quick and easy to use, the go or no-go gauge system gives immediate feedback. Gauge will fit into limited spaces and quickly lets the user know if the chain is worn out
Precision-ground, pre-hardened tool steel
Convenient grip handle with pre-drilled holes for hanging, to keep you organized
Gauges are designed for 3 percent elongation
Sprockets for roller chain are designed to accept up to 3 percent elongation
Single chain size gauges are available upon request for applications which limit elongation other than chain and sprocket interaction
Available in three chain gauge sizes:
Part #60637 / 35 chain ~ 100 chain
Part #61904 / BS06B chain ~ BS24B chain / Actual gauge dimensions: 8.75" (l) x 0.625" (w) x 0.188" (h)
Part #60638 / 80 chain ~ 240 chain / Actual gauge dimensions: 18.00" (l) x 1.50" (w) x 0.250" (h)
Timken Drives General Catalog
Follow this link to access Timken's "Drives" customized roller chain attachment software.
Former "Drives" identification number
Former "Drives" identification number 60638
Tool Type Wear guage
Measures ANSI type roller chain
Range 35 ~ 101
