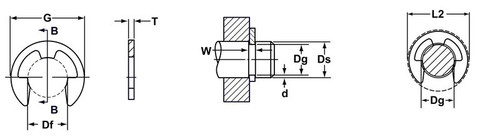

  • External SAE Phosphated Reinforced E-Clip Retaining Ring RE-0021-PA
  • External SAE Phosphated Reinforced E-Clip Retaining Ring RE-0021-PA
  • External SAE Phosphated Reinforced E-Clip Retaining Ring RE-0021-PA

    • External SAE Phosphated Reinforced E-Clip Retaining Ring RE-0021-PA

    DMR

    $0.00
    (No reviews yet) Write a Review
    SKU:
    DAE RE-0021-PA
    Weight:
    0.00 LBS
    Alternate manufacturers numbers:
    Waldes Truarc 5144-021
    Material finish:
    Phosphate coating
    Ring material:
    Carbon spring steel (SAE 1060-1090/UNS G10600-G10900)
    RoHS & ELV compliant:
    Yes
    Size range:
    .094 ~ .562"
    Recommendation:
    The standard finish is recommended over unfinished plain steel since it offers extended shelf-life protection against rusting

    Product Description

  • The RE retaining ring is a reinforced version of the E ring which will accommodate higher thrust loadings and RPM's. RE rings function in the same groove as regular E rings so that you can change from one to the other without re-engineering the application
  • With regards to the RE series retaining rings, only the black phosphate coated (RE-PA) rings are listed in this database, however other finishes are available upon special request

    Alternate Finishes Available:
  • (RE-H) Stainless Steel - PH 15-7 Mo is an extra strength corrosion-resistant stainless steel, capable of preventing atmospheric oxidation at temperatures up to 900ยบ F
  • (RE-ZD) Yellow Zinc Dichromate - It affords the metal excellent salt spray protection (96 hours) and is particularly effective for applications exposed to seawater. This retaining rings zinc plated finish utilizes a mechanical plating process which effectively eliminates hydrogen embrittlement
  • (RE-Z3X) Trivalent Chromate Zinc Plus Sealer
  • (RE-ZF) Clear Bright Zinc



     adobepdficon.png  DMR Retaining Rings



    •

    Product Videos

    Custom Field

    Alternate manufacturers numbers Waldes Truarc 5144-021
    Material finish Phosphate coating
    Ring material Carbon spring steel (SAE 1060-1090/UNS G10600-G10900)
    RoHS & ELV compliant Yes
    Size range .094 ~ .562"
    Recommendation The standard finish is recommended over unfinished plain steel since it offers extended shelf-life protection against rusting
