  • External SAE Phosphated Light Poodle Retaining Ring POL-0025-PA
  • External SAE Phosphated Light Poodle Retaining Ring POL-0025-PA
  • External SAE Phosphated Light Poodle Retaining Ring POL-0025-PA

    • External SAE Phosphated Light Poodle Retaining Ring POL-0025-PA

    DMR

    $0.00
    (No reviews yet) Write a Review
    SKU:
    DAE POL-0025-PA
    Weight:
    0.00 LBS
    Alternate manufacturers numbers:
    Waldes Truarc T5303-025 / Papco 268-714 (7/pk)
    Material finish:
    Phosphate coating
    Ring material:
    Carbon spring steel (SAE 1060-1090/UNS G10600-G10900)
    RoHS & ELV compliant:
    Yes
    Size range:
    .156 ~ 1.00"
    Recommendation:
    The standard finish is recommended over unfinished plain steel since it offers extended shelf-life protection against rusting

    Product Description

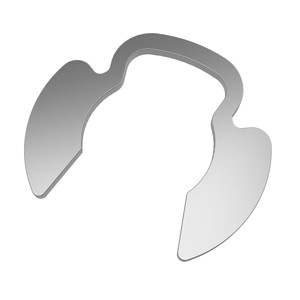

  • The POL (light) series external retaining ring features wide "ears" (resembling those of a poodle dog; hence the name) which offer extra surface area and better retention against the retained part. POL series rings also come in thicker widths with identical shaft sizes and are known as PO (standard)
  • With regards to the PO/POL series retaining rings, only the black phosphate coated (PO-PA) and (POL-PA) rings are listed in this database, however other finishes are available upon special request

    Alternate Finishes Available:
  • (PO/POL-H) Stainless Steel - PH 15-7 Mo is an extra strength corrosion-resistant stainless steel, capable of preventing atmospheric oxidation at temperatures up to 900º F
  • (PO/POL-ZD) Yellow Zinc Dichromate - It affords the metal excellent salt spray protection (96 hours) and is particularly effective for applications exposed to seawater. This retaining rings zinc plated finish utilizes a mechanical plating process which effectively eliminates hydrogen embrittlement
  • (PO/POL-Z3X) Trivalent Chromate Zinc Plus Sealer
  • (PO/POL-ZF) Clear Bright Zinc



     adobepdficon.png  DMR Retaining Rings



    •

    Product Videos

    Custom Field

    Alternate manufacturers numbers Waldes Truarc T5303-025 / Papco 268-714 (7/pk)
    Material finish Phosphate coating
    Ring material Carbon spring steel (SAE 1060-1090/UNS G10600-G10900)
    RoHS & ELV compliant Yes
    Size range .156 ~ 1.00"
    Recommendation The standard finish is recommended over unfinished plain steel since it offers extended shelf-life protection against rusting
