  • External SAE Phosphated Interlocking Retaining Ring LC-0087-PA
  • External SAE Phosphated Interlocking Retaining Ring LC-0087-PA
  • External SAE Phosphated Interlocking Retaining Ring LC-0087-PA

    • External SAE Phosphated Interlocking Retaining Ring LC-0087-PA

    DMR

    $0.00
    (No reviews yet) Write a Review
    SKU:
    DAE LC-0087-PA
    Weight:
    0.00 LBS
    Alternate manufacturers numbers:
    Waldes Truarc 5107-087
    Material finish:
    Phosphate coating
    Ring material:
    Carbon spring steel (SAE 1060-1090/UNS G10600-G10900)
    RoHS & ELV compliant:
    Yes
    Size range:
    .469 ~ 3.375"
    Recommendation:
    The standard finish is recommended over unfinished plain steel since it offers extended shelf-life protection against rusting

    Product Description

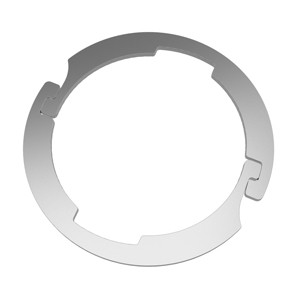

  • The LC ring is produced in two identical halves. The ends interlock into a groove on a shaft and, once assembled, are dynamically balanced. As a result, they are particularly effective at retaining assemblies with extremely high rotational speeds
  • With regards to the LC series retaining rings, only the black phosphate coated (LC-PA) rings are listed in this database, however other finishes are available upon special request

    Alternate Finishes Available:
  • (LC-H) Stainless Steel - PH 15-7 Mo is an extra strength corrosion-resistant stainless steel, capable of preventing atmospheric oxidation at temperatures up to 900ยบ F
  • (LC-ZD) Yellow Zinc Dichromate - It affords the metal excellent salt spray protection (96 hours) and is particularly effective for applications exposed to seawater. This retaining rings zinc plated finish utilizes a mechanical plating process which effectively eliminates hydrogen embrittlement
  • (LC-Z3X) Trivalent Chromate Zinc Plus Sealer
  • (LC-ZF) Clear Bright Zinc



     adobepdficon.png  DMR Retaining Rings



    •

    Product Videos

    Custom Field

    Alternate manufacturers numbers Waldes Truarc 5107-087
    Material finish Phosphate coating
    Ring material Carbon spring steel (SAE 1060-1090/UNS G10600-G10900)
    RoHS & ELV compliant Yes
    Size range .469 ~ 3.375"
    Recommendation The standard finish is recommended over unfinished plain steel since it offers extended shelf-life protection against rusting
