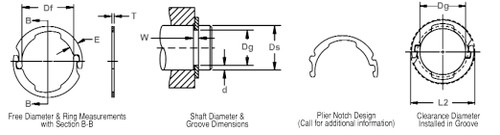

External SAE Phosphated Interlocking Retaining Ring LC-0075-PA

Overview
Reviews

Product Description

The LC ring is produced in two identical halves. The ends interlock into a groove on a shaft and, once assembled, are dynamically balanced. As a result, they are particularly effective at retaining assemblies with extremely high rotational speeds

With regards to the LC series retaining rings, only the black phosphate coated (LC-PA) rings are listed in this database, however other finishes are available upon special request

Alternate Finishes Available:

(LC-H) Stainless Steel - PH 15-7 Mo is an extra strength corrosion-resistant stainless steel, capable of preventing atmospheric oxidation at temperatures up to 900º F

(LC-ZD) Yellow Zinc Dichromate - It affords the metal excellent salt spray protection (96 hours) and is particularly effective for applications exposed to seawater. This retaining rings zinc plated finish utilizes a mechanical plating process which effectively eliminates hydrogen embrittlement

(LC-Z3X) Trivalent Chromate Zinc Plus Sealer

(LC-ZF) Clear Bright Zinc

DMR Retaining Rings

Product Videos

Custom Field

Alternate manufacturers numbers Waldes Truarc 5107-075

Material finish Phosphate coating

Ring material Carbon spring steel (SAE 1060-1090/UNS G10600-G10900)

RoHS & ELV compliant Yes

Size range .469 ~ 3.375"

Recommendation The standard finish is recommended over unfinished plain steel since it offers extended shelf-life protection against rusting
