External SAE Phosphated E-Clip Retaining Ring E-0025-PA

Overview
Reviews

Product Description

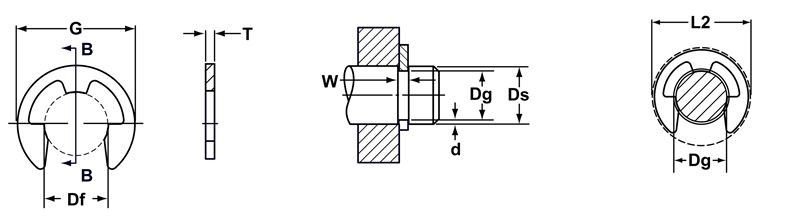

Perhaps the most popular and widely used radial retaining ring is the "E-clip" (So named because it is shaped like the letter "E") Three prongs make contact with the bottom of the groove and provide a shoulder for effective retention of assemblies

With regards to the E series retaining rings, only the black phosphate coated (E-PA) and stainless steel (E-H) rings are listed in this database, however other finishes are available upon special request

Alternate Finishes Available:

(E-ZD) Yellow Zinc Dichromate - It affords the metal excellent salt spray protection (96 hours) and is particularly effective for applications exposed to seawater. This retaining rings zinc plated finish utilizes a mechanical plating process which effectively eliminates hydrogen embrittlement

(E-Z3X) Trivalent Chromate Zinc Plus Sealer

(E-ZF) Clear Bright Zinc

DMR Retaining Rings

Product Videos

Custom Field

Alternate manufacturers numbers Waldes Truarc 5133-025 / Dynaline 22862 (10/pk) / Papco 268-514 (18/pk)

Material finish Phosphate coating

Ring material Carbon spring steel (SAE 1060-1090/UNS G10600-G10900)

RoHS & ELV compliant Yes

Size range .040 ~ 1.375"

Recommendation The standard finish is recommended over unfinished plain steel since it offers extended shelf-life protection against rusting
