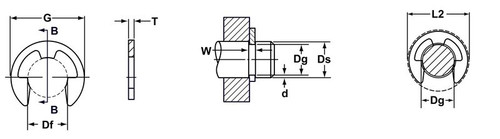

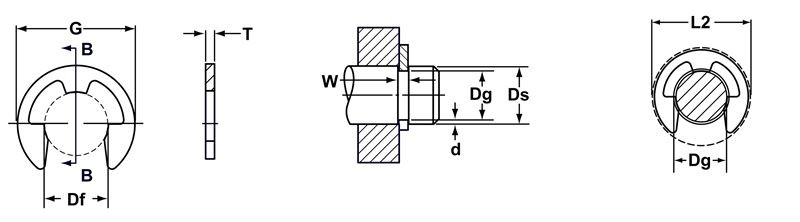

  • External SAE Phosphated E-Clip Retaining Ring E-0009-PA
  • External SAE Phosphated E-Clip Retaining Ring E-0009-PA
  • External SAE Phosphated E-Clip Retaining Ring E-0009-PA

    • External SAE Phosphated E-Clip Retaining Ring E-0009-PA

    DMR

    $0.00
    (No reviews yet) Write a Review
    SKU:
    DAE E-0009-PA
    Weight:
    0.00 LBS
    Alternate manufacturers numbers:
    Waldes Truarc 5133-009
    Material finish:
    Phosphate coating
    Ring material:
    Carbon spring steel (SAE 1060-1090/UNS G10600-G10900)
    RoHS & ELV compliant:
    Yes
    Size range:
    .040 ~ 1.375"
    Recommendation:
    The standard finish is recommended over unfinished plain steel since it offers extended shelf-life protection against rusting

    Product Description

  • Perhaps the most popular and widely used radial retaining ring is the "E-clip" (So named because it is shaped like the letter "E") Three prongs make contact with the bottom of the groove and provide a shoulder for effective retention of assemblies
  • With regards to the E series retaining rings, only the black phosphate coated (E-PA) and stainless steel (E-H) rings are listed in this database, however other finishes are available upon special request

    Alternate Finishes Available:
  • (E-ZD) Yellow Zinc Dichromate - It affords the metal excellent salt spray protection (96 hours) and is particularly effective for applications exposed to seawater. This retaining rings zinc plated finish utilizes a mechanical plating process which effectively eliminates hydrogen embrittlement
  • (E-Z3X) Trivalent Chromate Zinc Plus Sealer
  • (E-ZF) Clear Bright Zinc



     adobepdficon.png  DMR Retaining Rings



    •

    Product Videos

    Custom Field

    Alternate manufacturers numbers Waldes Truarc 5133-009
    Material finish Phosphate coating
    Ring material Carbon spring steel (SAE 1060-1090/UNS G10600-G10900)
    RoHS & ELV compliant Yes
    Size range .040 ~ 1.375"
    Recommendation The standard finish is recommended over unfinished plain steel since it offers extended shelf-life protection against rusting
