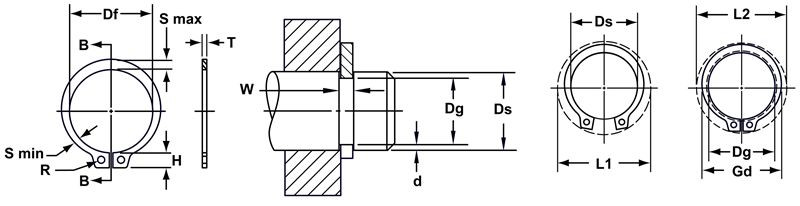

  • External SAE Phosphated Beveled Retaining Ring VSH-0850-PA
  • External SAE Phosphated Beveled Retaining Ring VSH-0850-PA
  • External SAE Phosphated Beveled Retaining Ring VSH-0850-PA

    • External SAE Phosphated Beveled Retaining Ring VSH-0850-PA

    DMR

    $0.00
    (No reviews yet) Write a Review
    SKU:
    DAE VSH-0850-PA
    Weight:
    0.00 LBS
    Alternate manufacturers numbers:
    Waldes Truarc 5102-850
    Material finish:
    Phosphate coating
    Ring material:
    Carbon spring steel (SAE 1060-1090/UNS G10600-G10900)
    RoHS & ELV compliant:
    Yes
    Size range:
    1.00 ~ 10.00"
    Recommendation:
    The standard finish is recommended over unfinished plain steel since it offers extended shelf-life protection against rusting

    Product Description

  • These rings look exactly like their SH counterpart except they have a 15º angle on the outer edge. This combines with a complementary groove angle to eliminate end play by wedging itself between the groove and the retained part
  • With regards to the VSH series retaining rings, only the black phosphate coated (VSH-PA) rings are listed in this database, however other finishes are available upon special request

    Alternate Finishes Available:
  • (VSH-H) Stainless Steel - PH 15-7 Mo is an extra strength corrosion-resistant stainless steel, capable of preventing atmospheric oxidation at temperatures up to 900º F
  • (VSH-ZD) Yellow Zinc Dichromate - It affords the metal excellent salt spray protection (96 hours) and is particularly effective for applications exposed to seawater. This retaining rings zinc plated finish utilizes a mechanical plating process which effectively eliminates hydrogen embrittlement
  • (VSH-Z3X) Trivalent Chromate Zinc Plus Sealer
  • (VSH-ZF) Clear Bright Zinc



     adobepdficon.png  DMR Retaining Rings



    •

    Product Videos

    Custom Field

    Alternate manufacturers numbers Waldes Truarc 5102-850
    Material finish Phosphate coating
    Ring material Carbon spring steel (SAE 1060-1090/UNS G10600-G10900)
    RoHS & ELV compliant Yes
    Size range 1.00 ~ 10.00"
    Recommendation The standard finish is recommended over unfinished plain steel since it offers extended shelf-life protection against rusting
