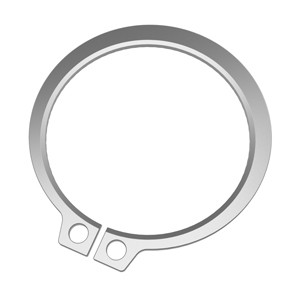

External SAE Phosphated Beveled Retaining Ring VSH-0150-PA

Overview
Reviews

Product Description

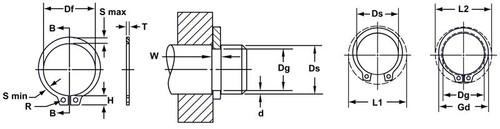

These rings look exactly like their SH counterpart except they have a 15º angle on the outer edge. This combines with a complementary groove angle to eliminate end play by wedging itself between the groove and the retained part

With regards to the VSH series retaining rings, only the black phosphate coated (VSH-PA) rings are listed in this database, however other finishes are available upon special request

Alternate Finishes Available:

(VSH-H) Stainless Steel - PH 15-7 Mo is an extra strength corrosion-resistant stainless steel, capable of preventing atmospheric oxidation at temperatures up to 900º F

(VSH-ZD) Yellow Zinc Dichromate - It affords the metal excellent salt spray protection (96 hours) and is particularly effective for applications exposed to seawater. This retaining rings zinc plated finish utilizes a mechanical plating process which effectively eliminates hydrogen embrittlement

(VSH-Z3X) Trivalent Chromate Zinc Plus Sealer

(VSH-ZF) Clear Bright Zinc

DMR Retaining Rings

Product Videos

Custom Field

Alternate manufacturers numbers Waldes Truarc 5102-150

Material finish Phosphate coating

Ring material Carbon spring steel (SAE 1060-1090/UNS G10600-G10900)

RoHS & ELV compliant Yes

Size range 1.00 ~ 10.00"

Recommendation The standard finish is recommended over unfinished plain steel since it offers extended shelf-life protection against rusting
