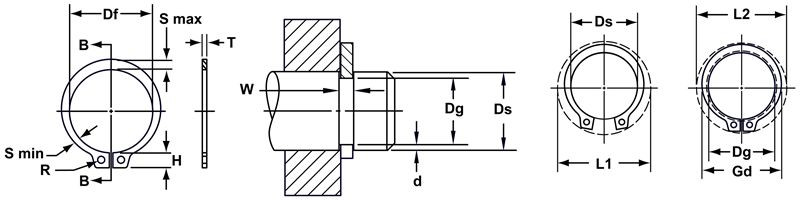

  • External Metric Phosphated Standard Retaining Ring DSH-335-PA
  • External Metric Phosphated Standard Retaining Ring DSH-335-PA
  • External Metric Phosphated Standard Retaining Ring DSH-335-PA

    • External Metric Phosphated Standard Retaining Ring DSH-335-PA

    DMR

    $0.00
    (No reviews yet) Write a Review
    SKU:
    DAE DSH-335-PA
    Weight:
    0.00 LBS
    Material finish:
    Phosphate coating
    Ring material:
    Carbon spring steel (SAE 1060-1090/UNS G10600-G10900)
    RoHS & ELV compliant:
    Yes
    Size range:
    3.00 ~ 400.00 mm
    *Note:
    The radius "R" on the load side must not exceed 0.1 T
    Classification:
    DIN-471/D1400 (DSH)
    Recommendation:
    The standard finish is recommended over unfinished plain steel since it offers an extended shelf-life protection against rusting

    Product Description

    With regards to the DSH series retaining rings, only the black phosphate coated (DSH-PA) and stainless steel (DSH-H) rings are listed in this database, however other finishes are available upon special request

    Alternate Finishes Available:

  • (DSH-ZD) Yellow Zinc Dichromate - It affords the metal excellent salt spray protection (96 hours) and is particularly effective for applications exposed to seawater. This retaining rings zinc plated finish utilizes a mechanical plating process which effectively eliminates hydrogen embrittlement
  • (DSH-Z3X) Trivalent Chromate Zinc Plus Sealer
  • (DSH-ZF) Clear Bright Zinc



     adobepdficon.png  DMR Retaining Rings



    •

    Product Videos

    Custom Field

    Material finish Phosphate coating
    Ring material Carbon spring steel (SAE 1060-1090/UNS G10600-G10900)
    RoHS & ELV compliant Yes
    Size range 3.00 ~ 400.00 mm
    *Note The radius "R" on the load side must not exceed 0.1 T
    Classification DIN-471/D1400 (DSH)
    Recommendation The standard finish is recommended over unfinished plain steel since it offers an extended shelf-life protection against rusting
