Product Description
With regards to the DC series retaining rings, only the black phosphate coated (DSH-PA) rings are listed in this database, however other finishes are available upon special request
Alternate Finishes Available:
(DC-H) Stainless Steel - PH 15-7 Mo is an extra strength corrosion-resistant stainless steel, capable of preventing atmospheric oxidation at temperatures up to 900º F(DC-ZD) Yellow Zinc Dichromate - It affords the metal excellent salt spray protection (96 hours) and is particularly effective for applications exposed to seawater. This retaining rings zinc plated finish utilizes a mechanical plating process which effectively eliminates hydrogen embrittlement(DC-Z3X) Trivalent Chromate Zinc Plus Sealer(DC-ZF) Clear Bright Zinc

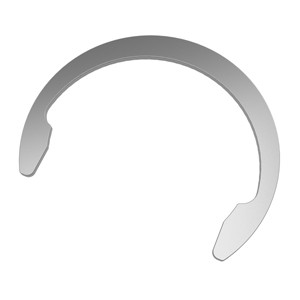

DMR Retaining Rings
Material finish
Material finish Phosphate coating
Ring material Carbon spring steel (SAE 1060-1090/UNS G10600-G10900)
RoHS & ELV compliant Yes
Size range 3.00 ~ 55.00 mm

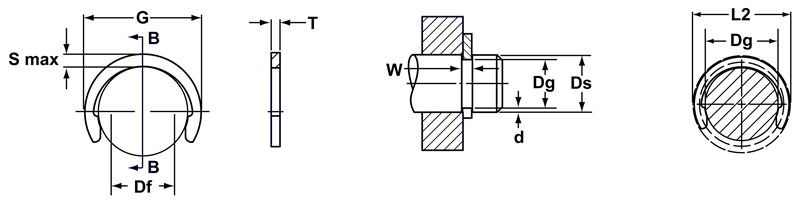

*Note The radius "R" on the load side must not exceed 0.1 T
Recommendation The standard finish is recommended over unfinished plain steel since it offers an extended shelf-life protection against rusting
